Product Description:
The 1kV silicone rubber suspension composite insulator is a low-voltage hanging insulation device made of high-temperature vulcanized silicone rubber (HTV). Specifically designed for 1kV and below power distribution systems, it combines the lightweight and weather-resistant advantages of composite materials with the mechanical flexibility of a suspension structure. Ideal for harsh environments such as overhead lines and rail transit systems, it serves as a superior alternative to traditional porcelain suspension insulators.
Main Features:
1. Outstanding Electrical Performance
2. Exceptional Environmental Adaptability
3. Mechanical and Structural Advantages
4. Cost-Effectiveness & Low Maintenance
Application Scenarios:
1. Harsh Environment Power Distribution:Coastal, desert, and industrial-polluted areas for 1kV overhead lines.
2. Rail Transit:Auxiliary lines in metro catenary systems, low-voltage suspension in tunnels.
3. New Energy:DC side of photovoltaic power stations, wiring inside wind turbine towers.
4. Temporary Power Supply:Construction sites, agricultural irrigation, and other rapid-deployment scenarios.
Technical Standards & Certifications:
1.Compliant with “IEC 60383” and “GB/T 1001.1” standards.
2.Tested for “Salt Fog Resistance (IEC 62217)” and “UV Aging (ASTM G154)”.
Parameter：
Name: Polymer Suspension Insulator
Min Dry Arcing Distance(mm): 115
Min Creepage Distance(mm): 225
Specified Mechanical Load(SML): 70kN
Rated Voltage(kV): 1kV
Colour: grey, red, white or customized
Specifications:
Product Type | Dimensions | Mechanical | Electrical | ||||||||
Height | Mini Dry | Mini | Diameter | Number of | Diameter | Specified | Routine | Rated Voltage | Lightning | Power | |
FXBW-1/70 | 280 ±10 | 115 | 225 | 18 | 2 | 98 | 70 | 35 | 1 | 45 | 20 |
Order Information: | |||||||||||

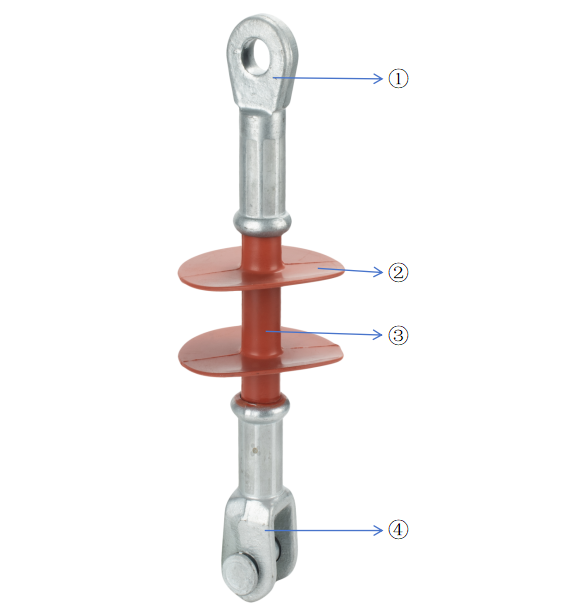

① End Fitting type: Tongue & Clevis
Forged steel and hot dip galvanized,minimum thinkness of the galvanization:86µm
② The thickness of silicone rubber housing is more than 3mm,it is in accordance with IEC standard.
③ The acid-resistance,high terperature-resistance core rod use the materials epoxy & glassfiber.
④ End fitting type: Clevis
Forged steel and hot dip galvanized, minimum thinkness of the galvanization:86µm

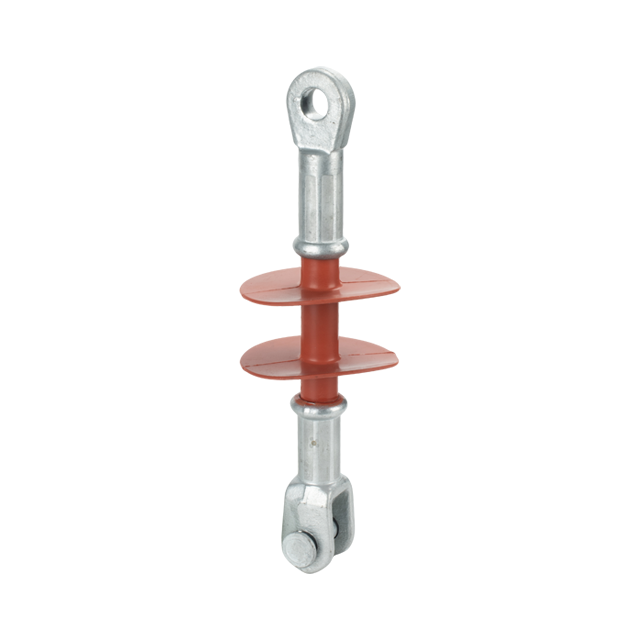

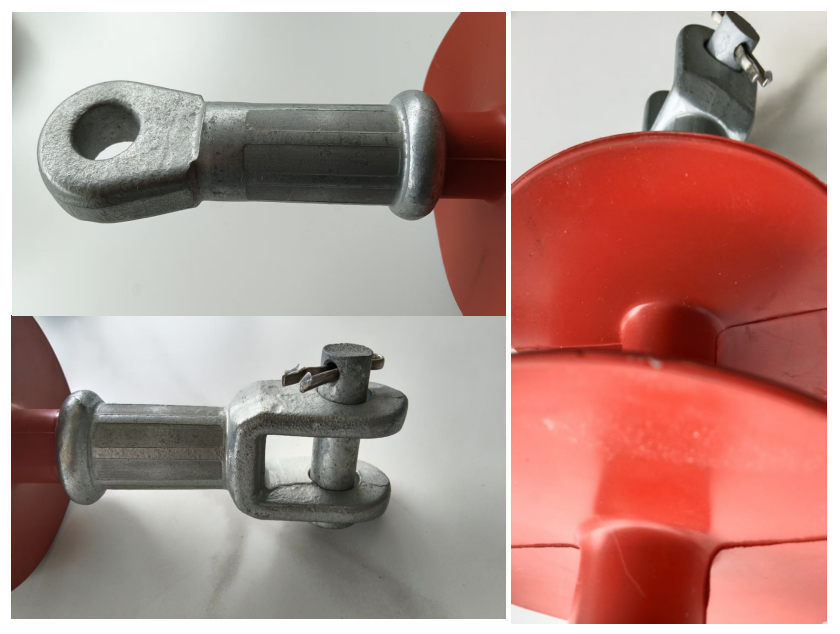

Product physical image:
Two Ends Of Connecting Hardware List
| Attachedto the letter | WQ | WD | WU | CT | TT | UU | YQ | RR | |
| On behalfof fittings | Socket -Ball | Socket -Tongue | Socket- Clevis | Ball- Bal | Clevis-Tongue | Tongue-Tongue | Clevis- Clevis | Y-Ball | Ring-Ring |
| Connectionmark | 16-16 | 16-7 | 16-7 | 16-16 | 7-7 | 7-7 | 7-7 | 7-7 | 7-7 |
1. According to the requirements of hardware in models are indicated in the attached letter;
2. According to the requirements of users can formulate and match ends fitting;
3. Silicone rubber color gray as the default,can also choose the other colors.
4. Custom made according to customer's drawings
