24KV Silicone Suspension Insulator

Introduction:

The 24kV suspension composite insulator is a high-performance insulation component designed for overhead power transmission and distribution systems. It features a ball-and-socket connection mechanism, a uniform gray silicone rubber housing, and five evenly spaced sheds. With a mechanical load capacity of 40kN and a creepage distance of 680mm, it ensures reliable operation in challenging environmental conditions, such as polluted or humid areas. This composite tension insulator combines advanced materials and precision engineering to deliver exceptional electrical insulation, mechanical strength, and long-term durability.

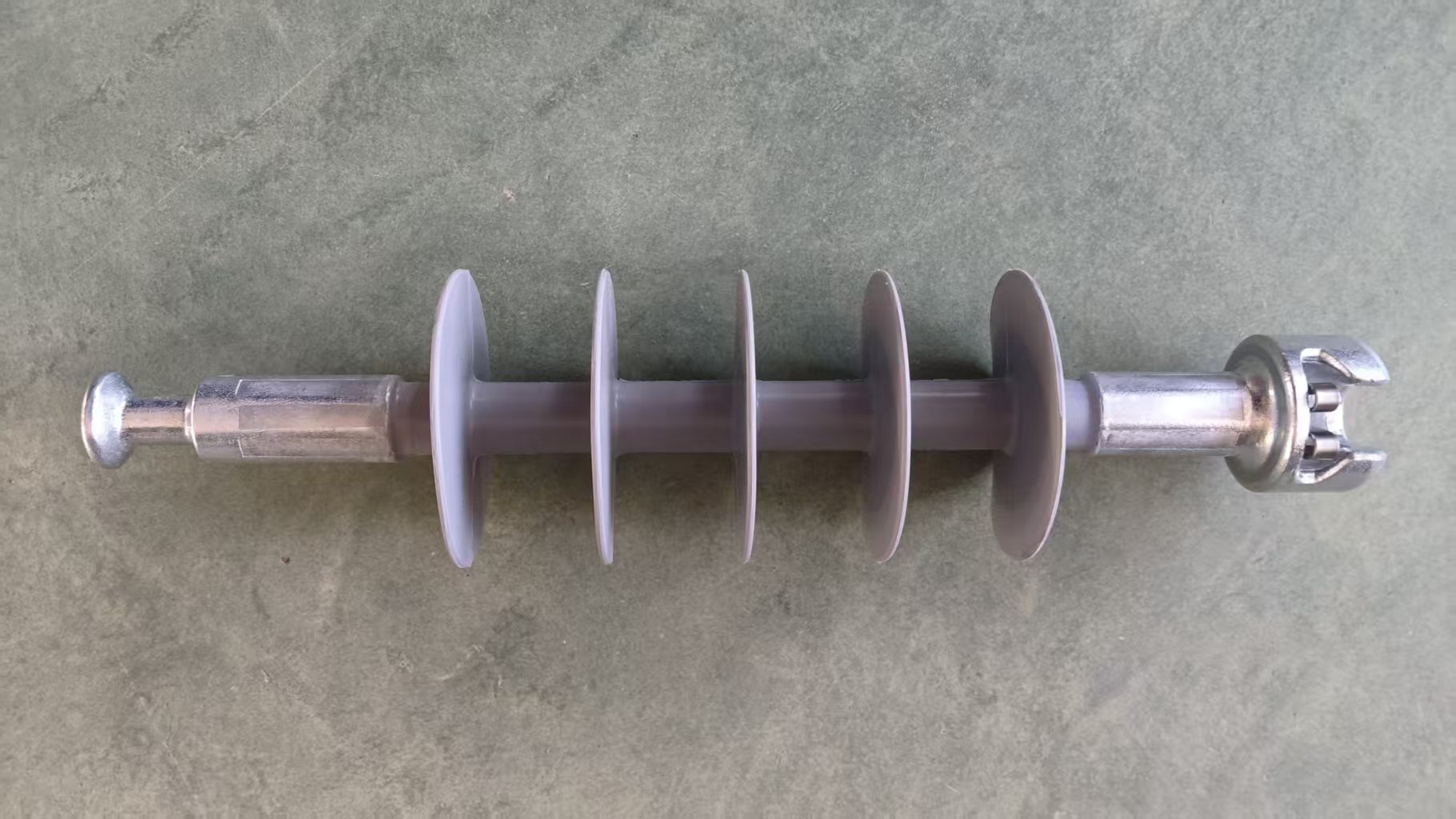

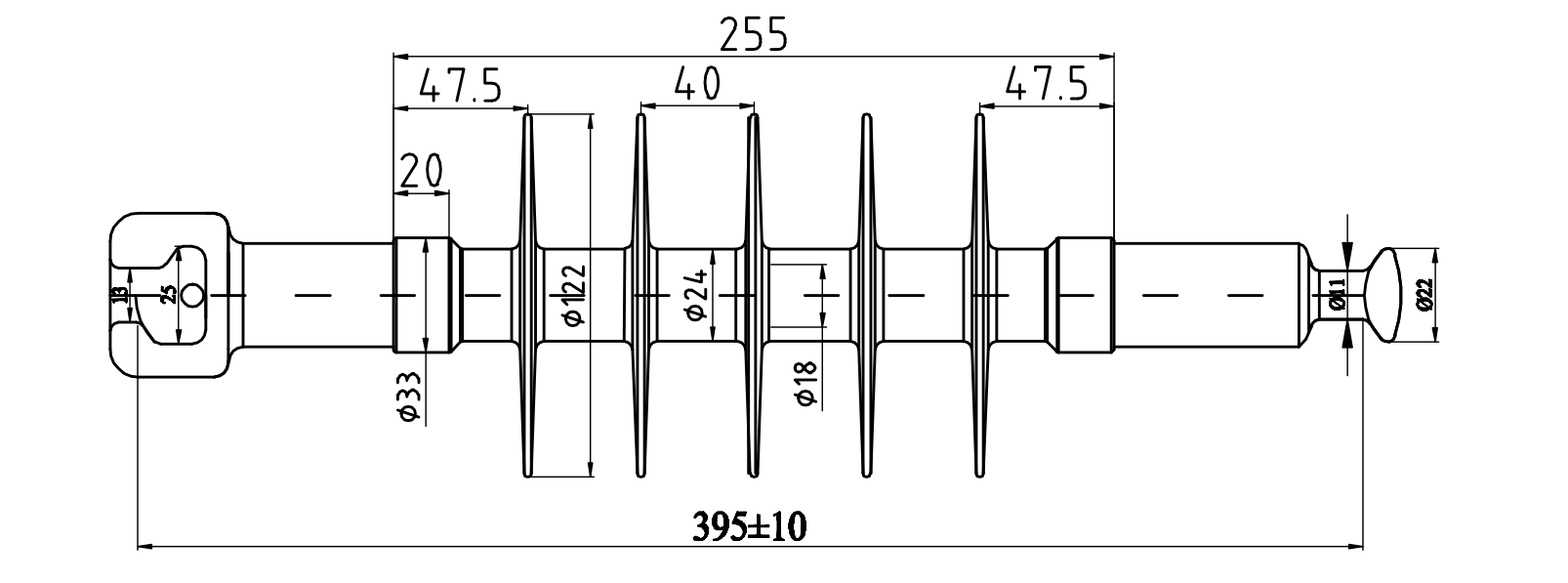

Drawings:

Specifications:

Product Type	Dimensions						Mechanical		Electrical
	Height (mm)	Mini Dry Arcing Distance (mm)	Mini Creepage Distance (mm)	Diameter of sheds (mm)	Number of sheds (mm)	Diameter of sheds (mm)	Specified Mechanical load(SML) (kN)	Routine Test Load(RTL) (kN)	Rated Voltage (kV)	Lightning Impulse withstand Voltage (kV)	Power Frequency withstand Voltage (kV)
FXBW-24-40	405 ±10	280	680	18	5	120	40	20	24	230	75
Order Information: 1. Voltage grade 2. Mechanical load 3.Arcing distance  4. Creepage distance  5.Section length 6. End fittings type Remark:  We accept product customization according to customers' drawings

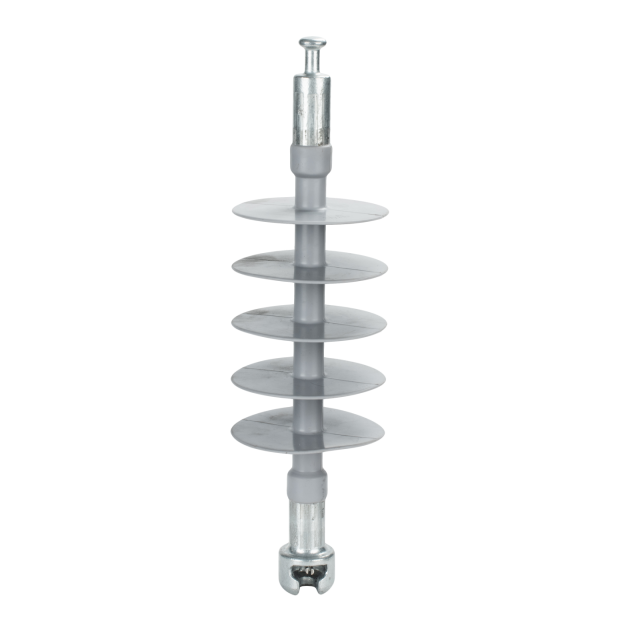

Product Parts Display:

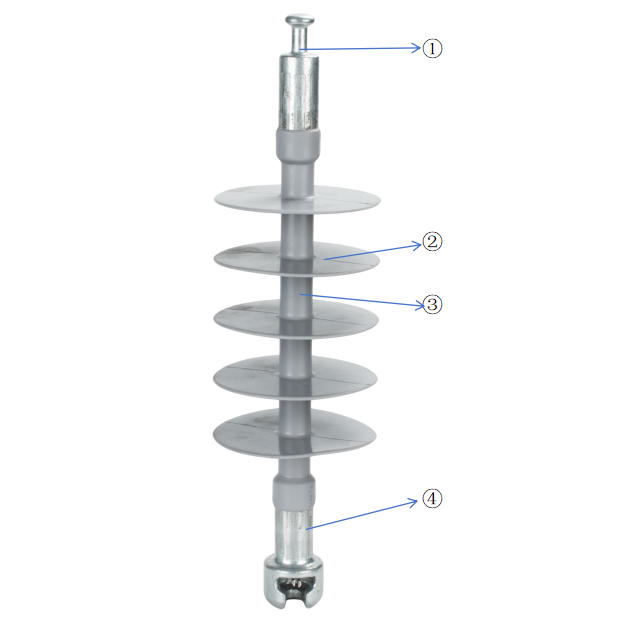

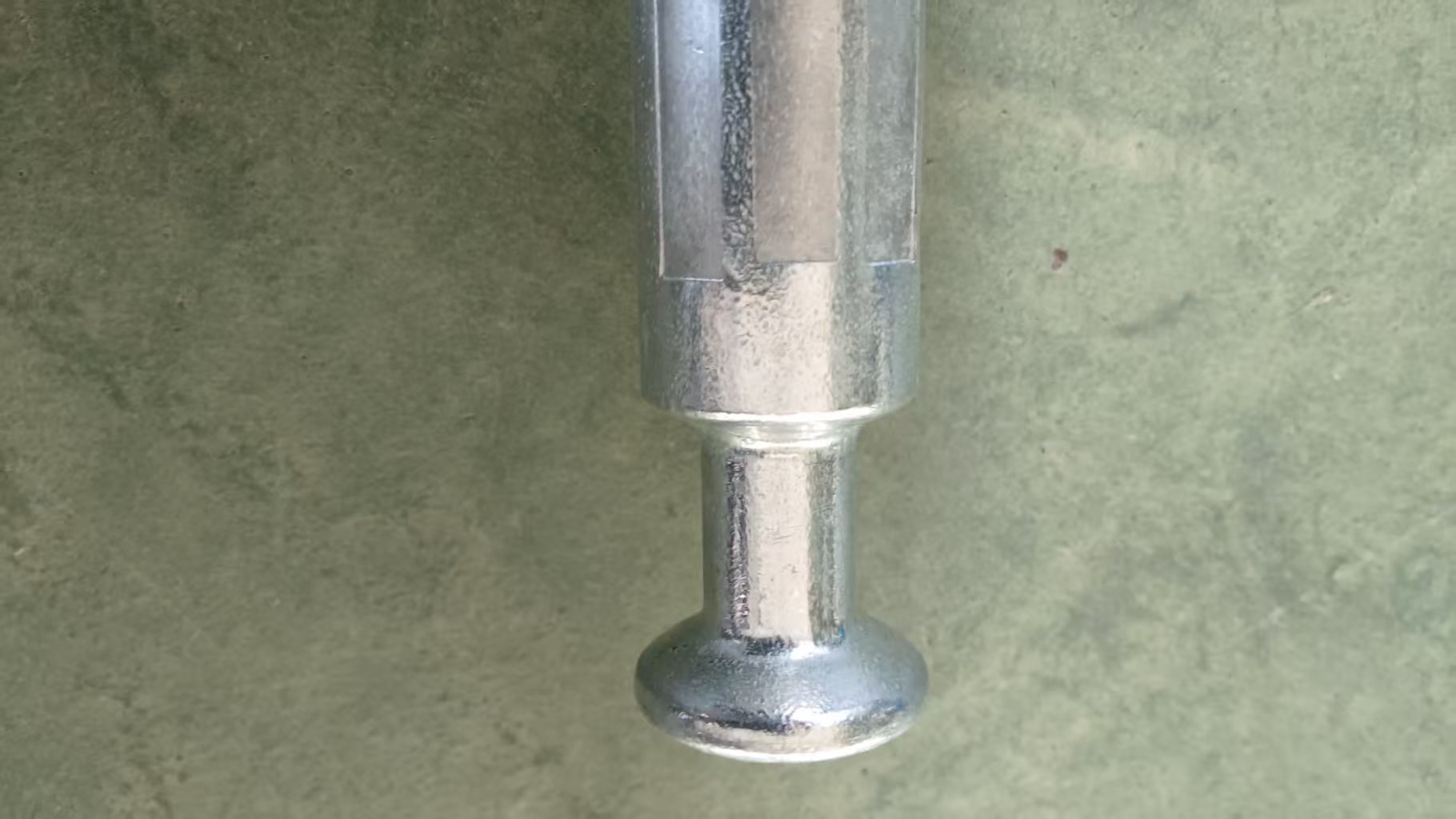

① End Fitting type: Ball

Forged steel and hot dip galvanized,minimum thinkness of the galvanization:86µm

② The thickness of silicone rubber housing is more than 3mm,it is in accordance with IEC standard.

③ The acid-resistance,high terperature-resistance core rod use the materials epoxy & glassfiber.

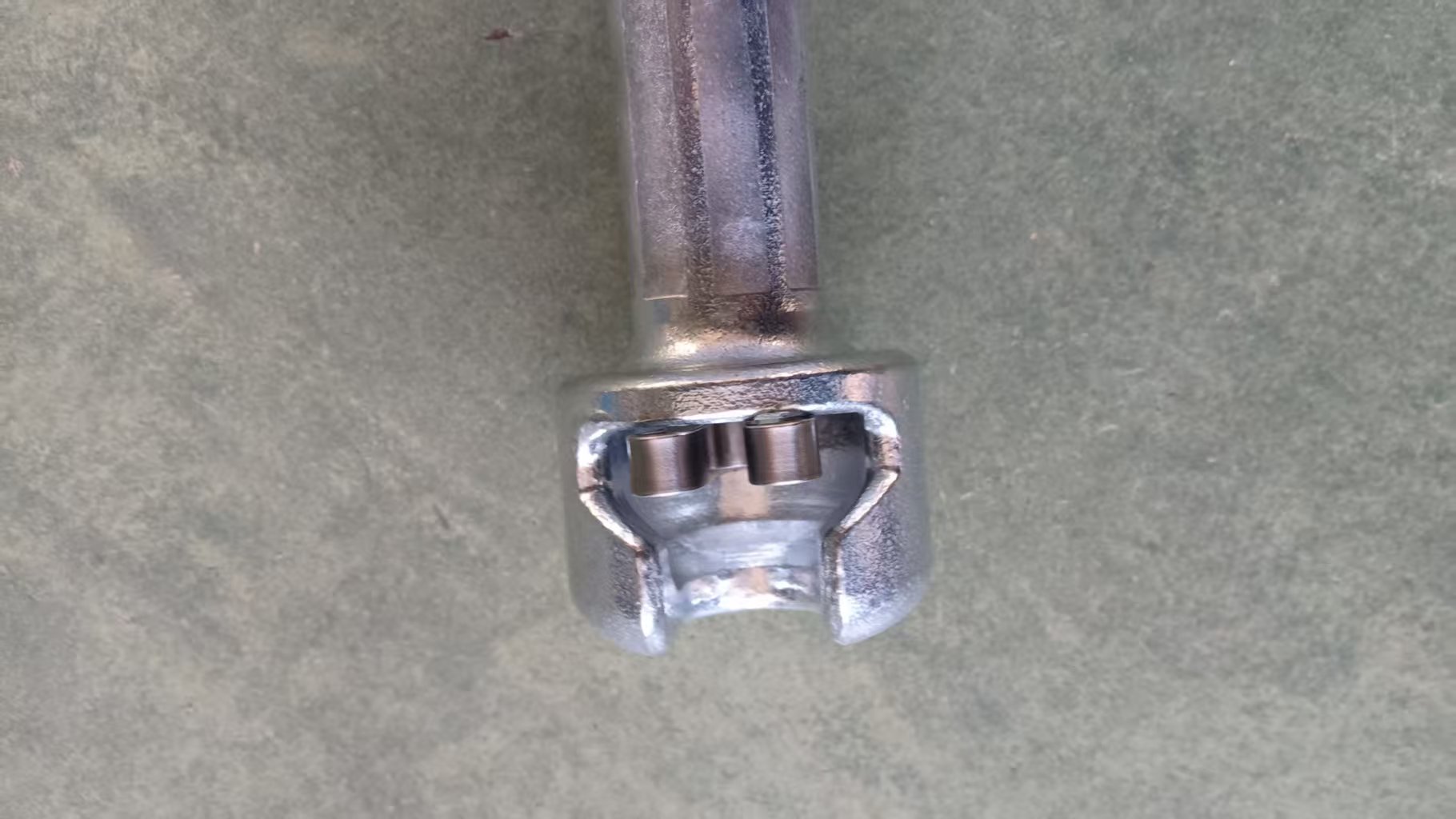

④ End fitting type: Socket

Forged steel and hot dip galvanized, minimum thinkness of the galvanization:86µm

Key Features:

This transmission line insulator have a lot of key features as below:

High Mechanical Strength: Capable of withstanding 40kN tensile loads, ensuring structural integrity under mechanical stress.

Optimized Creepage Distance: 680mm of creepage distance provides enhanced protection against surface flashovers, even in contaminated environments.

Advanced Material Composition: Composed of a high-strength fiberglass rod, silicone rubber housing, and metal end fittings (ball-and-socket type), offering excellent hydrophobicity, UV resistance, and aging performance.

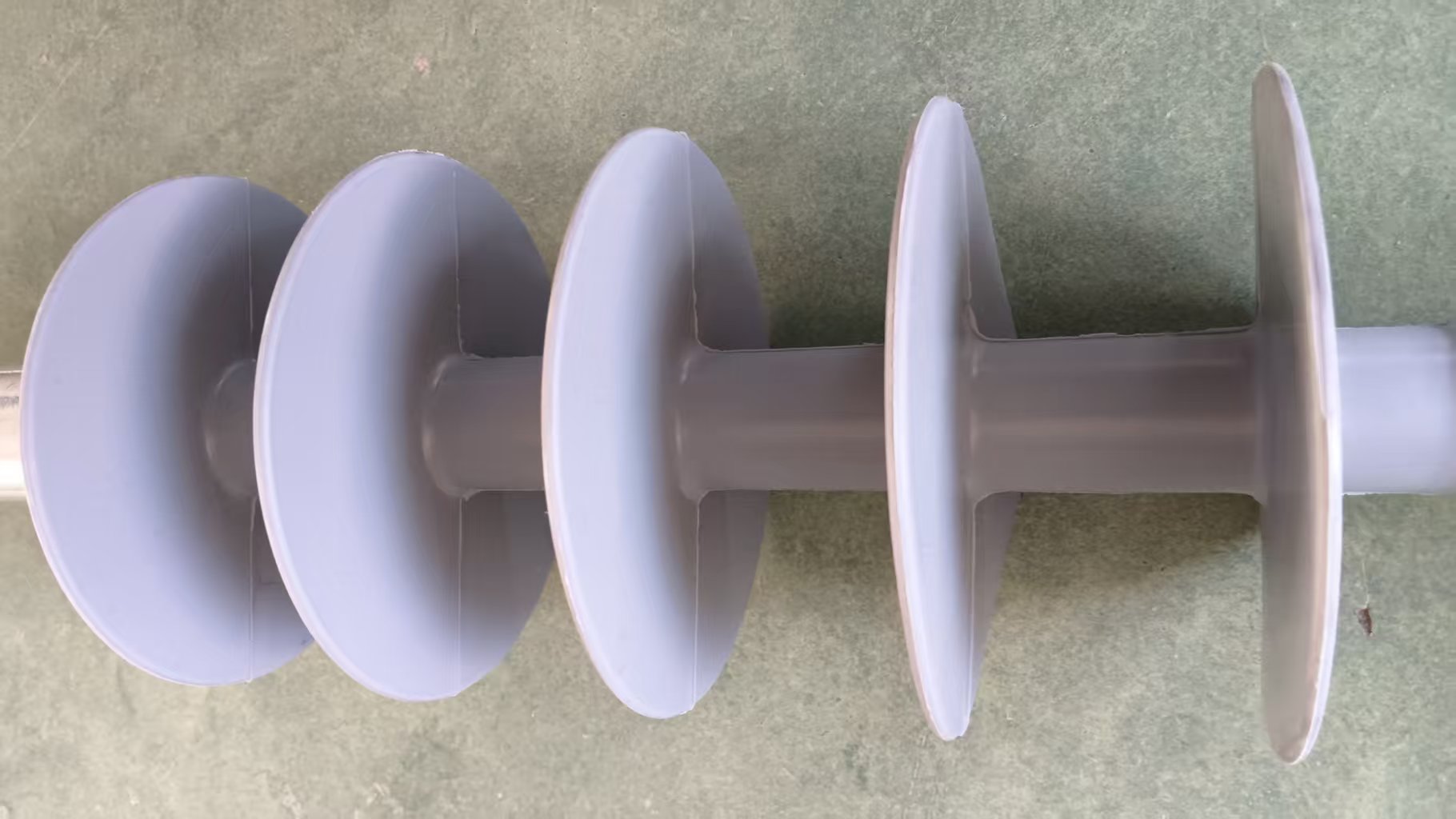

Uniform Shed Design: Five equally spaced sheds prevent water accumulation and improve pollution resistance.

Superior Electrical Performance: Graded insulation and a streamlined profile reduce electric field concentration, minimizing partial discharge risks.

Corrosion-Resistant Metal Fittings: The metal ends are designed for durability and secure connections to transmission lines or substation hardware.

Production Process:

Material Preparation: High-strength fiberglass rods, high-temperature vulcanized (HTV) silicone rubber, and galvanized or forged metal fittings (ball-and-socket type) are inspected and prepared.

Injection Molding: The fiberglass rod is placed in a precision mold, and liquid silicone rubber is injected under controlled pressure and temperature to form the housing and sheds.

Vulcanization: The molded insulator undergoes a curing process to enhance the bonding between the silicone rubber, fiberglass rod, and metal fittings, ensuring a seamless, void-free interface.

Automated Assembly: Metal fittings are securely attached to both ends via compression or adhesive bonding, followed by quality checks for alignment and mechanical strength.

Surface Treatment & Testing: The silicone insulator undergoes hydrophobicity tests, mechanical load tests (up to 40kN), electrical performance tests (including impulse withstand and pollution tests), and final visual inspection.

Application Scenarios:

This high voltage composite insulator can be applied to many scenarios.

Overhead Power Lines: Used on 24kV distribution lines in coastal, industrial, or dusty areas where pollution resistance is critical.

Substation Equipment: Installed in switchgear, busbars, or transformer connections to prevent flashovers in contaminated or humid environments.

Renewable Energy Projects: Suitable for wind or solar farm grid connections, especially in regions with high salinity or chemical exposure.

Railway Electrification: Provides insulation for catenary systems in railways, ensuring reliability under vibration and weather variations.

Retrofitting Aging Infrastructure: Replaces porcelain or glass insulators in existing networks to enhance performance with lower maintenance needs.

Advantages in Service:

Maintains hydrophobicity even after prolonged exposure to moisture, reducing leakage current.

Lightweight yet robust design simplifies installation and minimizes tower load.

Resists cracking, chipping, and degradation from UV radiation or temperature cycles.

The ball-and-socket connection allows for flexible alignment during installation, reducing mechanical stress.

Two Ends Of Connecting Hardware List

Attachedto the letter	WQ	WD	WU	QQ	CT	TT	UU	YQ	RR
On behalfof fittings	Socket -Ball	Socket -Tongue	Socket- Clevis	Ball- Bal	Clevis-Tongue	Tongue-Tongue	Clevis- Clevis	Y-Ball	Ring-Ring
Connectionmark	16-16	16-7	16-7	16-16	7-7	7-7	7-7	7-7	7-7

1. According to the requirements of hardware in models are indicated in the attached letter;

2. According to the requirements of users can formulate and match ends fitting;

3. Silicone rubber color gray as the default,can also choose the other colors.

4. Custom made according to customer's drawings
