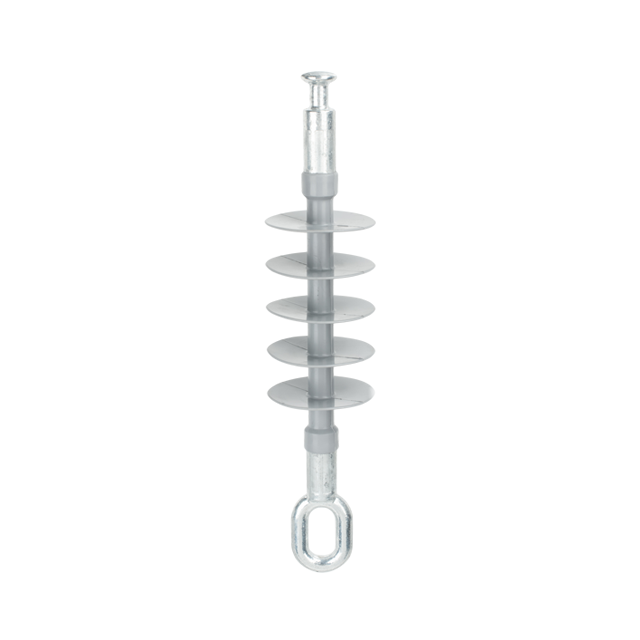

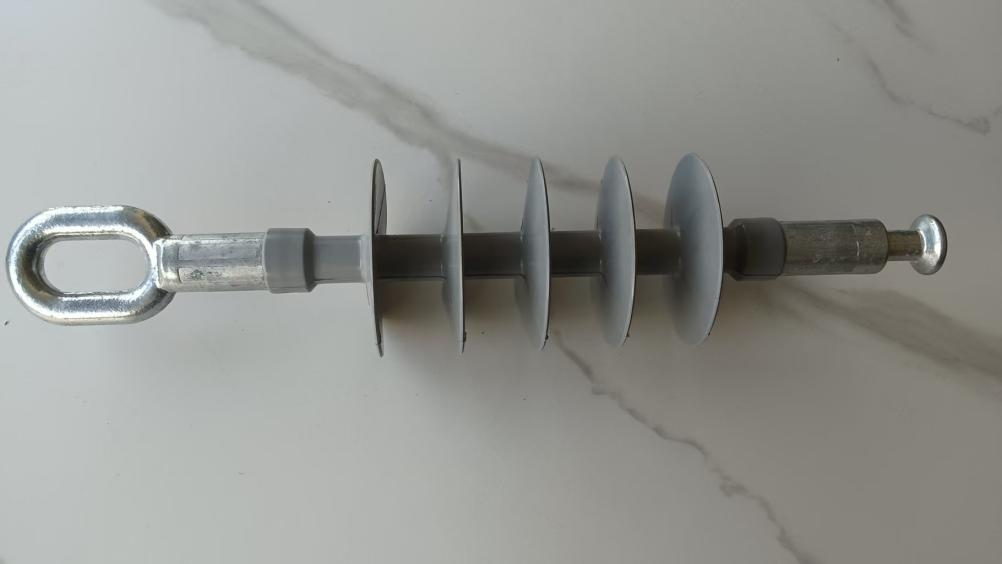

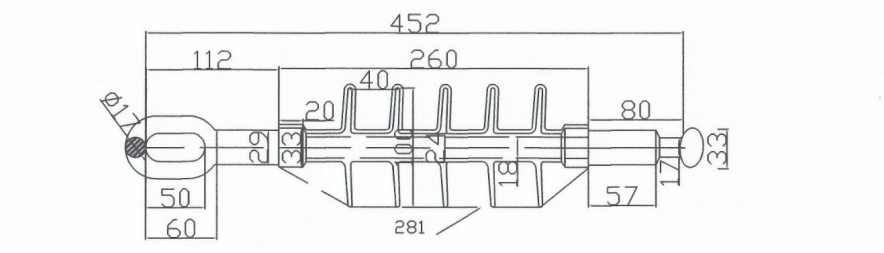

Name: Silicone Rubber Suspension Insulator, is also named Polymer Tension Insulator, Composite Suspension Insulator, Composite Tension Silicone Insulator.
Product Type: FXB-15-70OQ-543mm
End fittings: Ring & Ball
Height(mm): 435 ± 10
Min Dry Arcing Distance(mm): 200
Min Creepage Distance(mm): 543
Diameter of the rod(mm): 98
Number of sheds: 5
Sheds of diameter(mm):
Specified Mechanical Load(SML): 70kN
Routine Test Load (RTL): 35kN
Rated Voltage(kV): 15
Lightning Impulse Withstand Voltage(kV): 105
Power Frequency Withstand Voltage(kV): 55
Main Features:
1. Materials & Construction:
Silicone Rubber Housing:Provides excellent hydrophobicity, UV resistance, and pollution resistance, preventing flashovers in wet or contaminated environments.

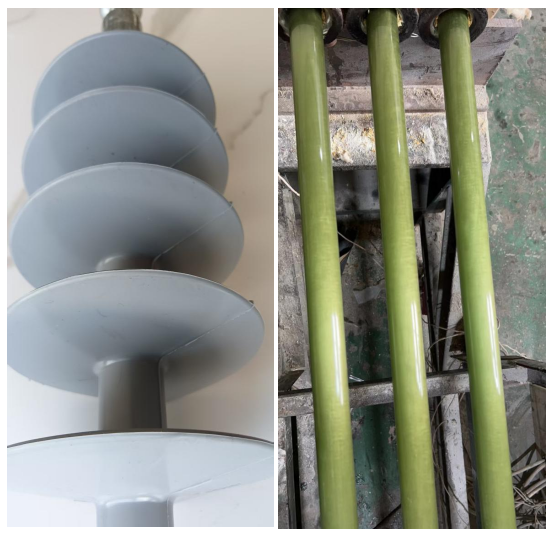

Fiberglass-Reinforced Epoxy Core:Ensures high mechanical strength (70kN) and resistance to bending stresses.
2. Connection Type:

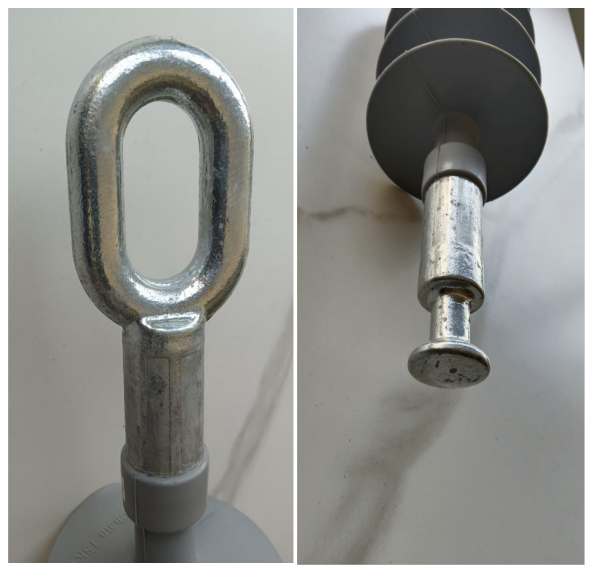

One end:Ball head (male fitting)for secure, swiveling attachment.
Other end:Round eye (socket fitting) for easy connection to suspension clamps or crossarms.
Designed for quick installation and flexibility in tension systems.
3. Electrical & Mechanical Performance:
Rated Voltage:15kV
Mechanical Load Rating:70kN (compliant with IEC, ANSI, or GB standards)
Creepage Distance:Optimized by the 5-shed design to prevent tracking and leakage currents.
Lightning & Pollution Resistance:Ideal for areas with high contamination (industrial, coastal, or desert regions).
4. Design Advantages:
Gray Silicone:Resists tracking and erosion better than traditional porcelain.
Lightweight:Easier to handle and install compared to ceramic insulators.
Corrosion-Resistant Metal Fittings:Zinc-coated or stainless steel for durability.
Typical Applications:
1. Overhead Distribution Lines (15kV Class):
Used in **rural electrification, urban power networks, and industrial power lines where
pollution or salt fog is a concern.
2. Railway Electrification Systems:
Suitable for catenary suspension in railway overhead lines due to its vibration
resistance and mechanical reliability.
3. Renewable Energy Projects:
Commonly applied in solar farm grid connections and wind farm collector line where lightweight and pollution resistance are critical.
4. Harsh Environments:
Coastal zones (salt fog)
Industrial areas (chemical pollution)
Desert regions (sand and dust)
5. Temporary Power Installations:
Used in emergency power restoration due to quick installation and durability.
Why Choose This Insulator?
Longer service life than porcelain insulators.
Maintenance-free performance due to silicone’s self-cleaning properties.
Cost-effective over time with reduced replacement needs.
Two Ends Of Connecting Hardware List
| Attachedto the letter | WQ | WD | WU | CT | TT | UU | YQ | RR | |
| On behalfof fittings | Socket -Ball | Socket -Tongue | Socket- Clevis | Ball- Bal | Clevis-Tongue | Tongue-Tongue | Clevis- Clevis | Y-Ball | Ring-Ring |
| Connectionmark | 16-16 | 16-7 | 16-7 | 16-16 | 7-7 | 7-7 | 7-7 | 7-7 | 7-7 |
1. According to the requirements of hardware in models are indicated in the attached letter;
2. According to the requirements of users can formulate and match ends fitting;
3. Silicone rubber color gray as the default,can also choose the other colors.
4. Custom made according to customer's drawings
