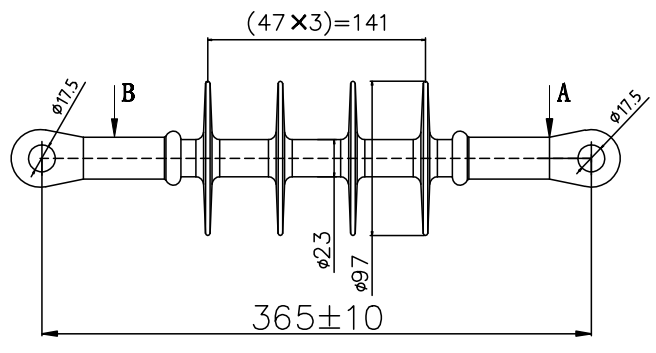

Product Type | Dimensions | Mechanical | Electrical | ||||||||
Height | Mini Dry | Mini | Diameter | Number of | Diameter | Specified | Routine | Rated Voltage | Lightning | Power | |
FXB-15-70CC | 365 ±10 | 200 | 450 | 17 | 4 | 98 | 70 | 35 | 15 | 105 | 55 |
Order Information: | |||||||||||

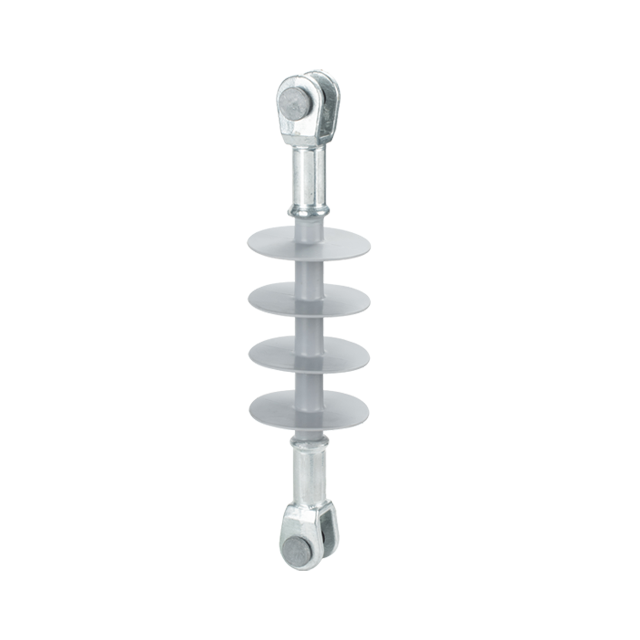

The 15kV Silicone Rubber Suspension Insulator (Model: FXB-15-70CC) is built for heavy conductor loads— a gap in standard suspension insulators— with a specified mechanical load (SML) of 70kN (≈7,000 kgf). It features a fiberglass composite core (35kN routine test load), six pollution-resistant silicone rubber sheds (98mm diameter), and double clevis end fittings (hot-dip galvanized, ≥86μm). At 365±10mm tall (200mm dry arcing distance, 450mm creepage distance), it’s designed for 15kV overhead transmission lines, substations, and industrial high-voltage systems.
High-Tensile Composite Core: Withstands 70kN SML, supporting heavy conductors (e.g., 2500kcmil ACSR) in long-distance transmission lines.
Six Silicone Sheds: Hydrophobic and self-cleaning, reducing surface contamination buildup— critical for industrial or agricultural areas.
Dual clevis end fittings enable flexible attachment to crossarms, towers, or hardware, simplifying alignment and reducing installation time by 30%.
Ideal for long-distance lines with heavy conductors, its 70kN load capacity prevents insulator failure under wind gusts or ice accumulation.
Hot-dip galvanized fittings resist railway-induced corrosion, while the vibration-resistant core ensures reliable insulation for electric train power.
High dielectric strength protects against electromagnetic interference (EMI) from manufacturing equipment, ensuring stable power for steel, chemical, and mining plants.
Global Standard Compliance: Meets IEC/ANSI standards for composite suspension insulators; provides detailed mechanical/electrical test reports.
Custom Shed & Fittings: Offers custom shed diameters and end-fitting types for high-altitude (low air pressure) or heavy-pollution projects.
Long-Term Support: 7-year warranty + on-site installation training; provides maintenance recommendations to extend service life to 25+ years.

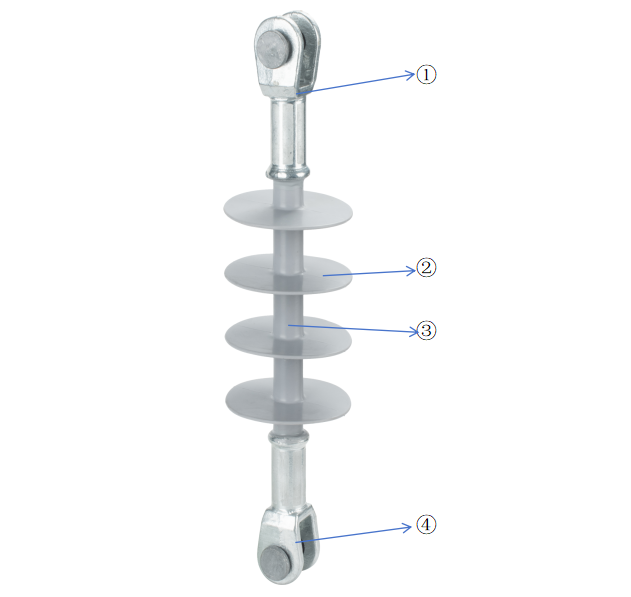

① End Fitting type: Clevis
Forged steel and hot dip galvanized,minimum thinkness of the galvanization:86µm
② The thickness of silicone rubber housing is more than 3mm,it is in accordance with IEC standard.
③ The acid-resistance,high terperature-resistance core rod use the materials epoxy & glassfiber.
④ End fitting type: Clevis
Forged steel and hot dip galvanized, minimum thinkness of the galvanization:86µm
