Composite suspension insulator technology represents the pinnacle of modern electrical insulation engineering, delivering superior performance for high-voltage transmission systems worldwide. As a specialized manufacturer, Langao Power produces advanced composite suspension insulator solutions that exceed traditional porcelain and glass alternatives in durability, reliability, and environmental resistance.
Product Specifications & Technical Excellence
Our FXBW type insulator series encompasses comprehensive voltage ratings including 66kv suspension insulator, 110kv suspension insulator, and 220kv suspension insulator configurations. Key models include FXBW-66/70 with 70kN mechanical load and 1850mm creepage distance, FXBW-110/100 offering 100kN strength with 3100mm creepage, and FXBW-220/160 providing 160kN capacity with 5500mm creepage distance for ultra-high voltage applications.

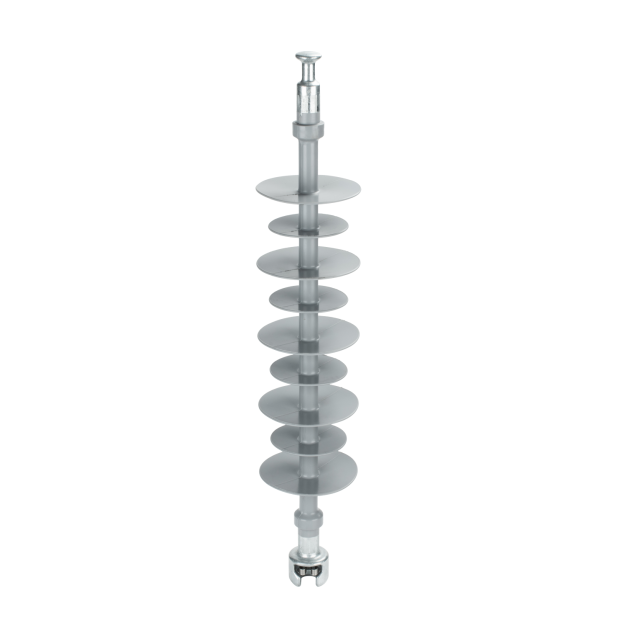

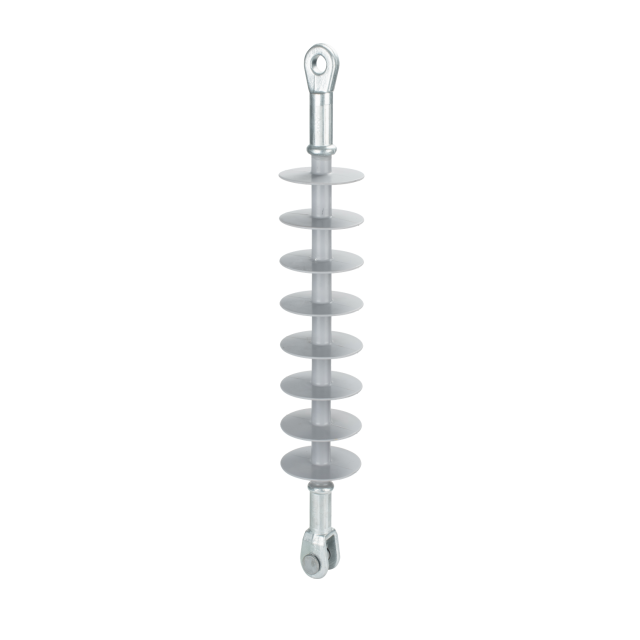

Each composite suspension insulator features premium silicone rubber housing over high-strength fiberglass core rods, providing exceptional mechanical loads ranging from 70kN to 300kN. Our products meet IEC 61109, ANSI C29.11, and AS 1307.2 international standards, ensuring global compatibility and reliability.
Advanced Application Solutions
Transmission Line Performance
Our transmission line insulator and overhead line insulator solutions excel in long-span applications where mechanical reliability is critical. The lightweight design reduces tower loading by 40% compared to ceramic alternatives while maintaining superior electrical performance across all voltage classes.
Environmental Adaptability
Composite suspension insulator technology demonstrates outstanding performance in challenging environments including coastal regions with superior salt fog resistance through hydrophobic surface properties, industrial zones with enhanced pollution flashover performance via optimized creepage design, and high altitude installations with proven reliability at elevations exceeding 4,000 meters.
Technical Advantages Over Traditional Solutions
The silicone rubber housing provides self-cleaning hydrophobic properties, eliminating the brittleness issues common in porcelain units. Our fiberglass core construction delivers 25% higher tensile strength than steel-core alternatives while maintaining excellent fatigue resistance. Key performance benefits include anti-tracking properties with superior resistance to electrical tracking and erosion, UV stability providing 30+ year service life with minimal degradation, and vandal resistance through shatterproof construction for enhanced security.
Specialized Configurations
Beyond standard suspension applications, our range includes deadend insulator and tension insulator variants for line termination and angle structures. These specialized designs handle combined mechanical and electrical stresses in critical transmission system locations where standard suspension configurations are insufficient.
Global Project Experience
Langao Power's composite suspension insulator solutions serve major utilities across 50+ countries, with successful installations exceeding 2 million units in service. Notable applications include high-voltage transmission projects in Southeast Asia, Africa, and South America, demonstrating proven field performance under diverse operating conditions.
Custom Engineering & Support Services
How do you select the right composite suspension insulator? Our technical team provides comprehensive selection assistance based on system voltage and BIL requirements, environmental conditions and pollution severity, and mechanical loading and span configurations.
Contact our engineering team for customized composite suspension insulator solutions, rapid technical quotations, and comprehensive project support tailored to your specific transmission line requirements.
