Introduction:

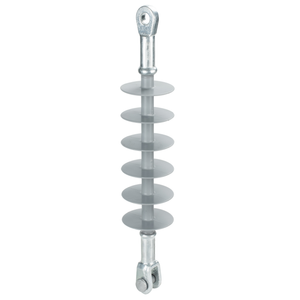

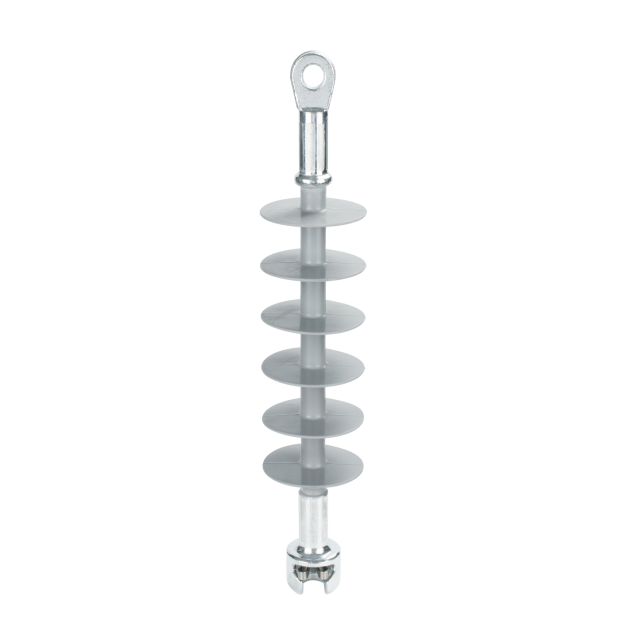

This is a 24kV Composite Suspension Insulator designed for robust performance in medium-voltage overhead power lines. It features a distinctive design with six grey, evenly spaced umbrella sheds. Engineered to meet stringent electrical and mechanical demands, it has a specified mechanical load capacity of 70kN and an extended creepage distance of 675mm. This transmission line insulator is a critical component in modern electrical infrastructure, offering a superior alternative to traditional porcelain or glass insulators, especially in demanding environmental conditions. Its construction from advanced polymer materials ensures long-term reliability, safety, and minimal maintenance.

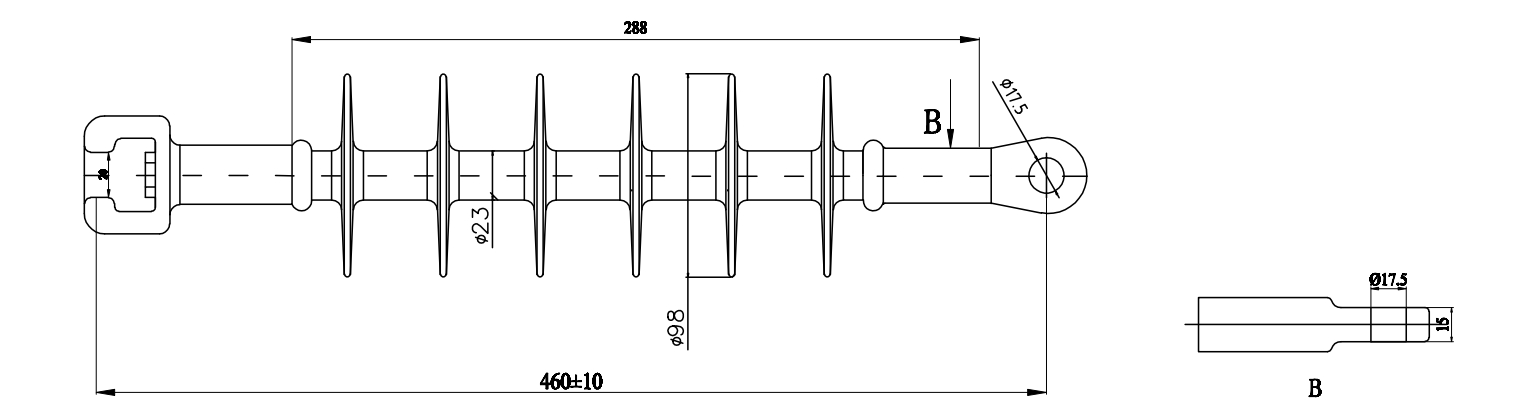

Drawings:
Specifications:
Product Type | Dimensions | Mechanical | Electrical | ||||||||
Height | Mini Dry | Mini | Diameter | Number of | Diameter | Specified | Routine | Rated Voltage | Lightning | Power | |
FXB-24-70WT | 460 ±10 | 200 | 675 | 17 | 6 | 98 | 70 | 35 | 24 | 135 | 65 |
Order Information: | |||||||||||

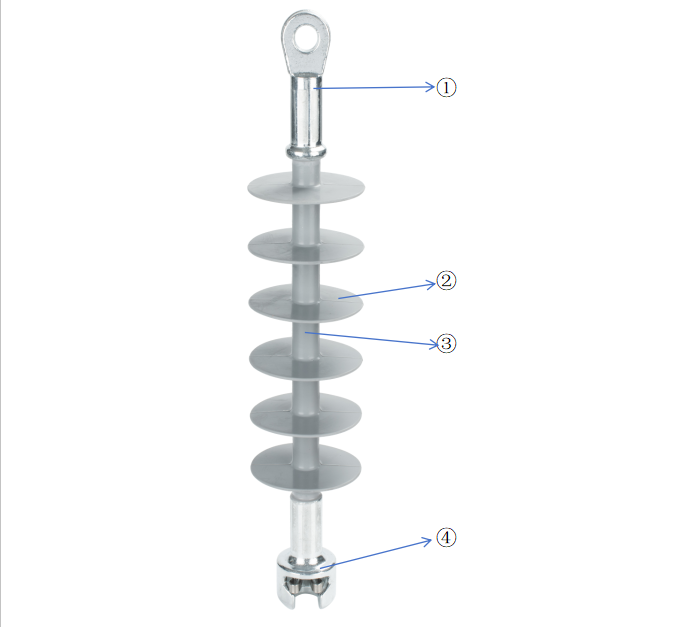

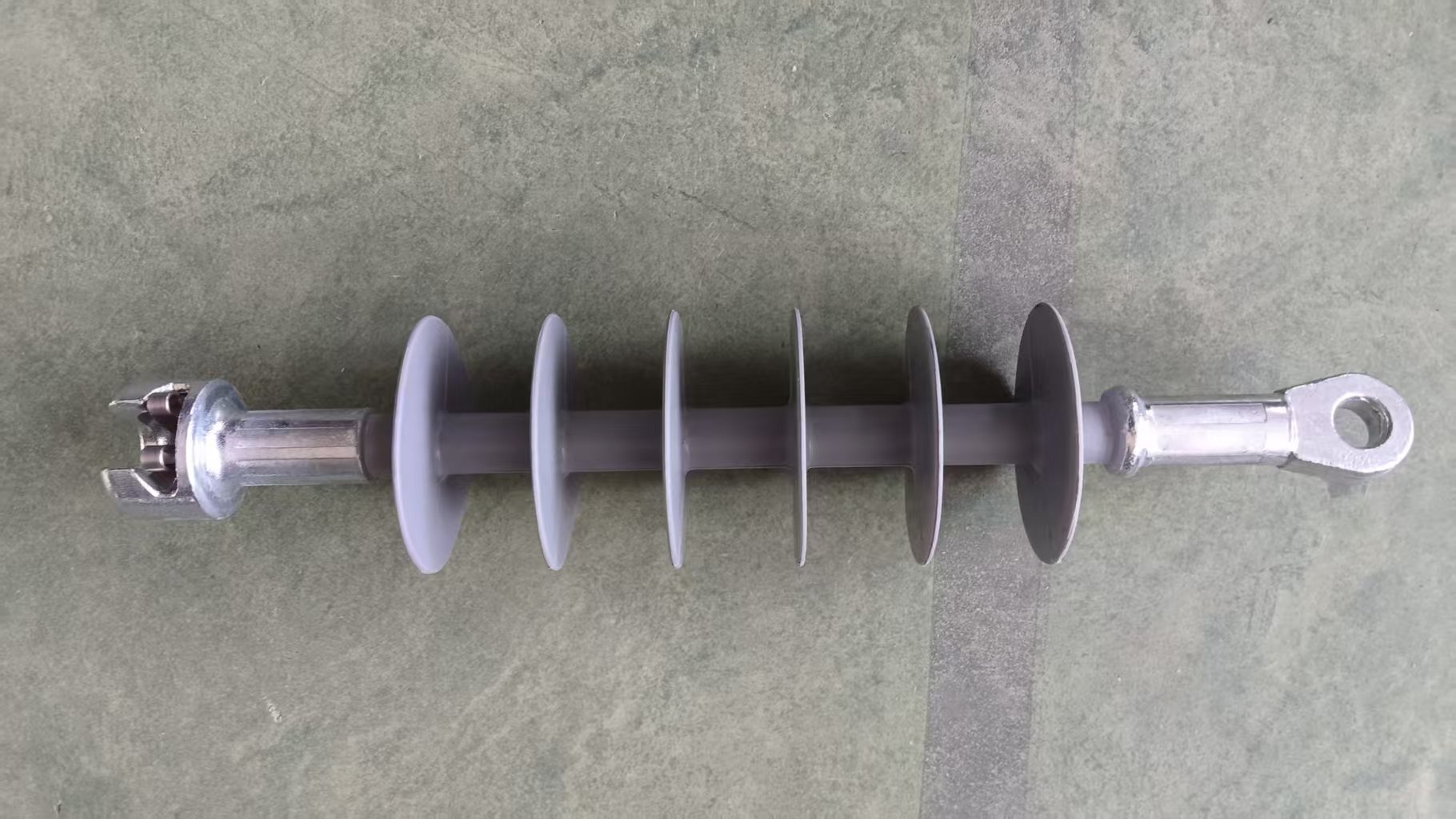

Product parts display:

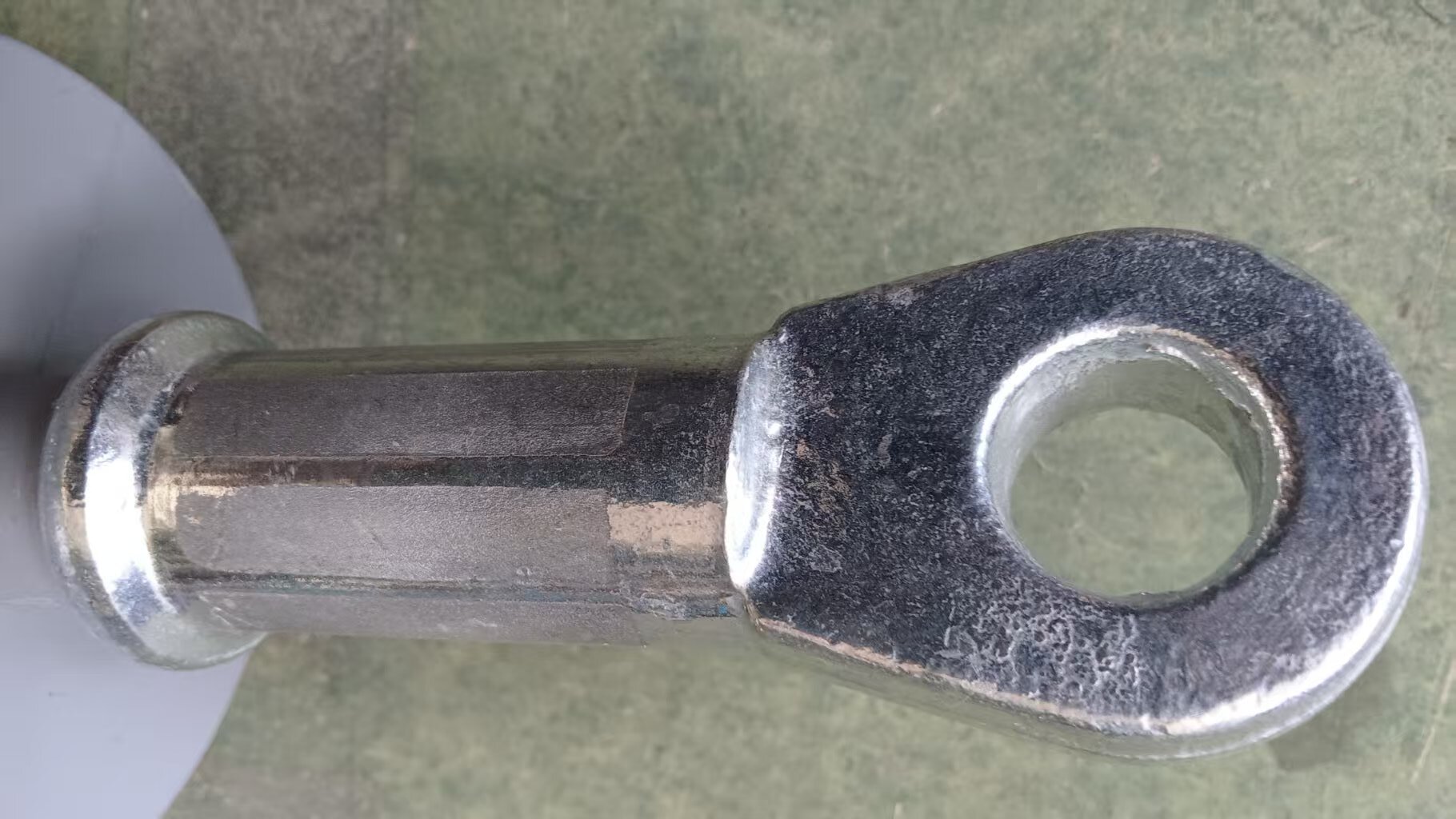

① End Fitting type: Tongue
Forged steel and hot dip galvanized,minimum thinkness of the galvanization:86µm
② The thickness of silicone rubber housing is more than 3mm,it is in accordance with IEC standard.
③ The acid-resistance,high terperature-resistance core rod use the materials epoxy & glassfiber.

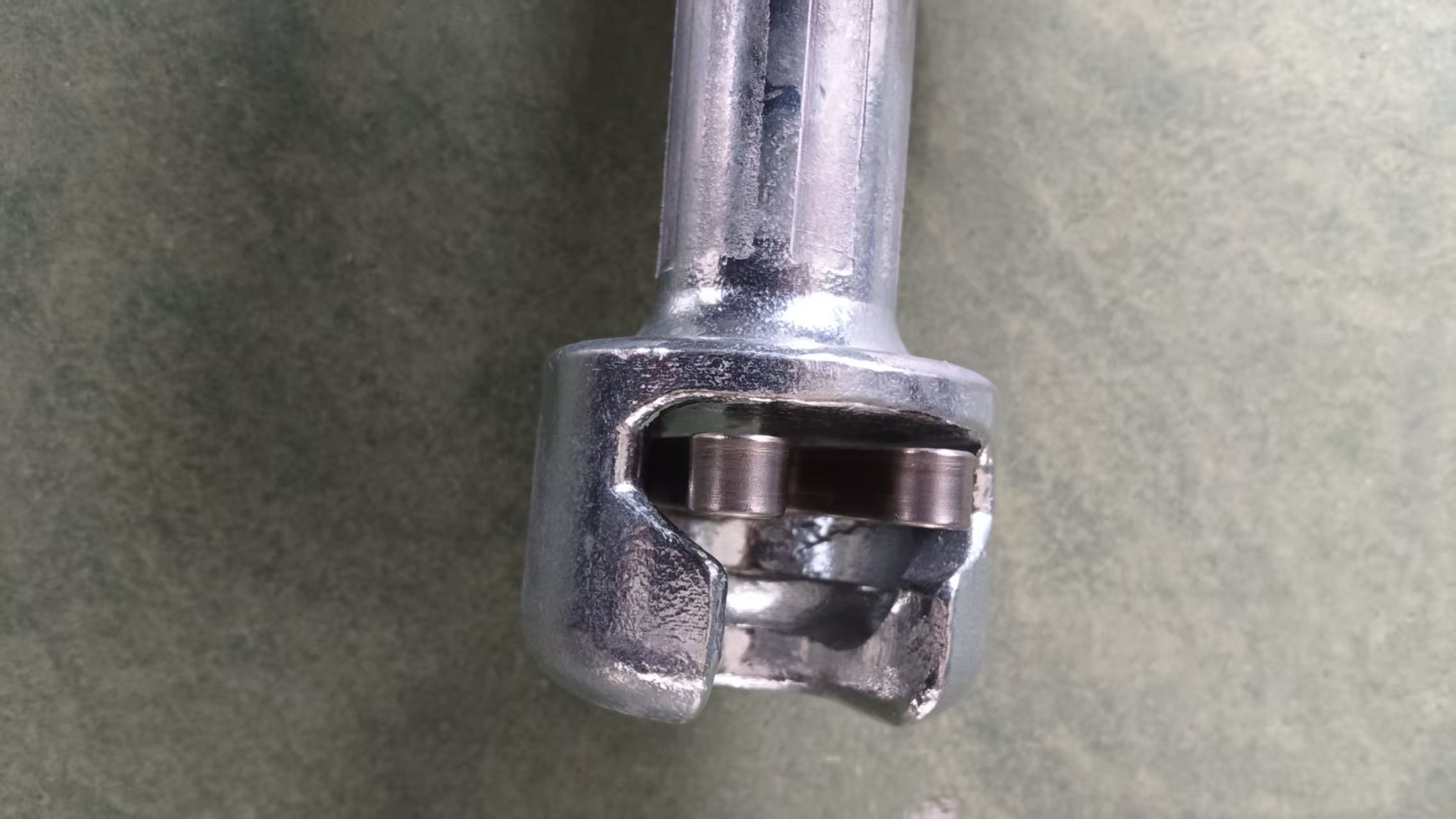

④ End fitting type: Socket
Forged steel and hot dip galvanized, minimum thinkness of the galvanization:86µm
Product Features:
Optimized Electrical Performance: The 675mm creepage distance is a key feature, providing a long and efficient path over the insulator's surface to suppress leakage currents. This makes it highly resistant to flashovers, even in polluted, humid, or coastal areas.
High Mechanical Strength: With a Specified Mechanical Load (SML) of 70kN, the composite insulator is built to withstand significant mechanical stresses, including the weight of the conductors, ice loading, and strong winds, ensuring the structural integrity of the power line.

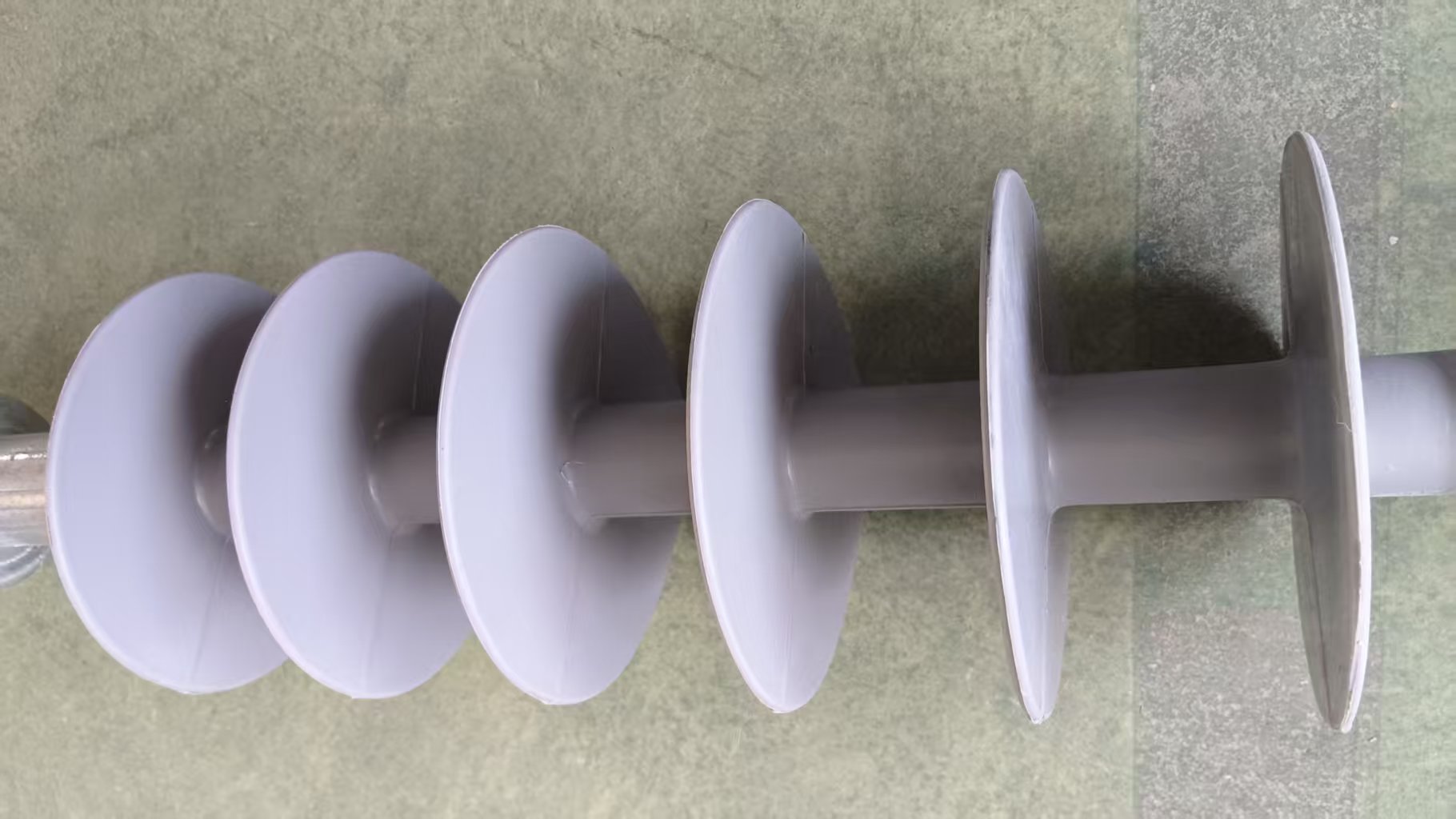

Excellent Shed Design: The six uniform umbrella sheds are optimally shaped to enhance pollution performance. During rain or fog, this design effectively disrupts water flow, promotes cleaning, and prevents the formation of a continuous conductive water film on the surface.
Advanced Composite Material:
Core: A high-strength Fiberglass Reinforced Plastic (FRP) rod provides exceptional tensile strength and is resistant to bending.
Housing and Sheds: Made of High-Temperature Vulcanized (HTV) Silicone Rubber, which offers excellent hydrophobicity (water repellency). This property prevents moisture absorption and reduces the risk of surface tracking. The material is also highly resistant to UV radiation, ozone, and extreme temperature variations.
Lightweight and Durable: Composite insulators are significantly lighter than porcelain equivalents, simplifying transportation and installation. The silicone rubber housing is highly resistant to vandalism and impact damage, leading to a longer service life with lower maintenance costs.
Reliable End Fittings: The metal end fittings (typically hot-dip galvanized steel) are securely attached to the FRP core via a controlled crimping process, ensuring a permanent and high-strength connection.
Production Process:
The manufacturing of this silicone tension insulator follows a precise and quality-controlled process:
Core Rod Preparation: A Fiberglass Reinforced Plastic (FRP) rod is manufactured, serving as the primary load-bearing member. Its surface is treated to ensure optimal adhesion with the rubber housing.

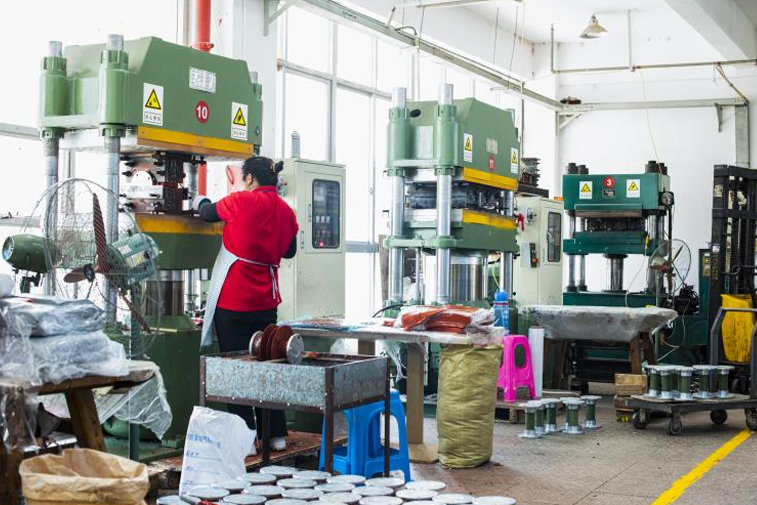

Injection Molding: The FRP rod is placed in a custom mold. HTV Silicone Rubber is injected under high pressure and temperature. This process simultaneously forms the grey, six-umbrella sheds and creates a seamless, watertight bond between the rubber housing and the core rod. This integral molding is crucial for preventing moisture ingress.

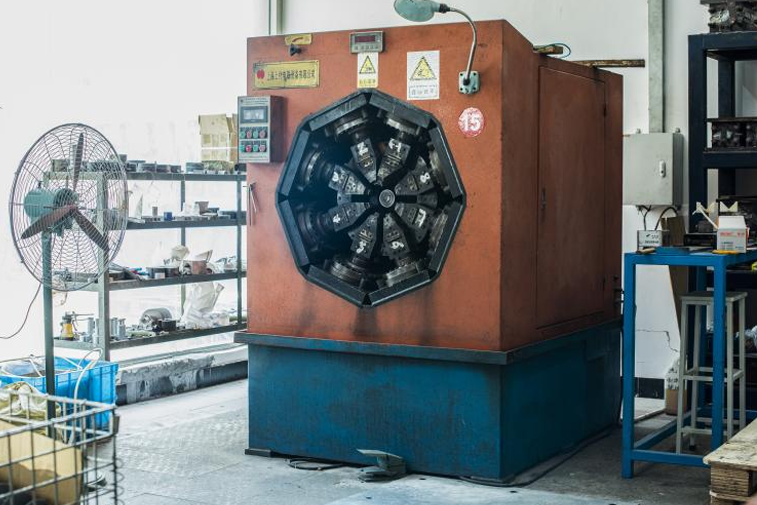

End Fitting Assembly: The metal end fittings (a clevis or socket at the top and a ball or tongue at the bottom) are assembled to the ends of the FRP rod. They are permanently attached using a high-pressure crimping or swaging technique, which cold-forms the metal around the rod without compromising its strength.
Rigorous Quality Control and Testing: Each production batch undergoes stringent checks. Samples are subjected to:
Mechanical Load Test: Verified to withstand loads significantly higher than the 70kN rating.
Electrical Tests: Including power frequency withstand voltage and impulse voltage tests to confirm dielectric strength.
Environmental Aging Tests: Assessing the retention of hydrophobicity and resistance to tracking and erosion under simulated severe conditions.
Application Scenarios:
This 24kV composite suspension insulator is ideally suited for:
Medium-Voltage Overhead Distribution Lines: Primarily used to suspend and insulate conductors on 24kV power lines from utility poles or structures.
Areas with High Pollution: Its long creepage distance and hydrophobic properties make it ideal for use in coastal regions, industrial areas, and deserts where salt, dust, or industrial pollutants can compromise the performance of standard insulators.
Distribution Networks: Widely deployed in both urban and rural power distribution systems for its reliability and longevity.
Critical and Harsh Environments: Its robust construction makes it suitable for applications requiring high durability, such as in areas prone to seismic activity, heavy icing, or vandalism.
Two Ends Of Connecting Hardware List
| Attachedto the letter | WQ | WD | WU | CT | TT | UU | YQ | RR | |
| On behalfof fittings | Socket -Ball | Socket -Tongue | Socket- Clevis | Ball- Bal | Clevis-Tongue | Tongue-Tongue | Clevis- Clevis | Y-Ball | Ring-Ring |
| Connectionmark | 16-16 | 16-7 | 16-7 | 16-16 | 7-7 | 7-7 | 7-7 | 7-7 | 7-7 |
1. According to the requirements of hardware in models are indicated in the attached letter;
2. According to the requirements of users can formulate and match ends fitting;
3. Silicone rubber color gray as the default,can also choose the other colors.
4. Custom made according to customer's drawings
 |  |
 |  |
 |  |  |
