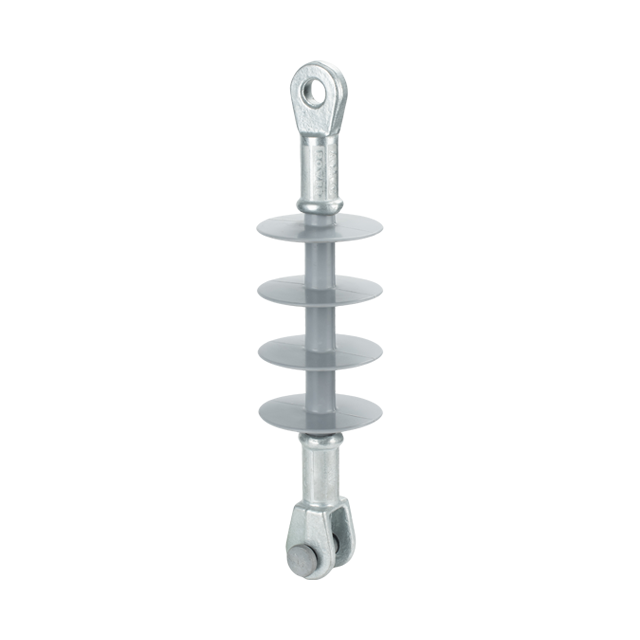

11kV Polymer Tension Insulator

Product Size:

Product Features:

Goods Description: Polymer Tension Insulator,is also named Composite Suspension Insulator, Suspension Silicone Insulator, Composite Tension Insulator.

Voltage Rating: 11kV (for medium-voltage lines).

Mechanical Strength: 70kN (kilonewton) tensile load capacity.

Design Options: Available in “Tongue” (for standard suspension) or “Clevis”

(for enhanced stability) configurations.

Material: High-grade composite polymer (depending on model), offering excellent resistance

to weathering, UV, and pollution.

Standards Compliance: Meets IEC 60383, ANSI C29.2, or other international standards (as specified).

Applications:

Overhead power lines (11kV distribution systems).

Substations, railways, and industrial electrification projects.

Areas with high mechanical stress or pollution (e.g., coastal, industrial zones).

Advantages:

High Durability: Resists cracking, corrosion, and temperature fluctuations.

Low Maintenance: Long service life with minimal upkeep.

Adaptability: Compatible with various tower designs and climatic conditions.

Parameter:

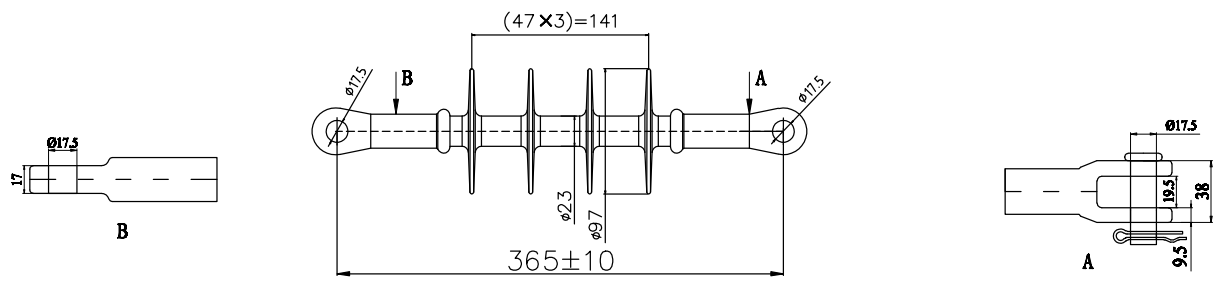

Product Type: FXB-11-70CT-450mm

End fittings: Clevis & Tongue

Height(mm): 365± 10

Min Dry Arcing Distance(mm): 200

Min Creepage Distance(mm): 450

Diameter of the rod(mm): 17

Number of sheds: 4

Sheds of diameter(mm): 98

Specified Mechanical Load(SML): 70kN

Routine Test Load (RTL): 35kN

Rated Voltage(kV):11kV

Lightning Impulse Withstand Voltage(kV): 105kV

Power Frequency Withstand Voltage(kV): 55kV

Specifications:

Product Type	Dimensions						Mechanical		Electrical
	Height (mm)	Mini Dry Arcing Distance (mm)	Mini Creepage Distance (mm)	Diameter of sheds (mm)	Number of sheds (mm)	Diameter of sheds (mm)	Specified Mechanical load(SML) (kN)	Routine Test Load(RTL) (kN)	Rated Voltage (kV)	Lightning Impulse withstand Voltage (kV)	Power Frequency withstand Voltage (kV)
FXB-11-70CT	365 ±10	200	450	17	4	98	70	35	11	105	55
Order Information: 1. Voltage grade 2. Mechanical load 3.Arcing distance  4. Creepage distance  5.Section length 6. End fittings type Remark:  We accept product customization according to customers' drawings

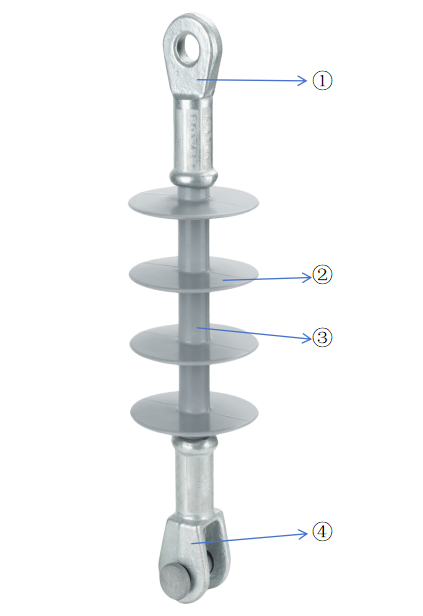

Product diagram:

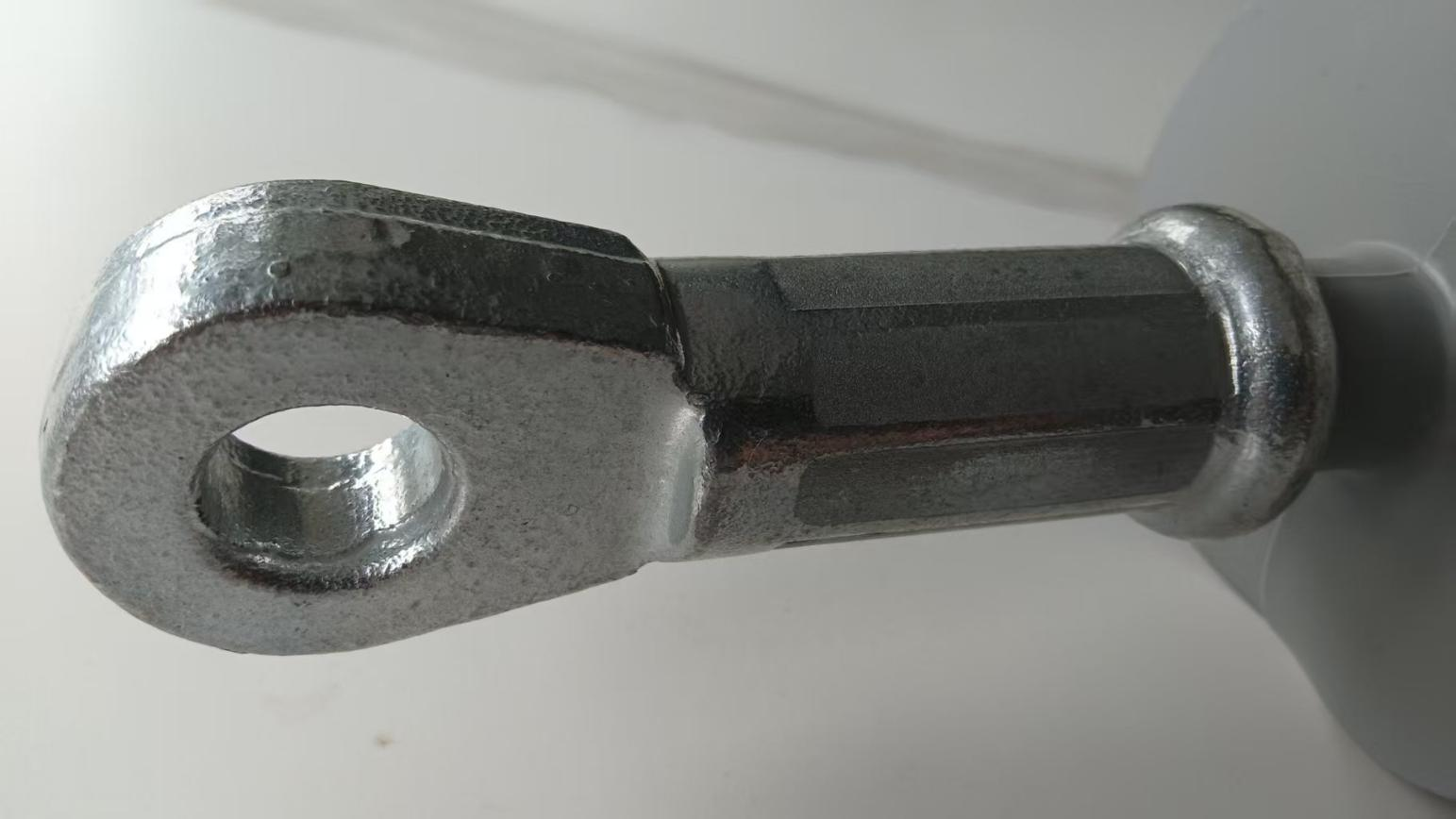

① End Fitting type: Tongue

Forged steel and hot dip galvanized,minimum thinkness of the galvanization:86µm

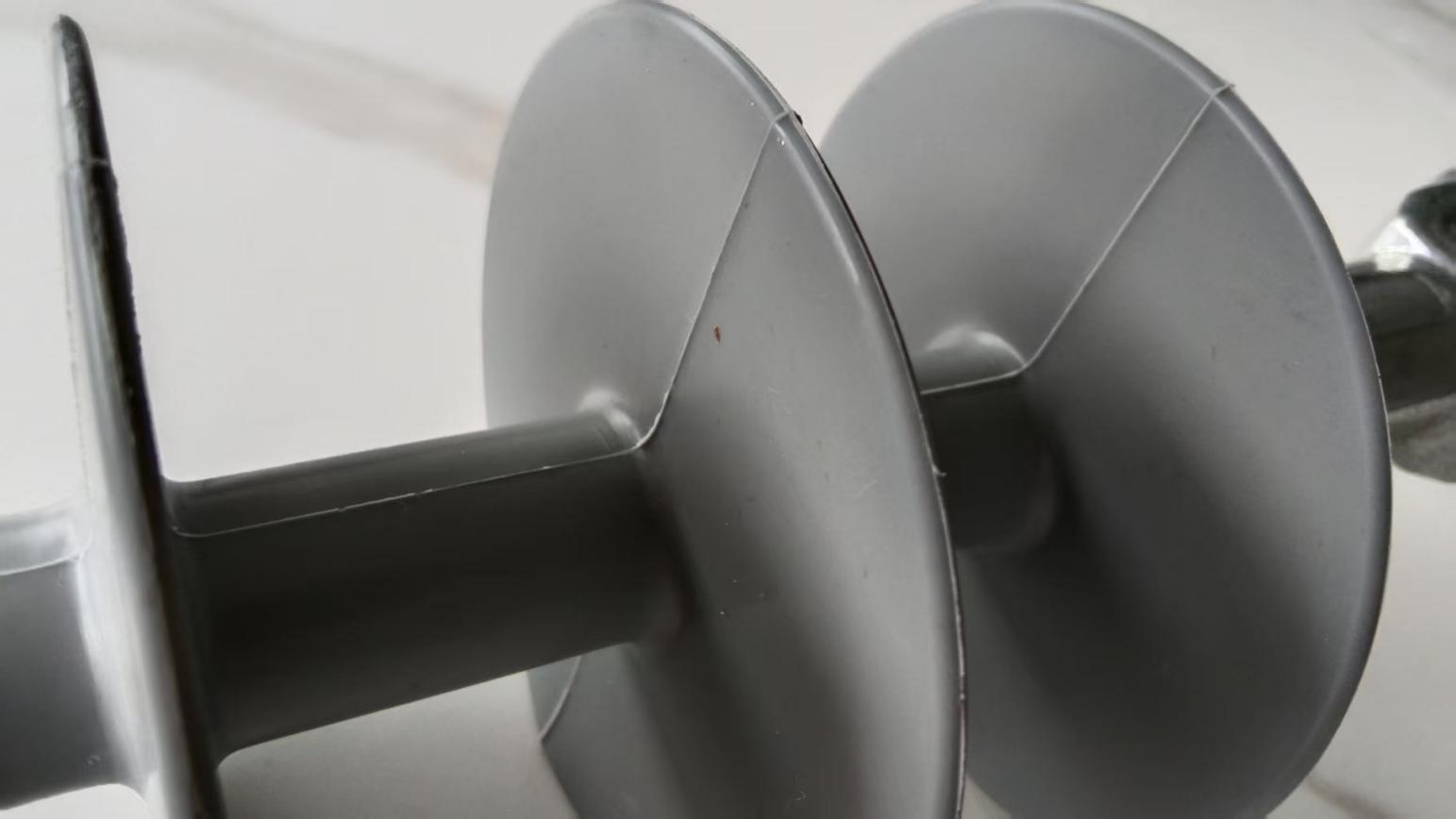

② The thickness of silicone rubber housing is more than 3mm,it is in accordance with IEC standard.

③ The acid-resistance,high terperature-resistance core rod use the materials epoxy & glassfiber.

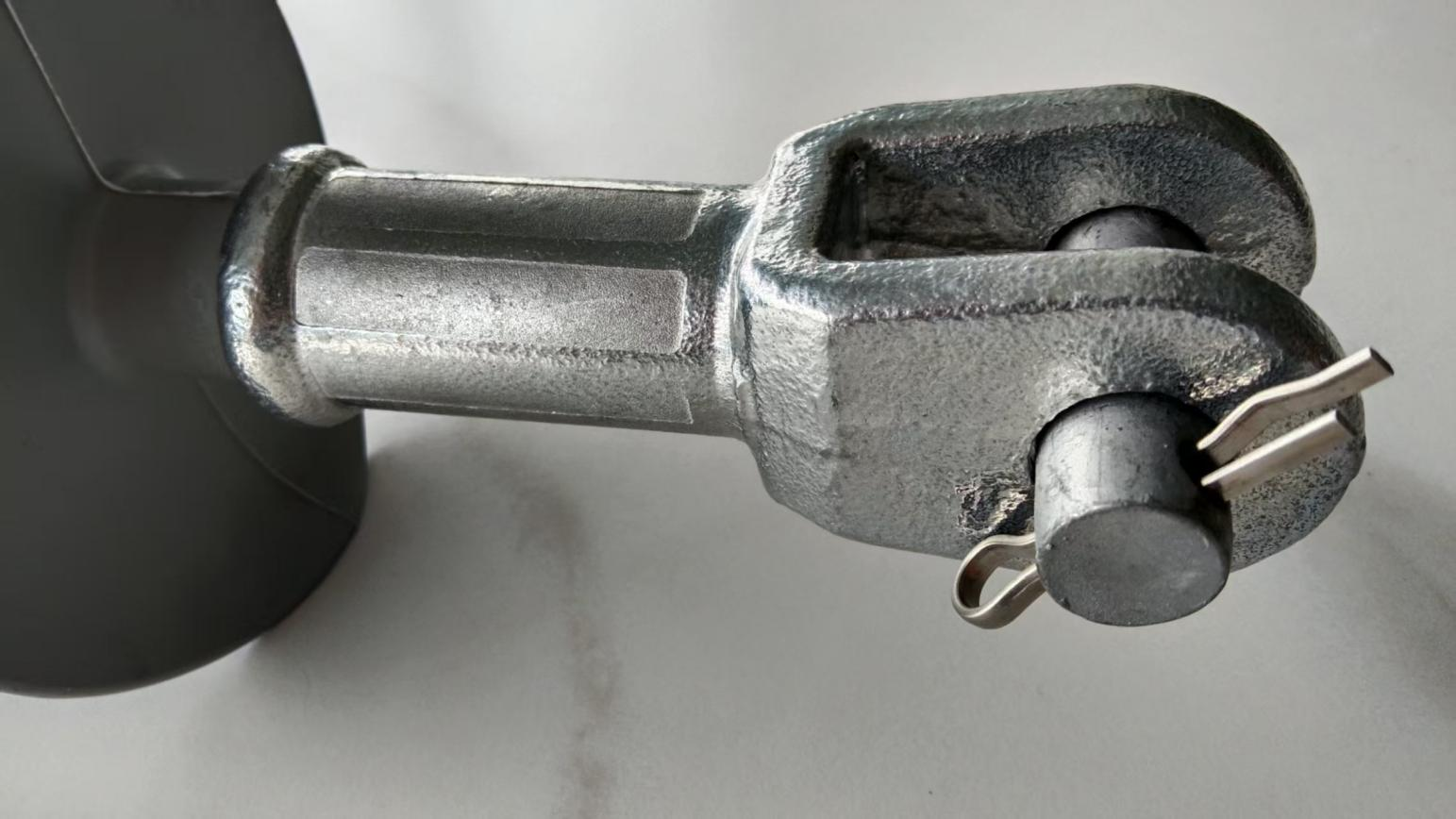

④ End fitting type: Clevis

Forged steel and hot dip galvanized, minimum thinkness of the galvanization:86µm

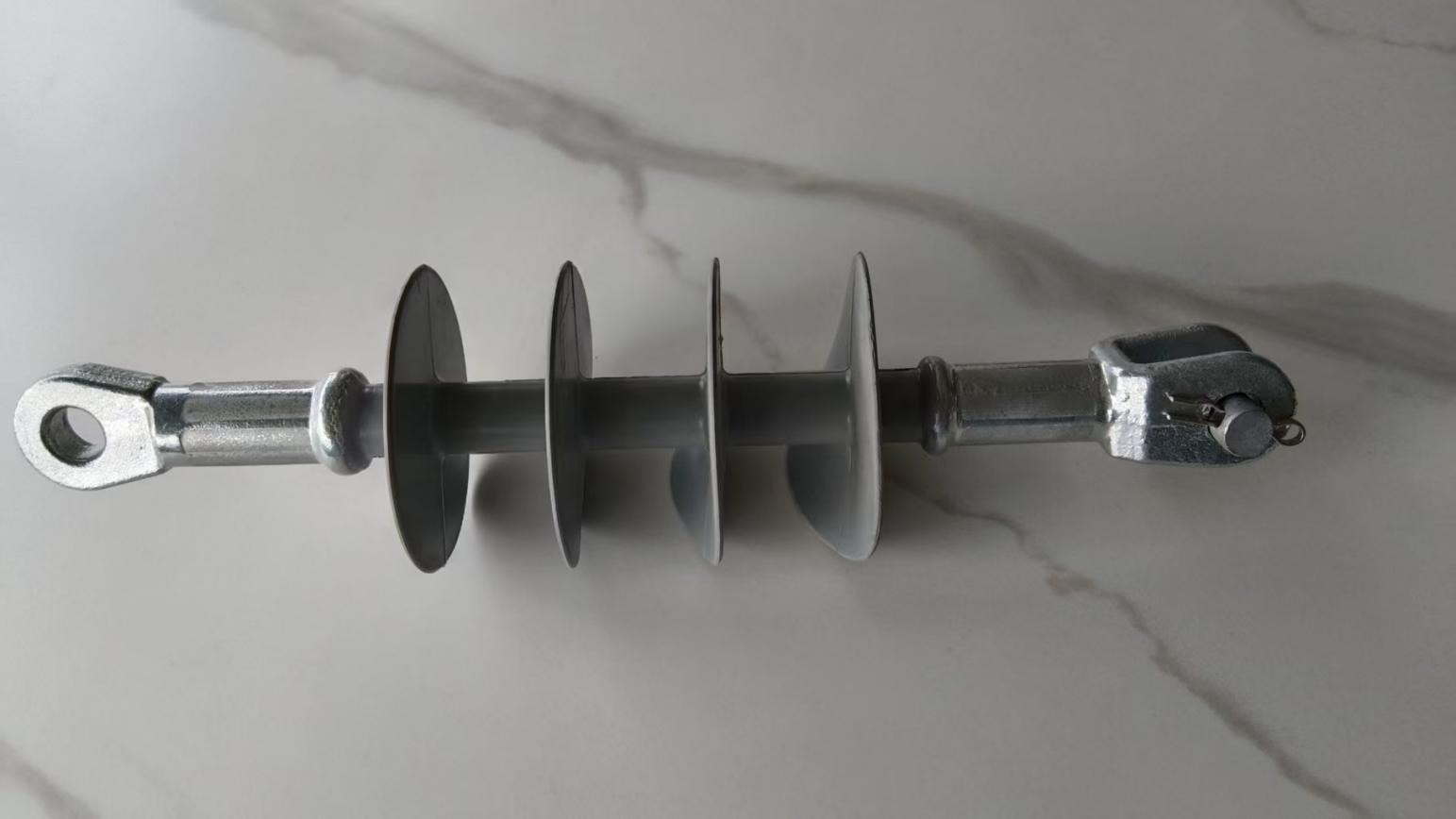

Product Display:

Two Ends Of Connecting Hardware List

Attachedto the letter	WQ	WD	WU	QQ	CT	TT	UU	YQ	RR
On behalfof fittings	Socket -Ball	Socket -Tongue	Socket- Clevis	Ball- Bal	Clevis-Tongue	Tongue-Tongue	Clevis- Clevis	Y-Ball	Ring-Ring
Connectionmark	16-16	16-7	16-7	16-16	7-7	7-7	7-7	7-7	7-7

1. According to the requirements of hardware in models are indicated in the attached letter;

2. According to the requirements of users can formulate and match ends fitting;

3. Silicone rubber color gray as the default,can also choose the other colors.

4. Custom made according to customer's drawings
