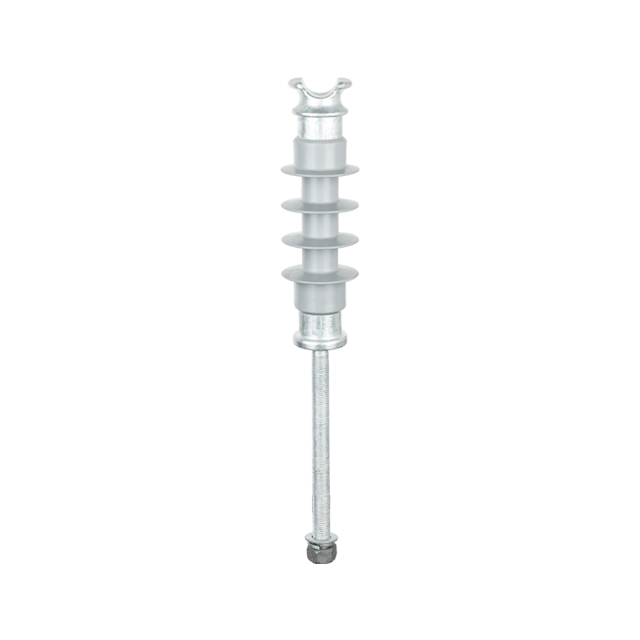

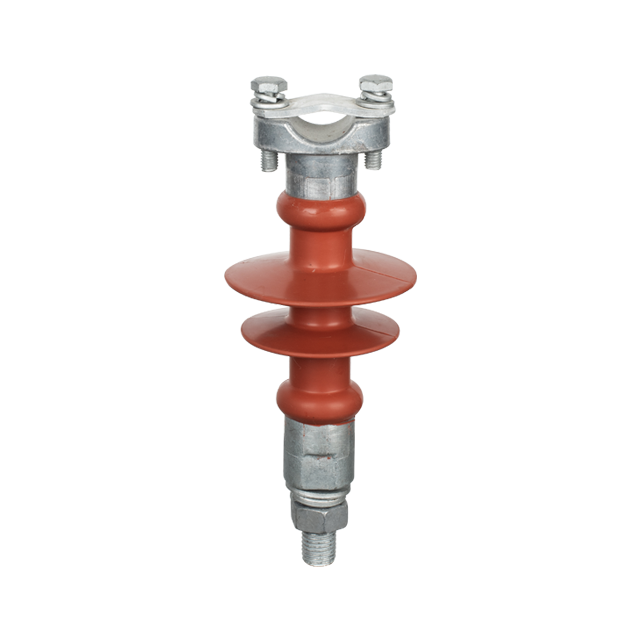

Composite Pin Insulator represents cutting-edge insulation technology designed for medium voltage distribution systems, combining superior mechanical strength with exceptional electrical performance. As a leading Composite Pin Insulator manufacturer, Langao Power delivers premium polymer insulation solutions that outperform traditional porcelain and ceramic alternatives across diverse operating environments worldwide.
Our Composite Pin Insulator construction utilizes high-grade silicone rubber housing over fiberglass reinforced polymer (FRP) core rods, delivering outstanding hydrophobic properties and UV resistance. This advanced Composite Insulator design provides self-cleaning surfaces that maintain optimal performance in polluted environments where conventional insulators fail.
The integrated metal hardware features hot-dip galvanized steel or aluminum alloy construction, ensuring corrosion resistance and long-term mechanical reliability. Each unit undergoes rigorous quality testing including mechanical load verification, electrical performance validation, and environmental stress screening.
Composite Pin Insulator products demonstrate superior dielectric strength with voltage ratings spanning 11kV to 69kV distribution applications. The optimized shed profile maximizes creepage distance while minimizing overall dimensions, providing enhanced pollution performance compared to traditional pin-type insulators.
Key electrical specifications include:
• Dry flashover voltage exceeding IEC 61109 requirements by 15%
• Wet withstand performance surpassing ANSI C29.11 standards
• Lightning impulse capability meeting IEEE 1024 specifications
Our Composite Pin Insulator range serves overhead distribution lines, substations, and industrial facilities requiring reliable medium voltage insulation. The lightweight design reduces structural loading on poles and crossarms while providing superior cantilever strength for conductor support applications.
Composite Insulator technology excels in challenging environments including coastal areas with salt contamination, industrial zones with chemical pollution, and regions experiencing extreme temperature variations. The hydrophobic silicone surface maintains electrical integrity across diverse climatic conditions.
Distribution utilities, industrial facilities, and renewable energy projects rely on our Composite Pin Insulator solutions for consistent performance and reduced maintenance requirements. Field installations demonstrate 30+ year service life with minimal degradation under normal operating conditions.
Langao Power's ISO 9001 certified manufacturing facility produces over 500,000 Composite Pin Insulator units annually, serving customers across 40+ countries. Our comprehensive testing laboratory ensures compliance with IEC, ANSI, AS, and CSA international standards.
What makes our Composite Insulator products superior? Advanced polymer formulation provides 40% weight reduction compared to porcelain alternatives, while enhanced mechanical properties deliver 25% higher cantilever strength ratings. The shatterproof construction eliminates safety risks associated with ceramic insulator failure.
Every Composite Pin Insulator undergoes 100% factory testing with detailed quality certificates provided for traceability. Our technical team offers comprehensive application engineering support, rapid quotation services, and customized solutions for specific project requirements.
Contact Langao Power today for premium Composite Pin Insulator solutions backed by industry-leading quality assurance and responsive customer service.
