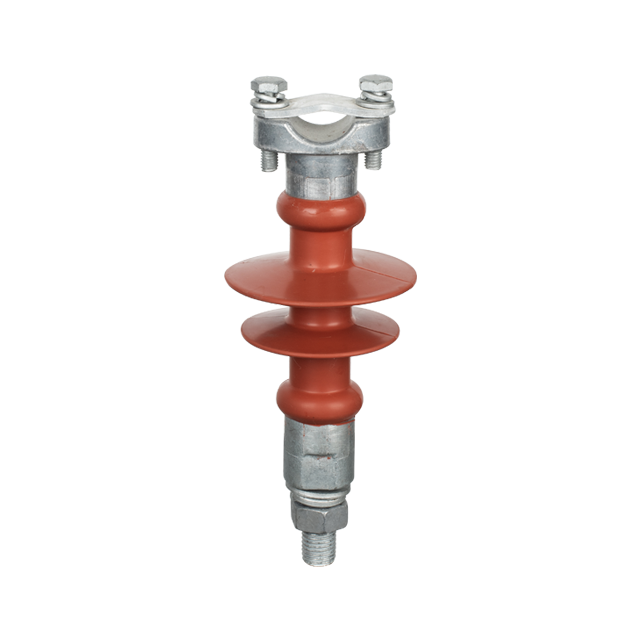

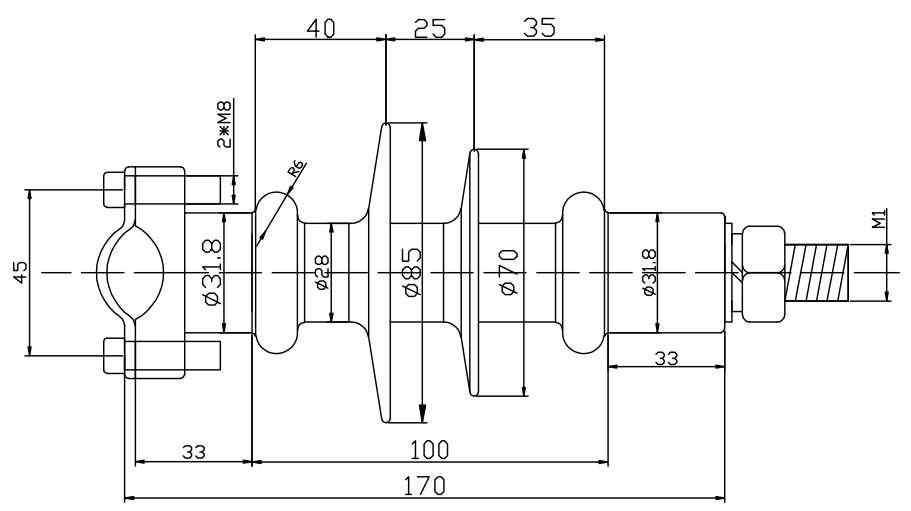

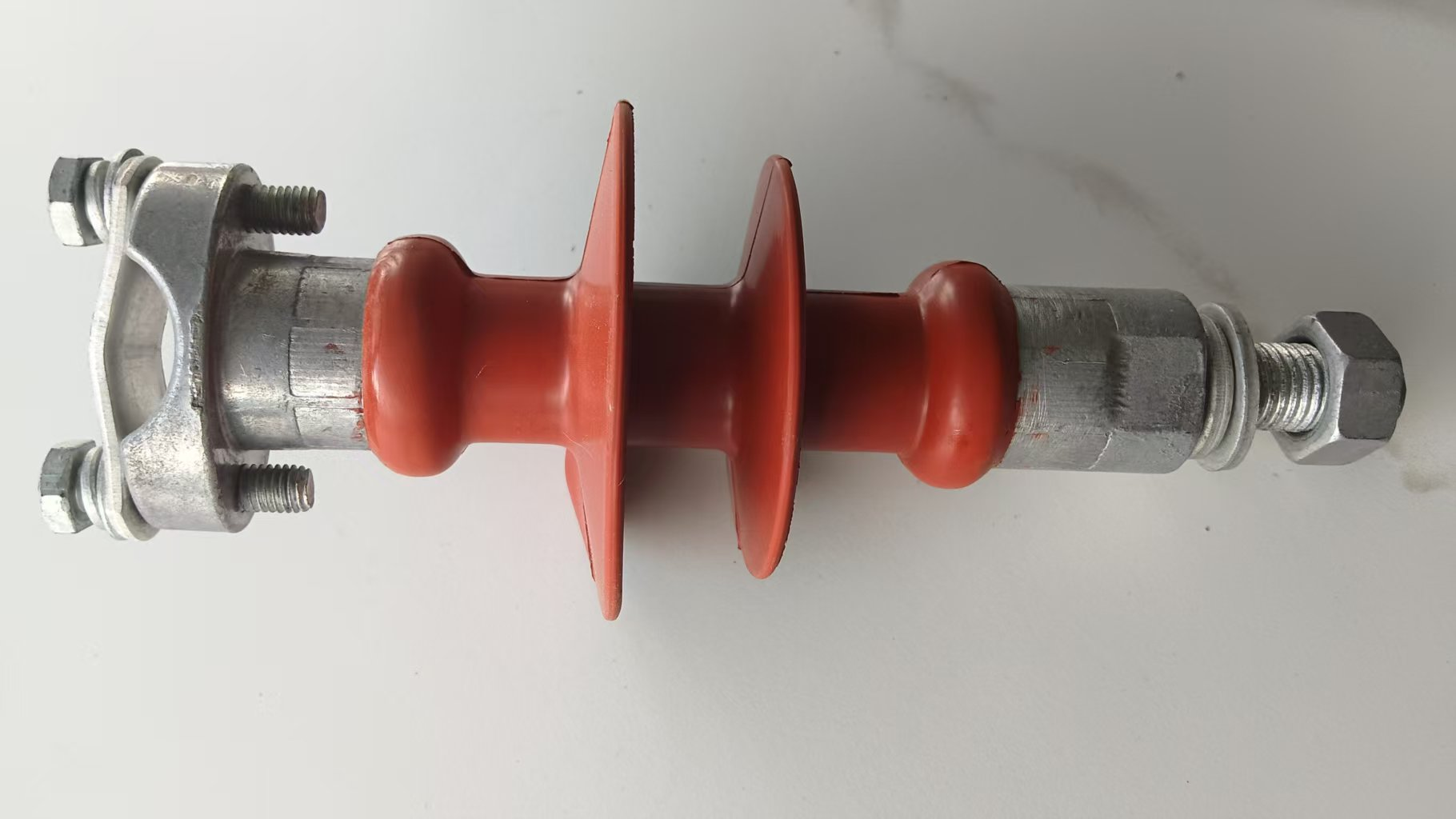

The 1kV Polymer Pin Insulator (Model: FPQ-1-3T18) is designed for low-voltage (0.4kV-1kV) overhead power distribution lines, providing both electrical insulation and mechanical support. It features a silicone-based polymer body, a two-shed (red) design for pollution resistance, and an integrated line clip for conductor attachment. With a height of 170±10mm, dry arcing distance of 120mm, and creepage distance of 165mm, it meets LV insulation needs. Its 3kN rated bending load withstands wind, ice, and conductor tension outdoors.
Strong Insulation Performance: Rated for 1kV, it has a power frequency withstand voltage of 15kV and lightning impulse withstand voltage of 30kV, preventing leakage and flashovers in humid/dusty conditions.
Robust Mechanical Strength: 3kN bending load resists conductor weight, wind sway, and up to 10mm ice accumulation, ensuring structural stability.

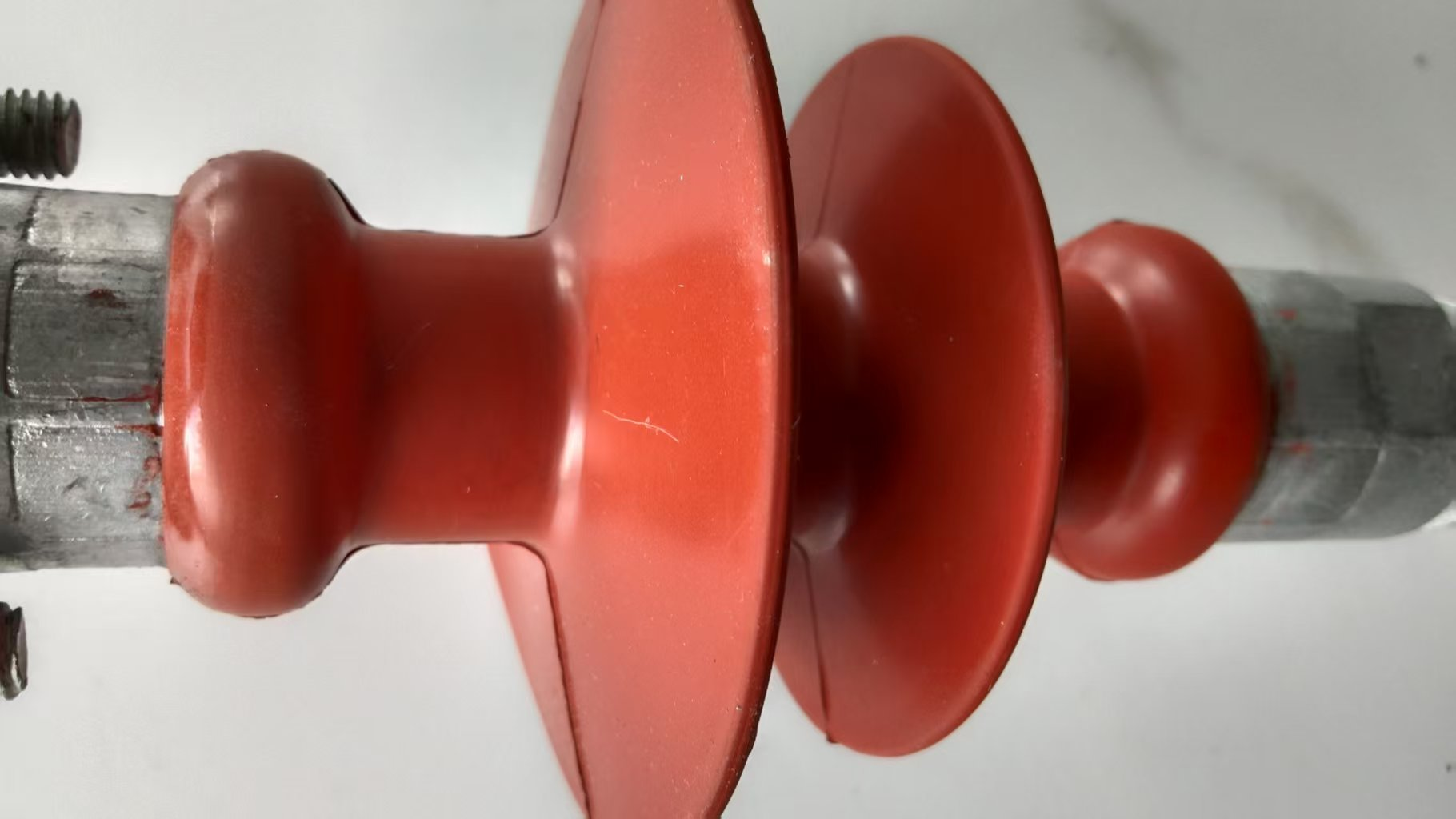

Two-Shed Design: Red two sheds (85mm/70mm diameter) increase creepage distance to 165mm, reducing contamination buildup in coastal suburbs or light industrial zones.

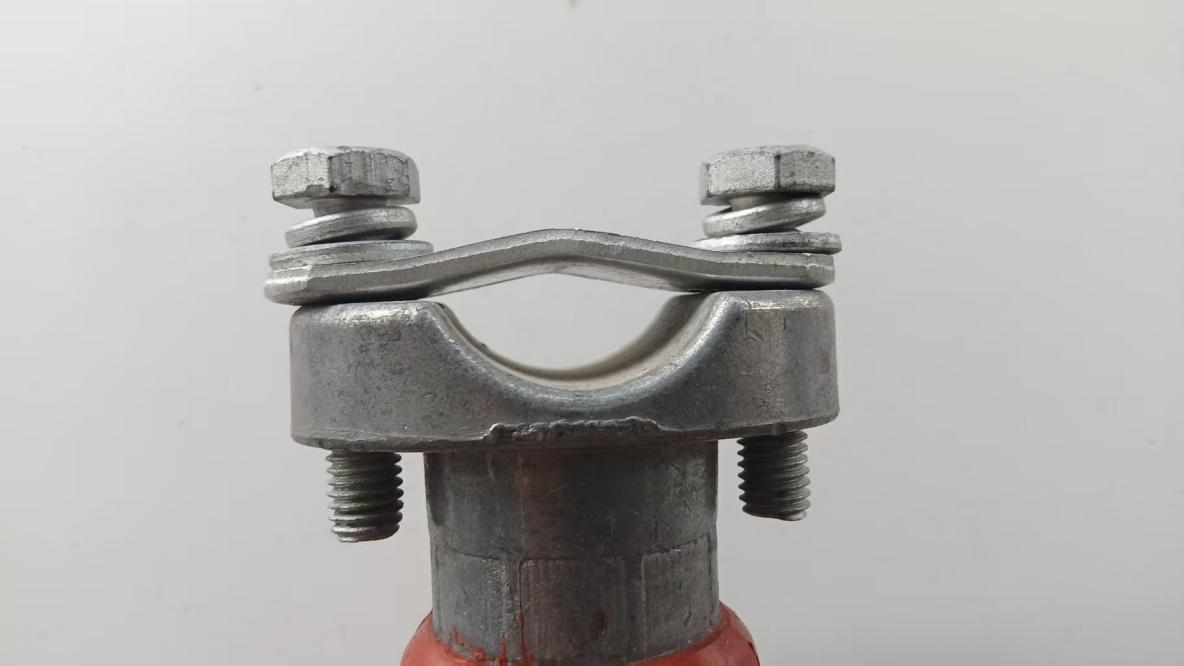

Integrated Line Clip: A corrosion-resistant (galvanized steel/aluminium alloy) clip simplifies installation, compatible with AAC, AAAC, and ACSR conductors, cutting installation time by 40%.
Lightweight & Durable: 60% lighter than porcelain, reducing pole load. It resists UV radiation and -40°C to +70°C temperatures without cracking.
Standard Compliance: Meets IEC 60383 and ANSI C29 standards, ensuring global compatibility.
Rural LV Electrification: In rural areas with scattered households, the insulator supports LV conductors on wooden/concrete poles. Its lightweight design eases installation, and the two-shed structure resists agricultural dust.
Urban Residential Grids: For urban communities, its compact size (170mm height) fits narrow spaces between buildings. The integrated clip enables quick installation, minimizing disruption to residents.
Temporary Power: During construction or emergencies, it is used in temporary LV lines for rapid deployment, ensuring power for construction sites or events.
Coastal Suburbs: Its polymer material and two-shed design prevent salt fog corrosion and UV damage, avoiding flashovers in coastal climates.
Industrial Auxiliary Lines: In food processing or light manufacturing plants, it supports LV lines for lighting/small machinery, resisting vibration and dust.
Installation Guidance: English manuals (with conductor compatibility charts) and videos help with correct mounting.
Compliance Certificates: IEC 60383 and ANSI C29 certificates are provided for project approval.
Customization: Custom line clips or height adjustments are offered for non-standard poles/conductors.
Troubleshooting: Remote guidance for inspection and fault-solving is available, with on-site support within 24 hours (domestic).
Warranty: A 3-year warranty covers defects, with free replacements and shipping.
 |  |
 |  |
