Selecting the right insulator for overhead distribution networks carries massive operational stakes. Premature failure of a single unit often leads to cascading outages, severe safety hazards, and heavy maintenance burdens. Upgrading existing grid infrastructure requires moving far beyond basic catalog dimensions. Procurement teams and utility engineers must navigate varying manufacturing standards, hidden material degradation risks, and complex mechanical thresholds.
Steady market growth and increasing demand for lightweight, resilient grid components have led to a massive influx of suppliers. Buyers must rigorously filter out subpar manufacturers rushing to meet market needs without adequate quality control. Relying solely on a datasheet is no longer sufficient. You need a proven methodology to verify core materials, housing polymers, and mechanical load ratings.
This guide establishes a rigorous framework for evaluating supplier specifications, validating material integrity, and mitigating long-term deployment risks before committing to bulk orders.
Material Integrity Dictates Lifespan: The core (resin-impregnated glass fibers) and the housing (HTV silicone) must demonstrate flawless interfacial adhesion to prevent moisture ingress and tracking.
Mechanical Thresholds are Non-Negotiable: Validating the Specified Cantilever Load (SCL) and Maximum Design Cantilever Load (MDCL) is critical to ensure the insulator withstands environmental and conductor-induced stresses.
Testing Transparency is Mandatory: Reliable procurement requires verifying that suppliers conduct strict routine and sample testing (IEC/ANSI standards) to detect early failure indicators like partial discharges.
Utilities globally are shifting away from traditional porcelain and glass units for 11kV to 36kV distribution lines. The operational criteria driving this shift focus heavily on installation efficiency, environmental resilience, and long-term grid stability. A well-manufactured Polymer Pin Insulator for Overhead Lines solves multiple legacy infrastructure problems simultaneously.
Weight reduction fundamentally changes logistics and installation. Composite units weigh up to 80% less than their porcelain counterparts. This massive reduction lowers shipping expenses, reduces the physical strain on line crews, and allows for faster manual installation on utility poles. Crews can carry multiple units up a bucket truck without requiring heavy lifting equipment, accelerating grid expansion and storm recovery efforts.
However, storage and handling demand specific best practices. While composite materials are shatter-proof, improper handling causes severe hidden damage. Dragging insulators across rough ground or storing them under heavy, abrasive equipment creates micro-abrasions on the silicone housing. These microscopic scratches compromise the hydrophobic surface, leading to early degradation, dirt accumulation, and eventual electrical tracking once energized.
To prevent handling damage, field crews should follow these strict protocols:
Keep insulators in their original factory packaging until they reach the base of the installation pole.
Never drag composite units across gravel, asphalt, or truck beds.
Avoid lifting the insulator by the silicone sheds; always grip the metal end fittings.
Do not stack heavy hardware, such as crossarms or transformers, on top of boxed insulators in the staging yard.
Use dedicated polymer insulator stringing blocks with neoprene linings to prevent housing abrasion.
Inspect every unit visually for cuts, tears, or exposed fiberglass before hoisting it up the pole.
Vandalism and impact resistance provide another major operational advantage. In high-risk corridors where rock-throwing or hunting activities frequently destroy brittle porcelain, the shatter-proof characteristics of polymer materials directly reduce replacement frequency. The flexible silicone housing absorbs kinetic impacts without fracturing the internal fiberglass core.
Superior pollution performance remains the primary technical driver for adoption. Silicone rubber possesses inherent hydrophobicity. Water beads up and rolls off the surface rather than forming a continuous conductive film. This characteristic minimizes leakage currents and prevents dry-band arcing in coastal areas, heavy industrial zones, or regions with high agricultural dust. The material even transfers its hydrophobic properties to accumulated dirt layers, maintaining insulation integrity under severe contamination.

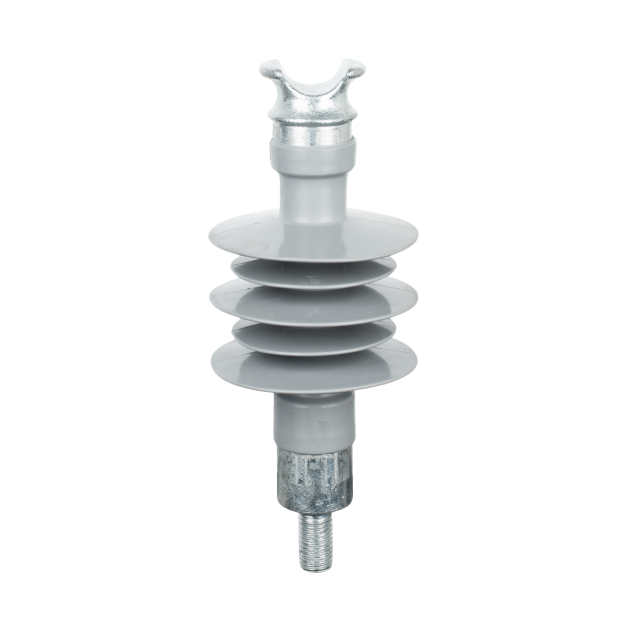

Understanding the anatomical components of a Silicone Pin Insulator separates premium units from budget alternatives. The material science behind the core, the housing, and the interface dictates the component's survival in the field.
The pultruded FRP rod provides the primary mechanical support for the entire assembly. Manufacturers draw continuous glass fibers through a resin bath and cure them under high heat to form a solid, high-strength rod. The quality of the glass fibers and the specific epoxy resin matrix determine the core's resistance to bending and torsion.
Resin impregnation quality is a non-negotiable factor. Voids or dry spots within the fiberglass matrix create weak points. If moisture penetrates the outer housing and reaches these voids, it triggers a chemical reaction known as brittle fracture. The moisture reacts with the glass fibers under high electrical stress, creating an acid attack that cleanly snaps the core at minimal mechanical loads.
Standard E-glass fibers contain boron, which reacts violently with acids formed during internal electrical discharges. High-quality cores utilize boron-free, corrosion-resistant (ECR) glass fibers. ECR glass removes boron from the chemical composition, providing a highly acid-resistant core that withstands harsh internal environments without fracturing, entirely eliminating this specific failure mode.
The external housing protects the FRP core from UV radiation, moisture, and electrical tracking. Manufacturers use various polymers, but High-Temperature Vulcanized (HTV) silicone rubber stands as the industry benchmark. Alternatives like EPDM (Ethylene Propylene Diene Monomer) or epoxy resins fail to match HTV silicone's long-term field performance.
HTV silicone offers superior UV resistance, preventing the material from chalking or cracking after decades of direct sunlight exposure. More importantly, HTV silicone retains and recovers its hydrophobicity. Even after severe corona discharge or heavy pollution events temporarily degrade the surface, low-molecular-weight siloxanes migrate from the bulk material to the surface, restoring its water-repellent properties.
Housing Material | UV Resistance | Hydrophobicity Recovery | Tracking Resistance | Field Longevity |
|---|---|---|---|---|
HTV Silicone Rubber | Excellent | High (Active Transfer) | Excellent | 20+ Years |
EPDM | Good | None | Moderate | 10-15 Years |
Cycloaliphatic Epoxy | Moderate | None | Good | 10-12 Years |
The boundary where the silicone housing meets the FRP core represents the most vulnerable point in any composite insulator. Manufacturers employ a strict chemical bonding process during injection molding to fuse the silicone directly to the primed fiberglass rod.
Poor interfacial adhesion leads directly to catastrophic failure. If microscopic gaps exist between the core and the housing, moisture inevitably finds its way inside due to capillary action and temperature cycling. Once moisture bridges the gap between the high-voltage conductor and the grounded pin, internal electrical tracking begins. This tracking burns through the resin matrix, carbonizes the interior, and causes an explosive electrical breakdown. Strict factory adhesion testing, including boiling water tests, verifies this seal before deployment.
Mapping technical parameters to real-world network compatibility ensures grid stability. Procurement teams must scrutinize Composite Pin Insulator Specifications to guarantee the hardware matches the specific environmental and electrical demands of the installation site.
Aligning the insulator's rated voltage with the system's maximum operating voltage is the first mandatory step. A 15kV rated insulator deployed on a 24kV line will experience continuous corona discharge, rapidly destroying the silicone housing. Engineers must account for the nominal system voltage and the maximum continuous operating voltage (MCOV).
Overvoltage conditions and Basic Impulse Insulation Levels (BIL) dictate the insulator's ability to survive transient events. Lightning strikes and switching surges introduce massive voltage spikes into the distribution network. The insulator must possess a BIL rating high enough to withstand these microsecond impulses without puncturing the core or causing a destructive flashover. Verifying certified lightning impulse withstand test reports guarantees this capability.
Creepage distance measures the shortest path along the surface of the insulator from the energized fitting to the grounded fitting. This parameter directly correlates to performance in specific pollution zones. IEC 60815 defines site pollution severity levels ranging from Light to Very Heavy. Coastal areas with salt fog or industrial zones with heavy particulate emissions require extended creepage profiles to prevent surface leakage currents from initiating flashovers.
Dry arcing distance represents the shortest straight-line distance through the air between the metal fittings. This measurement plays a primary role in preventing flashovers during lightning or switching surges. While creepage manages continuous pollution performance, the arcing distance manages sudden overvoltage air breakdowns. Both metrics must strictly align with utility standards for the target deployment region.
Pollution Level (IEC 60815) | Typical Environment | Minimum Nominal Specific Creepage Distance (mm/kV) |
|---|---|---|
Light (I) | Agricultural areas, no industry, inland | 16.0 |
Medium (II) | Light industry, low density housing | 20.0 |
Heavy (III) | High density industry, coastal areas | 25.0 |
Very Heavy (IV) | Heavy industry, severe salt fog, desert sand | 31.0 |
End fittings connect the insulator to the pole structure and the conductor. Manufacturers typically use hot-dip galvanized steel, forged steel, or ductile iron. The galvanizing thickness must meet strict ISO standards (typically 85 microns or higher) to ensure long-term corrosion resistance, especially in humid or coastal environments. Rust on the fittings eventually expands, cracking the protective seals and allowing moisture into the core.
The crimping process secures these metal fittings to the fiberglass core. Premium manufacturers utilize acoustic emission-controlled crimping. Traditional crimping relies solely on hydraulic pressure gauges, which cannot account for slight variations in fiberglass rod density. Acoustic emission monitoring listens to the structural integrity of the rod in real-time. If the system detects the specific acoustic signature of a single glass fiber snapping, it immediately halts the press and flags the unit for rejection. This guarantees absolute mechanical reliability at the fitting interface.
Original Equipment Manufacturers (OEM) must offer tailoring capabilities. Utilities often require customized spindle threads, specific base dimensions, and modified shed profiles to match existing crossarms and conductor ties. The manufacturer must accommodate these physical modifications without compromising the core electrical or mechanical specifications.
Overhead distribution lines subject hardware to relentless physical stress. Validating Composite Pin Insulator Mechanical Strength ensures the units can safely bear the load of heavy conductors, high winds, and severe ice accumulation.
Mechanical ratings define the safe operational limits of the insulator. The Specified Cantilever Load (SCL) represents the ultimate failing load. This is the exact force required to snap the fiberglass core or permanently deform the metal pin during destructive testing. The Maximum Design Cantilever Load (MDCL) represents the maximum continuous working load the insulator can safely sustain over its 20-year lifespan. MDCL is typically rated at 50% of the SCL.
Engineers calculate required cantilever strength based on multiple field variables. Procurement teams must ensure the MDCL rating comfortably exceeds the absolute worst-case loading scenario calculated for the specific line segment. To determine the actual field load, engineers evaluate:
The total weight of the conductor span supported by the single pin.
Maximum anticipated wind velocity applying lateral pressure against the conductor.
Radial ice loads adding dead weight during winter storm conditions.
Line deviation angles where the conductor changes direction on the pole, creating massive lateral forces.
The practical realities of line stringing introduce unique stresses. When crews pull heavy conductors across the insulator heads during installation, they generate significant bending and torsional forces. Tying the conductor to the insulator neck also applies twisting stress to the pin spindle and the insulator body.
Composite materials possess different bending limits compared to traditional porcelain. While porcelain is rigid and brittle, fiberglass cores exhibit slight flexibility. Excessive bending stress during installation can cause microscopic delamination within the fiberglass matrix, weakening the core long before it ever faces a storm. Utilities must enforce strict installation guidelines, ensuring crews use proper stringing blocks and avoid using the insulator itself as a pulley during conductor tensioning.
Deploying a Pin Composite Insulator requires absolute confidence in the manufacturing process. Buyers must audit suppliers and demand undeniable proof of reliability to avoid catastrophic network failures.
International standards like IEC 61952 and ANSI C29.13 dictate strict testing protocols. Non-negotiable type tests validate the fundamental design, including lightning impulse tests, wet power frequency withstand tests, and thermal mechanical pre-stressing. These tests prove the engineering blueprint works.
Routine and sample tests verify batch consistency. Manufacturers must perform mechanical load tests on every batch to verify SCL ratings. Galvanizing tests ensure adequate zinc coating thickness on the fittings. Visual inspections catch surface defects, molding flash, or improper shed alignment. Procurement teams must request complete, unedited factory acceptance test (FAT) reports for every shipment.
Condition assessment science focuses heavily on detecting microscopic defects before they cause outages. The onset voltage of partial discharges serves as a primary health indicator. Partial discharge occurs when microscopic voids within the housing or the core-housing interface break down electrically under high voltage.
A lower onset voltage indicates severe manufacturing defects, material degradation, or hidden handling damage. If an insulator exhibits partial discharge at normal operating voltages, the internal sparking will slowly erode the silicone and epoxy resin. This erosion generates conductive carbon tracks, eventually leading to a complete internal short circuit. Advanced factory testing utilizing partial discharge measurement equipment filters out these defective units before shipping.
Power utilities require strategies for long-term condition monitoring. Unlike porcelain, which often fails visibly by shattering, composite insulators can fail internally while looking perfectly intact from the ground. Utilities utilize daytime UV corona cameras and infrared thermography to inspect active lines. Hot spots or visible corona activity indicate internal tracking or severe surface degradation.
Utilities assess the end-of-life phase by monitoring the loss of hydrophobicity and the stiffening of the silicone rubber. When the housing becomes brittle, cracks, or permanently loses its water-repellent properties, the insulator has reached the end of its reliable service life. Proactive replacement programs schedule change-outs based on these condition assessments, preventing mechanical or electrical failures during severe weather events.
Vetting manufacturers requires a comprehensive audit checklist. Relying on a slick brochure guarantees failure. Procurement teams must verify ISO 9001 and ISO 14001 certifications. The supplier must demonstrate a proven track record of deploying insulators in climates similar to the target installation area.
In-house testing laboratory capabilities are mandatory. If a supplier outsources all routine testing, they lack control over their daily production quality. Assess supply chain stability and demand transparency in raw material sourcing. Knowing exactly where the manufacturer procures their HTV silicone and ECR glass fibers provides a clear picture of the final product's reliability.
Successful procurement of Composite Pin Insulator units hinges entirely on prioritizing verified material science, rigorous mechanical testing, and lifecycle predictability over the lowest initial unit cost. The operational risks of deploying substandard insulation hardware far outweigh any short-term budget savings. A single cascading failure wipes out years of procurement efficiency.
The shortlisting logic remains straightforward. Verify the integrity of the ECR fiberglass core to prevent brittle fracture. Demand premium HTV silicone rubber to guarantee long-term hydrophobicity and UV resistance. Accurately match the creepage distance to your specific pollution severity zones. Finally, strictly audit the supplier's acoustic crimping processes and routine factory testing protocols.
Procurement teams must take immediate, concrete steps before finalizing bulk contracts:
Request complete, independent type test reports from internationally recognized laboratories.
Order sample units specifically for destructive mechanical and adhesion testing.
Establish clear warranty terms and define exact end-of-life assessment criteria with the manufacturer.
Conduct a virtual or physical audit of the supplier's in-house testing laboratory.
A: High-quality silicone pin insulators typically last 15 to 25 years in the field. The exact lifespan depends heavily on environmental factors, UV exposure severity, and the quality of the HTV silicone used. Regular condition assessments, such as checking for hydrophobicity loss or surface chalking, help utilities determine the exact end-of-life phase for specific deployment zones.
A: Mechanical strength is verified through strict factory sample testing. Manufacturers conduct destructive cantilever load tests to confirm the Specified Cantilever Load (SCL). Additionally, acoustic emission testing is utilized during the crimping phase of manufacturing to ensure the metal fittings are securely attached without crushing or damaging the internal fiberglass core.
A: Coastal areas demand extended creepage distances to combat heavy salt fog contamination. The insulator must utilize premium HTV silicone rubber for rapid hydrophobicity recovery, preventing salt-laden moisture from forming conductive films. Furthermore, hot-dip galvanized steel fittings with maximum zinc coating thickness are mandatory to prevent rapid corrosion from the salty air.
A: Yes, they serve as direct drop-in replacements. Utilities must ensure dimensional compatibility, specifically matching the spindle thread size and base dimensions. OEM customization allows manufacturers to match existing crossarm infrastructure perfectly. Engineers must also account for the massive weight reduction when updating pole structural load calculations.
A: Premature failure usually stems from moisture ingress due to poor interfacial sealing between the core and housing. This leads to internal electrical tracking or brittle fracture of the fiberglass core. Inferior housing materials that lack UV resistance also cause early degradation. Finally, micro-damage from improper handling during transport or installation frequently initiates early tracking.
A: The Specified Cantilever Load (SCL) is the ultimate failing load—the exact force that causes the insulator to break or permanently deform during destructive testing. The Maximum Design Cantilever Load (MDCL) is the safe continuous working load the insulator can bear throughout its lifespan, typically rated at 50% of the SCL.
