Views: 0 Author: Site Editor Publish Time: 2026-10-28 Origin: Site
Overhead distribution networks face escalating reliability demands. Utility engineers must re-evaluate legacy infrastructure materials in medium-voltage (MV) lines to ensure uninterrupted electricity transmission. Traditional porcelain and glass insulators are prone to mechanical brittleness, high freight costs, and catastrophic pollution-induced flashovers. These failures lead to increased maintenance cycles, grid downtime, and compromised public safety. Transitioning to a Composite Pin Insulator addresses these vulnerabilities. It combines high-tensile fiberglass cores with weather-resistant polymer housings. This fundamentally shifts the lifecycle cost, enhances electrical isolation to prevent circuit shocks, and improves the operational reliability of overhead distribution.
Drastic Weight Reduction: Composite units weigh up to 70% less than porcelain equivalents, significantly lowering freight costs, reducing structural load on crossarms, and accelerating installation.
Superior Contamination Performance: Hydrophobic silicone housings actively resist water filming, drastically reducing leakage currents and the risk of pollution flashovers in industrial or coastal environments.
Enhanced Mechanical Durability: Utilizing an FRP (Fiberglass Reinforced Plastic) core yields exceptional axial tensile strength (often exceeding 600MPa), eliminating the brittleness and handling breakage associated with ceramics.
The structural foundation of any modern polymer insulator relies on the pultruded continuous fiberglass rod. This internal core provides the mechanical load-bearing capacity. It serves as the primary electrical isolation barrier between the energized conductor and the grounded crossarm. Manufacturing this core involves pulling continuous glass fibers through a resin bath and curing them under high heat. High-quality cores utilize ECR-glass to prevent brittle fracture. Brittle fracture happens when acidic moisture attacks the glass fibers under mechanical tension.

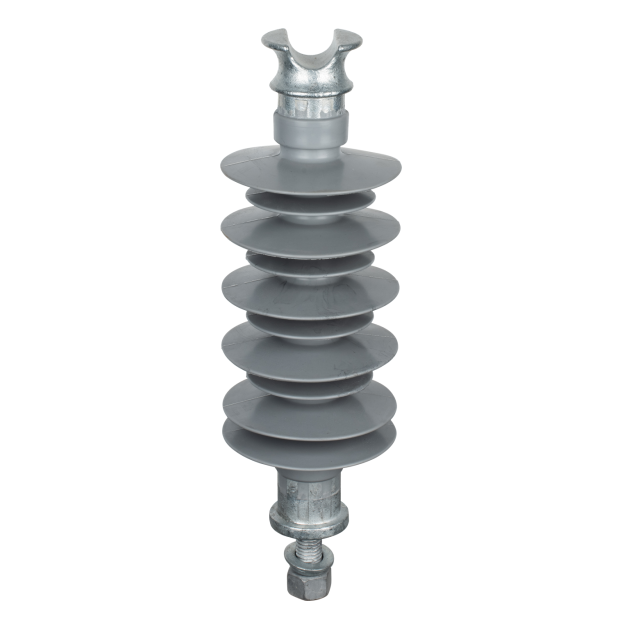

When specifying a High Strength Composite Pin Insulator, axial tensile strength remains the primary performance metric. The FRP core's tensile strength generally exceeds 600MPa. This rating is five to ten times greater than the strongest high-strength porcelain available. Such immense strength allows for uniform mechanical load distribution. The insulator withstands extreme conductor tension, heavy ice accumulation, and violent wind shear without snapping.
The interface between the FRP core and the metal end fittings requires precise engineering. Manufacturers use advanced multi-directional crimping technology to attach forged steel or aluminum fittings to the fiberglass rod. Proper crimping prevents mechanical failure and ensures long-term stability under dynamic conductor loads. Acoustic emission monitoring during the crimping process guarantees the applied pressure does not crush the internal glass fibers. This maintains the structural integrity of the entire assembly.
The external polymer sheath protects the internal FRP core from environmental degradation, UV tracking, and moisture ingress. Without this protective housing, the fiberglass resin degrades rapidly under continuous exposure to sunlight and atmospheric moisture. The housing is applied using high-temperature vulcanization (HTV) or liquid silicone rubber (LSR) injection molding. This process creates a seamless, void-free bond between the core and the sheds. A void-free interface prevents internal partial discharges.
A true Hydrophobic Silicone Pin Insulator relies on specific chemical properties to maintain surface resistance. The silicone matrix contains low-molecular-weight (LMW) siloxanes. These siloxanes continuously migrate from the bulk material to the surface. This migration maintains exceptional water repellency even when heavy layers of industrial dust, salt, or agricultural chemicals accumulate on the weather sheds. Manufacturers mix Alumina Trihydrate (ATH) into the silicone formulation. This additive acts as a flame retardant. It significantly improves the material's resistance to electrical tracking and erosion during dry-band arcing events.
Understanding pollution flashover mechanics requires comparing hydrophilic and hydrophobic surfaces. Hydrophilic surfaces, like traditional porcelain and toughened glass, allow atmospheric moisture to spread out. They form continuous conductive films. When airborne contaminants mix with this water film, leakage currents flow easily across the insulator surface. This generates heat, evaporates the moisture in narrow bands, and causes dry-band arcing. If the arcing bridges the entire insulator, a catastrophic flashover occurs. This trips the circuit breaker and causes an outage.
Hydrophobic surfaces force water to bead up into isolated droplets. This breaks the conductive path and prevents leakage currents from forming. A Pollution Resistant Composite Pin Insulator excels in high-salinity coastal areas and heavy industrial zones. Airborne contamination levels in these areas are extreme. Utilities operating in these harsh environments can eliminate routine insulator washing and greasing programs. Removing the need for specialized washing trucks and helicopter spraying translates directly into massive operational efficiency gains. It drastically reduces grid maintenance hours.
Polymers possess inherent shock-absorbing characteristics that ceramics lack entirely. Porcelain is extremely brittle. A sudden impact concentrates stress at a single point, causing the entire unit to shatter. Composite materials do not shatter upon impact. The flexible silicone sheds and the high-tensile fiberglass core absorb and distribute mechanical loads evenly across the unit.
Reducing vandalism-related outages serves as a primary reliability metric for public utilities. In many rural areas, insulators are frequently targeted by hunters or vandals throwing rocks. A bullet strike obliterates a porcelain pin insulator. It drops the live conductor onto the crossarm and causes an immediate fault. A similar strike on a polymer unit may tear a weather shed, but the FRP core typically remains intact. It holds the conductor safely aloft until crews schedule a replacement. These units offer robust cantilever strength and dynamic load handling during extreme weather events. When ice loading and high winds induce severe galloping in the conductors, the slight flexibility of the composite pin prevents the mounting hardware from tearing out of the crossarm.
Specifying a Lightweight Polymer Pin Insulator introduces significant logistical and ergonomic benefits. A standard 33kV porcelain pin insulator weighs upwards of 15 kilograms. Lifting and maneuvering this dead weight at the end of a bucket truck boom places immense physical strain on linemen. The composite equivalent weighs approximately 3 to 4 kilograms.
This drastic weight reduction improves installation ergonomics. It reduces shoulder and back injuries among field crews. Lighter units lead to faster installation times. Crews string more miles of line per day. Service vehicles transport significantly more units per trip without exceeding vehicle payload limits. Secondary structural benefits emerge during the line design phase. Engineers utilize lighter crossarms or safely increase the span lengths between poles. The dead-end and tangent structures carry significantly less material weight.
Performance Metric | Traditional Porcelain Pin Insulator | Composite Polymer Pin Insulator |
|---|---|---|
Average Weight (33kV) | 12 - 15 kg | 3 - 4.5 kg |
Surface Wetting | Hydrophilic (Forms water films) | Hydrophobic (Beads water) |
Impact Resistance | Low (Shatters easily) | High (Absorbs shock, tears locally) |
Axial Tensile Strength | Moderate | Exceptionally High (600MPa+) |
Maintenance Requirement | Frequent washing in polluted areas | Self-cleaning, zero washing |
The hydrophobicity transfer phenomenon represents the most significant advantage of silicone rubber over other polymer blends. When pollution particles land on a silicone shed, the low-molecular-weight siloxanes diffuse out of the rubber. They encapsulate the dirt layer. This chemical process renders the dirt layer itself water-repellent. Even if the insulator looks filthy, it continues to bead water and resist leakage currents.
During periods of severe electrical stress, such as heavy corona discharge or prolonged dry-band arcing, the surface temporarily loses its hydrophobicity. The intense heat and UV radiation generated by the arcs burn off the surface siloxanes. High-quality silicone exhibits a unique recovery mechanism. Once the electrical stress subsides, fresh siloxanes migrate from deep within the bulk material to the surface. The insulator fully recovers its water-repellent properties within 24 to 48 hours. This ensures long-term reliability without human intervention.
High UV indices pose severe material degradation risks for inferior plastics. Continuous exposure to intense sunlight causes chalking, cracking, and loss of mechanical flexibility in poor-quality polymers. Premium silicone formulations are inherently highly resistant to UV radiation. The strong silicon-oxygen bonds in the polymer backbone require significantly more energy to break than the carbon-carbon bonds found in standard plastics.
Comparing thermal expansion coefficients reveals another distinct advantage over ceramics. Porcelain insulators consist of the ceramic body, a metal pin, and a cement binder holding them together. Each of these materials expands and contracts at different rates when exposed to temperature fluctuations. Rapid freeze-thaw cycles cause the cement to expand faster than the porcelain. This leads to micro-cracking and eventual structural failure. Composite insulators utilize flexible silicone interfaces that easily absorb thermal expansion differences. They handle extreme temperature swings, from -40°C in arctic environments to +50°C in desert climates, without suffering from thermal fatigue.
Procurement departments often weigh the upfront cost parity or slight premium of high-quality composite units against commodity porcelain. The true value emerges in the operational expenditure (OpEx) savings. Utilities experience zero breakage during transit. Porcelain typically suffers a 3% to 5% breakage rate before it even reaches the pole. Eliminating washing schedules and reducing outage penalties heavily skews the financial model in favor of polymers.
Original Equipment Manufacturer (OEM) procurement flexibility adds further value. Utilities partner with manufacturers to customize pin dimensions, shed profiles, and creepage distances. This meets specific regional grid standards without exorbitant tooling costs. Adjusting an injection mold for a polymer insulator is vastly simpler than altering the complex drying and firing processes required for ceramics.
The substantial weight reduction of polymer units directly impacts global and domestic freight logistics. Shipping heavy porcelain requires massive wooden crates and specialized shock-absorbing packaging to prevent transit damage. Lighter shipments require less fuel, fewer trucks, and standard palletizing methods. You fit significantly more composite units onto a single shipping container or flatbed trailer. This streamlines the entire supply chain.
In utility warehouses, inventory loss due to handling damage drops to near zero. Traditional ceramics suffer a consistent breakage rate during transit, staging, and loading. Dropping a porcelain insulator off a loading dock results in a total loss. Dropping a composite insulator results in a slight bounce with zero functional damage. This eliminates the notorious porcelain graveyards found at the back of many utility storage yards.
While completely shatterproof, the silicone housing remains susceptible to cuts, gouges, or tearing if handled improperly. Field crews accustomed to rugged porcelain sometimes use sharp tools to pry tie wires. They might drag the units across abrasive asphalt. Some linemen use the weather sheds as load-bearing steps when climbing poles. These actions compromise the protective sheath.
If the silicone housing is sliced deeply enough to expose the internal fiberglass core, moisture enters the unit. Once moisture reaches the FRP rod, electrical tracking occurs along the core-housing interface. This eventually leads to brittle fracture and mechanical collapse. Mitigation requires updated lineman training protocols. Crews must focus on polymer-specific handling.
Keep units in their protective plastic sleeves until they reach the crossarm.
Use proper synthetic rigging slings instead of steel chokers.
Strictly avoid using the sheds for leverage or footing during installation.
Inspect the housing for any deep gouges before mounting the conductor.
The market influx of poorly manufactured composites presents a significant risk to grid reliability. Inferior units often suffer from poor core-to-housing bonding. If voids exist between the fiberglass rod and the silicone sheath, partial discharge occurs inside the insulator during normal operation. This internal arcing eats away at the FRP core. It creates carbonized tracks that eventually cause the insulator to fail mechanically and electrically.
Mitigation demands strict adherence to international testing standards during the procurement phase. Utilities must establish rigorous procurement criteria requiring full compliance with IEC 61952 or ANSI C29.13 standards. Grid operators demand certified design test reports from independent laboratories. Engineers verify the water diffusion test results to ensure the core resists moisture. They review tracking and erosion resistance tests to validate the quality of the silicone formulation. Inspecting the crimp seal integrity and requesting batch-testing data for axial tensile strength ensures only high-quality units enter the distribution network.
The transition to composite pin insulators is technically justified for modern medium-voltage distribution networks. These advanced units perform exceptionally well in high-pollution environments, areas prone to vandalism, and difficult-to-access terrain where maintenance is challenging. By eliminating the brittleness of porcelain and leveraging the hydrophobic properties of silicone, utilities drastically improve grid reliability and operational efficiency. Procurement teams prioritize manufacturers that provide transparent testing data on FRP core strength, silicone housing composition, and crimp seal integrity.
To successfully integrate these insulators into your grid, follow these next steps:
Initiate a pilot installation in a known high-pollution corridor to monitor field performance and validate leakage current reductions.
Request detailed technical datasheets from Tier-1 manufacturers to verify material specifications and compliance with international standards.
Conduct a localized logistical analysis comparing freight volumes, storage requirements, and installation times between legacy ceramics and modern polymers.
Update internal handling guidelines and conduct training sessions for field crews to prevent accidental sheath damage during construction.
A: Pin insulators are typically used for lower voltage distribution lines up to 33kV and mount on a forged steel or lead-threaded spindle. Post insulators are designed for higher mechanical loads and higher voltages. They feature a solid, flat base mounting system, making them ideal for heavy conductor angles, substation busbar supports, and transmission applications requiring extreme cantilever strength.
A: High-quality silicone insulators have an expected service life of 20 to 30 years or more. This lifespan depends heavily on environmental factors such as UV exposure levels, continuous electrical stress, and the manufacturer's strict adherence to international testing standards. Proper handling during installation also plays a crucial role in maximizing longevity in the field.
A: The Fiberglass Reinforced Plastic core provides the necessary axial tensile strength, often exceeding 600MPa. This is five to ten times stronger than traditional porcelain. It acts as the structural backbone, bearing the entire mechanical load of the conductor, resisting wind shear, and ensuring cantilever stability under dynamic weather conditions.
A: Standard lineman tools are generally used, but crews must avoid sharp objects or improper rigging techniques. Slicing or gouging the silicone weather sheds leads to moisture ingress and internal tracking. Slight adjustments in handling procedures, such as using synthetic slings and keeping units in protective sleeves until mounted, prevent accidental damage.
A: The hydrophobic nature of the silicone housing forces water to bead up into isolated droplets rather than forming a continuous conductive film. This physical barrier prevents leakage currents from crossing the insulator surface. It stops dry-band arcing and flashovers even when the unit is covered in heavy industrial dust or coastal salt fog.
A: They do not shatter like glass or porcelain when struck by rocks or projectiles, but severe physical damage can still occur. If a bullet or sharp impact tears the silicone housing deeply enough to expose the internal FRP core to atmospheric moisture, the unit's electrical integrity is compromised. This necessitates eventual replacement to prevent tracking.
