The shift from ceramic and glass to polymer materials in overhead distribution networks solves major field challenges. Utility operators and construction teams deal with high maintenance demands, grid vulnerabilities, and frequent failures caused by pollution flashovers on aging infrastructure. Heavy porcelain units require massive structural support and constant washing in dirty environments. This drains budgets and forces unnecessary downtime. Specifying a Composite Pin Insulator eliminates these operational headaches. These modern units cut structural pole loads and perform exceptionally well in harsh weather. By using hydrophobic materials and high-strength fiberglass cores, field engineers streamline installation, drop long-term maintenance demands, and build a more resilient overhead distribution network.
Material Superiority: The combination of a Fiberglass-Reinforced Polymer (FRP) core and High-Temperature Vulcanized (HTV) silicone rubber housing provides exceptional hydrophobicity and prevents moisture ingress.
Optimal Application: Highly effective for 11kV to 33kV distribution lines, offering an ideal balance of cantilever strength and lightweight installation for pole-mounted configurations.
Cost and Maintenance Efficiency: Delivers lower operational expenses through reduced breakage during transit, faster installation times, and the elimination of routine washing requirements in polluted environments.
Risk Mitigation: Long-term performance relies heavily on proper environmental grading, correct conductor binding, and, where applicable, corona shielding to prevent premature polymer degradation.

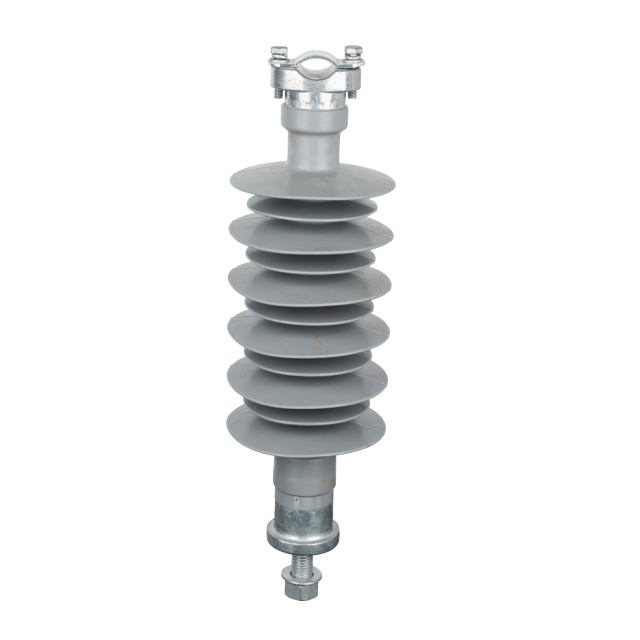

The structural backbone of any composite insulator is the Fiberglass-Reinforced Polymer (FRP) core. Manufacturers use a pultrusion process to align continuous glass fibers within a specialized epoxy resin matrix. This manufacturing technique yields a solid rod with extraordinary tensile and bending strength. The FRP core must support the entire weight of the suspended conductor. It also handles dynamic loads introduced by high winds, ice accumulation, and sudden line tension changes. Unlike brittle ceramic materials, the FRP core offers a degree of flexibility. This elasticity absorbs mechanical shocks and vibrations. It prevents catastrophic structural failure during severe weather events or sudden impact loads. Field crews often notice how this flexibility dampens aeolian vibrations, protecting the conductor from fatigue at the attachment point. We rely on this core to maintain structural integrity over decades of continuous mechanical stress.
Surrounding the FRP core is the High-Temperature Vulcanized (HTV) silicone rubber housing. HTV silicone serves as the primary defense against environmental degradation. Its chemical structure inherently resists ultraviolet radiation, ozone, and extreme temperature fluctuations. The most critical property of HTV silicone is its hydrophobicity. Water beads up on the surface rather than forming a continuous conductive film. This drastically reduces leakage currents and prevents tracking across the insulator surface. Engineers design specific shed profiles to optimize the creepage distance. You will often see alternating large and small sheds on higher voltage units. This geometric arrangement breaks up water flow and prevents continuous water banding. It ensures the underlying FRP core remains protected from moisture and electrical stress.
The connection between the FRP core and the mounting hardware dictates the mechanical reliability of the unit. Manufacturers attach galvanized steel end fittings to the fiberglass rod using multi-directional acoustic crimping technology. This process applies uniform radial pressure. It secures the metal fitting without crushing the internal glass fibers. Achieving a completely void-free seal at this junction is an absolute requirement. Any microscopic gap between the metal, the silicone housing, and the FRP core invites moisture penetration. Moisture ingress at this triple point leads to internal tracking and brittle fracture of the fiberglass rod. Eventually, this causes the mechanical failure of the entire insulator assembly. We always check the galvanization thickness on these fittings to ensure they resist rust in humid or coastal environments.
The upper section of the insulator features specialized top and side groove designs engineered to secure high voltage power lines. These grooves accommodate different conductor sizes and installation angles. Field crews secure the conductor within these grooves using preformed ties or soft binding wires. Proper binding maintains mechanical stability and prevents conductor slippage during wind-induced galloping. Installers must use compatible tie materials and apply correct tension. Over-tightening or using sharp, incompatible wires cuts into the silicone housing. This exposes the FRP core to the elements and compromises the dielectric integrity of the installation.
Establishing baseline electrical requirements is the first step in specification. A standard High Voltage Composite Pin Insulator is engineered to handle specific system voltages, typically ranging from 11kV up to 33kV for pin-type configurations. Dielectric strength determines the insulator's ability to prevent electrical breakdown under normal operating conditions. When selecting a Medium Voltage Pin Composite Insulator, engineers must verify that the dry and wet power frequency flashover voltages exceed the maximum system voltage by a safe margin. This ensures continuous operation even during heavy rainfall or dense fog. You must match the insulator's voltage rating to the specific grid segment to prevent premature flashovers.
Mechanical performance dictates how far apart poles can be spaced and how heavy the conductors can be. The two primary metrics are Specified Cantilever Load (SCL) and Maximum Design Cantilever Load (MDCL). SCL represents the ultimate breaking strength of the insulator under a perpendicular load. MDCL is the maximum continuous load the insulator can safely support over its operational lifespan. We typically calculate MDCL as a percentage of the SCL, often around 40% to 50%. Engineers must calculate the combined weight of the conductor, maximum expected ice loading, and extreme wind pressure. This ensures the selected insulator's MDCL exceeds the worst-case scenario load.
Grid infrastructure must survive sudden electrical surges caused by lightning strikes or switching operations. Benchmark expectations require a 33kV insulator to withstand a lightning impulse voltage of at least 170kV to 190kV. Additionally, it must endure a wet power frequency withstand voltage of approximately 70kV for a sustained period. These metrics guarantee that transient overvoltages will flash over the air gap rather than puncturing the solid insulation material. Verifying these impulse ratings ensures that the distribution network remains resilient. It minimizes localized power outages during severe electrical storms.
Pin insulators do not bolt directly to the crossarm. They thread onto a forged steel spindle. Matching the insulator's internal thread with the spindle is non-negotiable. Modern composite units often utilize cast zinc or high-strength polymer thimbles embedded within the base fitting. The threading must align perfectly with standard spindle dimensions, such as 1-inch or 1-3/8-inch lead threads. This ensures a secure, vibration-resistant fit. A loose connection leads to mechanical wear, increased radio interference voltage, and potential structural failure under heavy wind loads.
The shift toward polymer materials is driven by stark differences in physical and operational characteristics. A Pin Polymer Insulator for Power Distribution weighs up to 90% less than its porcelain counterpart. This weight reduction lowers shipping expenses, reduces the physical strain on installation crews, and decreases the dead load on utility poles. Furthermore, polymer units are shatterproof. They resist vandalism from rock-throwing or accidental impacts during transport, whereas porcelain chips or shatters easily. Operationally, the HTV silicone offers hydrophobicity transfer. If pollution settles on the silicone, low-molecular-weight siloxanes migrate through the dirt layer. This renders the pollution itself water-repellent and maintains high insulation resistance.
Feature | Composite (Polymer) Pin Insulator | Traditional Porcelain Pin Insulator |
|---|---|---|
Weight Profile | Lightweight (up to 90% lighter) | Heavy, requires robust structural support |
Impact Resistance | High (Shatterproof, flexible core) | Low (Brittle, prone to chipping or cracking) |
Pollution Performance | Excellent (Hydrophobic recovery mechanism) | Poor (Requires frequent routine washing) |
Installation Speed | Fast (Easy manual handling by single lineman) | Slow (Often requires lifting equipment) |
Vandalism Susceptibility | Low (Absorbs blunt force impacts) | High (Easily destroyed by projectiles) |
While both pin and post insulators support overhead conductors, their engineering applications differ significantly. Pin insulators are typically deployed for lower distribution voltages, usually between 11kV and 33kV. They feature a threaded base and mount directly onto a steel spindle attached to the pole crossarm. The conductor rests in a top or side groove and is tied in place. Post insulators handle higher mechanical loads and are often used at higher voltages. They feature a flat metal flange at the base and bolt directly to the crossarm or structure. Post insulators utilize a clamp mechanism at the top rather than a tie-wire groove. This provides superior holding strength for heavier conductors and longer span lengths.
The primary deployment environment for these units is standard overhead primary distribution networks. Mounted on utility poles, they safely suspend live conductors. They maintain necessary clearance from the grounded pole structure and surrounding vegetation. Their lightweight nature allows line crews to carry multiple units up a pole simultaneously. This accelerates new line construction and emergency repair operations. In 11kV to 33kV networks, the flexibility of the FRP core helps dampen aeolian vibrations. These high-frequency, low-amplitude wind-induced oscillations can cause severe damage over time. The composite material protects the conductor from fatigue failure at the attachment point.
When designing these networks, engineers must account for specific span lengths and clearance requirements. Typical span lengths for 11kV to 33kV lines range from 50 to 150 meters, depending on the conductor weight and environmental loading factors. The composite pin insulator must maintain strict phase-to-ground clearances to prevent arcing. The lightweight nature of these insulators allows for longer spans without overstressing the crossarms. This reduces the total number of poles required for a new distribution line, optimizing the overall construction budget and accelerating project timelines.
Industrial zones, mining areas, and coastal regions present severe challenges for electrical infrastructure. Airborne contaminants like coal dust, chemical emissions, or salt spray accumulate on insulator surfaces. When combined with light rain or fog, these contaminants form a conductive layer. This leads to leakage currents and eventual flashovers. Deploying a Silicone Pin Insulator for Overhead Lines is highly effective in these zones. The silicone encapsulates salt and dirt particles while maintaining a water-repellent surface. This suppresses leakage currents. This self-cleaning capability eliminates the need for expensive, labor-intensive helicopter washing or manual scrubbing programs required by porcelain insulators.
Many utilities are actively replacing aging, deteriorated porcelain infrastructure. Retrofitting existing crossarms with composite pin insulators offers immediate structural benefits. Because polymer units weigh a fraction of porcelain, utilities can upgrade line capacity. You can install heavier, higher-ampacity conductors without exceeding the existing pole's maximum weight limits. The retrofit process is straightforward. Composite insulators are manufactured with standard spindle threads that match legacy mounting hardware. This plug-and-play compatibility accelerates grid modernization efforts. It rapidly improves network reliability in areas plagued by frequent weather-related outages.
Despite their durability, polymers are susceptible to long-term environmental aging. Prolonged exposure to intense UV radiation, extreme heat, and atmospheric ozone degrades inferior silicone formulations. Symptoms of degradation include chalking, crazing, and erosion of the shed material. Chalking leaves a powdery residue on the surface, while crazing creates micro-cracks. To mitigate this risk, procurement teams must evaluate the quality of the silicone formulation. High-quality HTV silicone includes specific UV inhibitors and alumina trihydrate fillers. These fillers improve tracking and erosion resistance. They ensure the insulator maintains its dielectric properties over a 20-to-25-year operational lifespan.
Corona discharge occurs when the localized electric field exceeds the breakdown strength of the surrounding air. This creates a continuous electrical discharge. While common at transmission voltages, severe corona can occasionally occur on 33kV distribution lines in high-altitude or highly contaminated areas. Continuous corona exposure degrades silicone rubber. It leads to localized burning and material loss. For standard 11kV-33kV pin insulators, corona rings are rarely necessary. However, if the network operates in environments prone to high electrical stress, engineers must assess the electric field distribution. Proper hardware design, smooth end fittings, and avoiding sharp edges on tie wires usually provide sufficient corona mitigation at distribution voltages.
The robust appearance of composite insulators can lead to improper handling by field crews. The FRP core is incredibly strong in tension but can be damaged by severe bending or point-impact loads. A common installation error involves lifting the insulator by its silicone sheds or dragging it across abrasive surfaces. This damages the weather sheds and compromises the hydrophobic surface. Crews must be trained to handle the units by the metal end fittings. Furthermore, dropping a composite insulator causes unseen internal delamination between the FRP core and the silicone housing. This creates a pathway for future moisture ingress and electrical failure.
To prevent field failures, crews must follow strict handling protocols:
Keep the insulators in their original protective packaging until they reach the installation site.
Lift the units exclusively by the metal end fittings, never by the silicone sheds.
Inspect the silicone housing for any cuts, abrasions, or signs of delamination before mounting.
Ensure the spindle threads are clean and free of rust before threading the insulator onto the crossarm.
Apply the correct torque when securing the base to prevent vibration-induced wear over time.
Securing the conductor correctly is vital for long-term performance. Using incompatible tie wires or incorrect binding techniques introduces severe risks. If line workers use bare, sharp-edged wire and over-tighten the binding, the wire slices into the silicone housing. This exposes the fiberglass core to moisture and UV light. Additionally, loose binding allows the conductor to chafe against the polymer groove. This physically erodes the material over time. Utilities should mandate the use of preformed, factory-engineered ties or specialized polymer-coated binding wires. These distribute mechanical stress evenly and protect the insulator's soft silicone exterior.
Selecting the correct profile from a Composite Pin Insulator Product Range requires precise matching of environmental conditions to insulator geometry. The critical metric is the Unified Specific Creepage Distance. We measure this in millimeters per kilovolt. Lightly polluted areas may require a lower creepage distance, while heavy coastal or industrial pollution demands a much higher rating. Buyers must analyze site-specific pollution severity levels. You must select an insulator with an alternating shed profile that provides the necessary creepage distance without making the unit excessively tall or mechanically unstable.
Not all composite insulators are manufactured to the same standards. Procurement teams must enforce strict supplier evaluation criteria. Mandatory compliance with international standards, specifically IEC 61952, is non-negotiable. Buyers should demand comprehensive type test reports from independent, accredited laboratories. Verifying these documents ensures the manufacturer utilizes high-grade materials and reliable crimping processes.
When reviewing IEC 61952 compliance, verify these specific tests:
Dry and wet power frequency flashover tests to confirm baseline dielectric strength.
Lightning impulse voltage withstand tests to ensure resilience against sudden grid surges.
The 1000-hour tracking and erosion test to validate the HTV silicone formulation's durability.
Water diffusion testing on the FRP core to guarantee resistance against internal moisture tracking.
Mechanical load-time verifications to confirm the specified cantilever load ratings.
Evaluating the total lifecycle value reveals significant financial advantages over traditional materials. Procurement teams must look beyond the upfront invoice. Premium composite insulators drastically reduce transportation logistics due to their low weight. They eliminate the high costs associated with breakage during transit and installation. Most importantly, in polluted environments, the self-cleaning properties of silicone eliminate the need for recurring, expensive line washing programs. Factoring in reduced maintenance, faster installation, and fewer pollution-induced power outages, the premium composite option consistently delivers superior long-term financial efficiency.
Initiate a pilot installation program in a high-stress, high-pollution grid sector to monitor hydrophobic performance and leakage current suppression in real-world conditions.
Request detailed mechanical load data from shortlisted manufacturers to ensure compatibility with existing conductor weights and local wind or ice loading standards.
Conduct a comprehensive comparative lifecycle analysis against current porcelain usage, factoring in installation speed, reduced breakage, and the elimination of routine washing maintenance.
Audit field crew installation practices to ensure proper handling techniques and mandate the use of approved, non-damaging preformed ties for conductor binding.
A: Composite pin insulators are standardly designed for medium voltage distribution networks, typically operating up to 33kV. For system voltages exceeding 33kV, utility engineering standards generally require the transition to composite post insulators or suspension insulator strings to handle the increased electrical stress and heavier mechanical loads.
A: HTV silicone performs exceptionally well in polluted environments due to its hydrophobicity transfer mechanism. Low-molecular-weight siloxanes migrate from the bulk silicone into the accumulated dirt or salt layer. This renders the pollution layer water-repellent, preventing continuous moisture films, suppressing leakage currents, and drastically reducing flashover risks.
A: Pin insulators mount via a threaded internal base onto a steel spindle and secure conductors using tie wires in top or side grooves. Post insulators use a flat metal flange bolted directly to the structure and secure conductors with heavy-duty top clamps. Post insulators support higher mechanical loads.
A: The conductor rests inside specifically designed top or side grooves molded into the upper silicone housing. Field crews secure the line firmly within these grooves using factory-engineered preformed ties or specialized, soft-coated binding wires to prevent mechanical slippage without cutting into the polymer material.
A: When manufactured with high-quality HTV silicone and installed correctly, a composite pin insulator has an expected operational lifespan of 15 to 25 years. The exact duration depends heavily on environmental severity, UV exposure levels, and the absence of continuous corona discharge or mechanical mishandling.
A: Primary degradation factors include prolonged exposure to intense UV radiation, continuous corona discharge, severe industrial or saline pollution, and atmospheric ozone. Mechanical factors, such as improper handling during installation or using sharp binding wires that cut the silicone housing, also accelerate moisture ingress and premature failure.
A: Corona rings are rarely required for medium voltage pin insulators operating between 11kV and 33kV, as the electric field gradients at these voltages are generally too low to initiate sustained corona discharge. Corona rings become critical protective hardware at higher transmission voltages.
