Modern power grids demand highly reliable components to maintain continuous operation. Traditional porcelain and glass insulators face significant challenges in harsh environments. Utility engineers must balance strict mechanical load requirements against severe environmental threats. They constantly battle coastal pollution, extreme UV degradation, and damaging freeze-thaw cycles. Preventing unplanned outages remains the top priority for grid operators worldwide. Understanding the exact mechanical and electrical operating principles of a Composite Pin Insulator is absolutely essential. This technical knowledge helps engineers evaluate component viability accurately. It allows teams to specify the correct hardware for complex overhead distribution networks. You will learn how these advanced devices function under extreme stress. You will discover how to evaluate their performance metrics against traditional materials. You will also learn specific strategies to mitigate implementation risks during network upgrades.
Dual-Component Functionality: Composite insulators separate mechanical and electrical duties; a fiberglass core handles the physical load, while a silicone rubber housing provides the dielectric barrier and weather protection.
Superior Pollution Performance: The inherent hydrophobicity of silicone rubber prevents continuous water film formation, drastically reducing leakage currents and flashover risks in coastal, humid, or industrial environments.
Logistical Efficiency: Weighing up to 90% less than traditional porcelain equivalents, polymer alternatives reduce installation time, transportation costs, and structural strain on utility poles.
Risk Mitigation: While highly durable, improper handling or incorrect specification of creepage distances can lead to premature aging, tracking, or core exposure, requiring strict adherence to IEC/ANSI standards during procurement.
Engineers must understand physical construction to evaluate failure risks accurately. The internal and external design directly dictates the operational capacity of the unit. You cannot predict field performance without analyzing the individual materials. We break down the three primary components that make up these units.

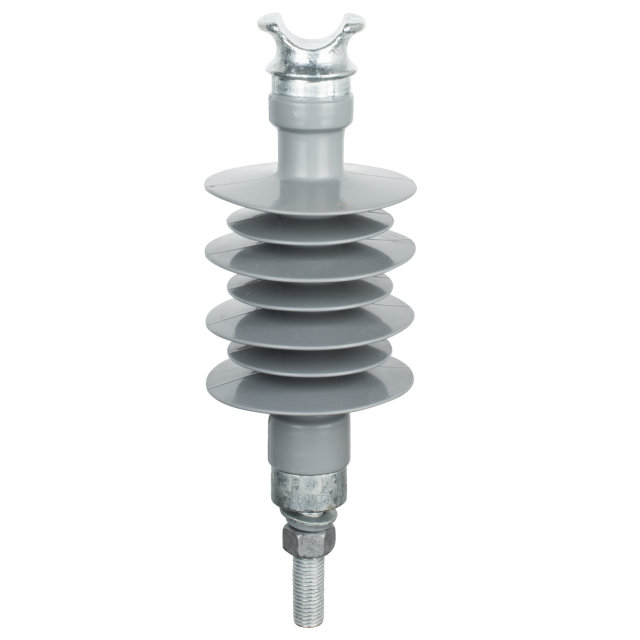

The core consists of tightly packed, resin-impregnated glass fibers. It acts as the structural backbone of the entire assembly. A Fiberglass Core Composite Pin Insulator achieves massive tensile and cantilever strength. It completely avoids the inherent brittleness found in ceramic materials. Manufacturers create this core using a highly controlled pultrusion process. This method pulls continuous glass fiber rovings through a specialized resin bath. The resin is typically a high-grade epoxy matrix. The saturated fibers then enter a heated steel die. Heat cures the epoxy instantly, creating a solid, void-free cylindrical rod. The unidirectional alignment of the glass fibers maximizes bending strength. This alignment allows the insulator to handle severe side loads from heavy conductors. It also prevents internal air pockets. Air pockets cause internal partial discharges under high voltage stress. A perfectly solid core guarantees long-term mechanical stability. The manufacturing process follows strict parameters to ensure quality:
Fiber tensioning ensures all glass rovings pull evenly without slack.
Resin impregnation occurs in a vacuum environment to eliminate microscopic air bubbles.
Thermal curing locks the fibers into a rigid, permanent matrix.
Precision cutting sizes the rod to the exact required length for the specific voltage class.
The external housing protects the sensitive internal core from environmental destruction. Manufacturers rely on High-Temperature Vulcanized (HTV) silicone rubber for this layer. HTV silicone vastly outperforms older, rigid epoxy-based polymer housings. A modern Silicone Rubber Pin Insulator completely shields the fiberglass from UV radiation. It stops moisture ingress and prevents aggressive chemical degradation. The housing features a highly aerodynamic weather shed design. Engineers call these alternating discs petticoats. These petticoats optimize the surface creepage distance. They physically disrupt continuous water flow during heavy rainstorms. The silicone material contains specialized chemical fillers like alumina trihydrate (ATH). ATH improves resistance to electrical tracking and surface erosion. When an electrical arc heats the surface, ATH releases water vapor. This vapor cools the arc and prevents the silicone from burning. This chemical reaction protects the housing during severe electrical storms. The injection molding process bonds the silicone directly to the primed fiberglass core. This creates a seamless interface that blocks moisture penetration.
Metal end fittings connect the insulator securely to the pole and conductor. The physical interface between the core, housing, and fittings requires exact engineering. Factories utilize a precision crimping process to attach these components. They compress galvanized steel or forged aluminum fittings directly onto the fiberglass rod. The applied crimping force must remain exact. Excessive pressure crushes the internal glass fibers and ruins the core. Insufficient pressure causes mechanical slip under heavy conductor loads. Manufacturers use acoustic emission sensors during the crimping process. These sensors listen for the microscopic sound of breaking glass fibers. This ensures the crimp pressure stays within safe operational limits. Sealing systems protect the triple point. This point is where the metal, core, and housing intersect. High-quality silicone sealants stop moisture from reaching the exposed core. Moisture ingress at this junction often causes catastrophic brittle fracture.
Physical anatomy translates directly into active field performance. The materials work together to manage extreme electrical and physical stress.
The primary electrical function of the device is straightforward. It prevents current flow from the live conductor to the grounded support structure. Composite materials provide exceptional dielectric strength. They resist electrical puncture even under massive voltage surges. The silicone housing acts as the primary external barrier. The fiberglass core provides the secondary internal insulation layer. Proper chemical bonding between the core and housing eliminates microscopic air gaps. Air gaps allow internal partial discharges to form. These discharges slowly degrade the surrounding insulation material over time. A flawless bond ensures the electric field distributes evenly across the unit. This even distribution prevents localized electrical stress points. It keeps leakage currents well below dangerous thresholds. Engineers test this dielectric strength using steep-front impulse voltage tests. These tests simulate direct lightning strikes on the overhead line.
Silicone rubber exhibits highly unique hydrophobic properties. Water instantly beads up on the surface instead of forming a continuous film. This prevents conductive water paths from forming across the insulator. Silicone also demonstrates a phenomenon called hydrophobicity transfer. Low molecular weight siloxanes migrate from the bulk material to the surface. They physically encapsulate dirt, salt, and industrial pollutants. This chemical action keeps the contamination layer completely non-conductive. Flashover risks drop significantly in coastal and heavily polluted environments. Traditional materials fail rapidly under these exact conditions. Engineers measure this performance using the STRI hydrophobicity classification system. A rating of HC1 indicates perfect water repellency. Even after severe pollution exposure, silicone recovers its hydrophobicity within hours. This recovery mechanism prevents dry band arcing during light rain or morning fog.
An Overhead Distribution Pin Insulator manages highly complex mechanical forces. It primarily handles cantilever or bending loads from the attached conductor. The flexible nature of the composite structure absorbs sudden mechanical shocks. It responds dynamically to high winds, heavy ice loading, and conductor vibration. Porcelain insulators often shatter instantly under sudden physical impact. Polymer units flex slightly and return to their original shape. This flexibility reduces stress on the utility pole and the wooden crossarm. It improves overall structural resilience during severe weather events. Engineers calculate the Maximum Design Cantilever Load (MDCL) carefully. They ensure the unit never exceeds its structural limits during winter storms. The composite design prevents the catastrophic drop of live conductors.
Engineers face conceptual trade-offs between composite, porcelain, and glass options. You must evaluate these materials based on real-world operational factors.
Specifying a Polymer Pin Insulator drastically reduces overall component weight. These units weigh up to 90% less than equivalent porcelain models. A heavy 15kg porcelain unit is replaced by a 2kg polymer alternative. This massive weight reduction creates significant downstream logistical savings. Shipping fees decrease rapidly due to lighter cargo loads. Linemen handle the units easily without requiring heavy lifting equipment. Installation times drop considerably across the entire project. Crews can carry multiple units up a pole simultaneously. The reduced dead weight also extends the lifespan of aging wooden utility poles. It lowers the center of gravity on the crossarm. This makes the entire pole structure more stable during high wind events.
Composite materials offer superior durability against blunt force trauma. They survive accidental drops during transport and rough handling on site. Vandalism remains a major issue for rural and remote power lines. Ballistic impacts from hunting rifles easily shatter ceramic insulators. Shattered porcelain drops the live line directly to the ground. Polymer units simply puncture without suffering total structural failure. The non-shattering failure mode provides a distinct operational advantage. Freeze-thaw cycles also compromise ceramic materials over time. Water enters microscopic cracks, freezes, expands, and splits the porcelain. Silicone rubber easily expands and contracts. It ignores these extreme temperature fluctuations completely. This resilience prevents spontaneous winter failures.
Procurement teams must compare upfront specifications against long-term maintenance needs. A modern Pin Insulator requires minimal ongoing intervention from line crews. Polluted areas often force utilities to wash porcelain insulators regularly. This washing process requires specialized bucket trucks, demineralized water, and intensive labor. Silicone rubber eliminates these routine washing cycles entirely. Its self-cleaning properties maintain electrical performance naturally. Removing maintenance washes directly improves operational efficiency for the utility. Crews can focus their time on critical grid upgrades instead of routine cleaning. The reduction in truck rolls also lowers the carbon footprint of the maintenance department. It keeps personnel out of hazardous high-voltage environments.
You must align product specifications with specific grid requirements. Proper evaluation ensures field success and prevents premature component failure.
Assess site conditions carefully before making a final selection. Consider coastal salt fog, industrial chemical emissions, and high ambient humidity. Evaluate high altitude locations and extreme UV exposure levels. Select the appropriate shed profile based on the environmental severity. Standard profiles work well in clean or moderately polluted environments. Alternating shed profiles perform much better in heavy industrial pollution. They prevent dirty water from bridging between adjacent petticoats. Highly polluted sites require materials with maximum tracking resistance. Engineers measure site pollution using Equivalent Salt Deposit Density (ESDD). They also measure Non-Soluble Deposit Density (NSDD). High ESDD and NSDD values mandate the use of premium HTV silicone. Field teams follow specific steps to profile a new installation site:
Collect pollution samples from existing un-energized dummy insulators.
Measure the conductivity of the dissolved pollutants to determine ESDD.
Weigh the remaining non-soluble particulate matter to determine NSDD.
Cross-reference the combined data with IEC 60815 pollution severity classes.
Select the minimum required specific creepage distance based on the final classification.
Adherence to strict industry standards ensures long-term reliability. Critical standards include IEC 61952 and ANSI C29.13. You must request mandatory type tests from all potential manufacturers.
Test Type | Primary Purpose | Standard Reference |
|---|---|---|
Tracking and Erosion Test | Evaluates housing resistance to electrical surface degradation and arcing. | IEC 62217 |
Mechanical Load Test | Verifies cantilever strength, bending limits, and crimp joint integrity. | IEC 61952 |
Water Diffusion Test | Checks core resistance to moisture penetration and internal hydrolysis. | IEC 62217 |
Dye Penetration Test | Ensures no capillary voids or cracks exist within the fiberglass rod. | IEC 61952 |
Steep-Front Impulse Test | Verifies the internal dielectric strength and core-housing bond quality. | IEC 61211 |
These tests validate the fundamental design and manufacturing quality. Never accept products lacking independent laboratory certification. In-house testing reports often lack the rigorous oversight required for grid-level deployment.
Overhead distribution networks typically operate between 11kV and 52kV. The system voltage dictates the physical dimensions of the insulator. Calculate the required specific creepage distance carefully. Base this calculation on the system voltage and the local pollution level. Engineers use the Unified Specific Creepage Distance (USCD) methodology. Extending the creepage distance improves pollution performance significantly. However, excessively long insulators lose mechanical rigidity. They become susceptible to severe bending under heavy wind loads. Balance electrical clearance requirements with structural limitations during the specification phase. Ensure the dry arcing distance meets the basic impulse insulation level (BIL) requirements.
Address adoption realities to prevent premature field failures. Even the best materials fail if handled or installed incorrectly.
Improper rigging easily damages the soft silicone housing. Dragging units across rough ground exposes the internal fiberglass core. Exposed cores lead to rapid environmental degradation and structural collapse. Implement strict best practices for storage and handling. Keep units in their original protective packaging until the exact moment of installation. Avoid prolonged compression under heavy objects in the storage yard. Keep them far away from aggressive chemicals, oils, and solvents. Train line crews on proper hoisting techniques. They must use soft synthetic slings instead of abrasive wire ropes. Never lift the insulator by the weather sheds.
Higher voltage applications introduce severe corona discharge risks. Corona occurs at the hardware interface where electric fields concentrate heavily. Continuous corona creates ozone, which chemically degrades the silicone material over time. Mitigate this through proper hardware design and selection. Ensure all end fittings have smooth, rounded edges to grade the electric field. Standard distribution pin insulators rarely need external corona rings. However, variants approaching the 52kV threshold might require them. Evaluate electric field modeling reports from the manufacturer. Confirm that the electrical stress remains below the corona inception voltage. Proper field grading prevents the silicone from turning brittle and cracking.
Visual inspection of composite insulators proves highly difficult. Glass and porcelain shatter obviously when compromised, making identification easy. Polymer units degrade subtly over many years. Look closely for tracking, erosion, and chalking on the housing surface. Chalking occurs when UV radiation turns the surface powdery. Brittle fracture remains the most severe hidden risk. This occurs when nitric acid attacks the fiberglass core due to moisture ingress. Utilize modern diagnostic techniques for accurate condition monitoring. Solar-blind UV cameras detect invisible corona discharges during daylight hours. Hydrophobicity classification testing reveals surface degradation levels before failure. Regular, targeted inspections catch early warning signs before total structural collapse occurs.
Audit manufacturer testing facilities to verify precision crimping and pultrusion quality controls before placing bulk orders.
Request independent laboratory type test reports confirming strict IEC 61952 and ANSI C29.13 compliance for all proposed units.
Conduct a pilot installation in a high-stress, highly polluted environment to monitor real-world performance before executing a network-wide rollout.
Train installation crews on proper handling techniques using synthetic slings to prevent accidental damage to the silicone housing.
Implement a baseline UV camera inspection program to monitor electric field stress and corona discharge after initial energization.
A: A high-quality unit typically lasts 15 to 25 years in the field. This lifespan depends heavily on environmental factors, UV exposure levels, and manufacturing quality. Severe industrial pollution or improper installation practices can reduce this timeframe significantly.
A: The material exhibits hydrophobicity transfer. Low molecular weight siloxanes migrate to the surface and encapsulate salt and dirt. This prevents conductive water tracks from forming, even in dense fog or high humidity, drastically reducing flashover risks.
A: Both utilize polymer materials, but High-Temperature Vulcanized (HTV) silicone offers superior performance. Silicone provides excellent hydrophobicity, better tracking resistance, and higher UV resilience for outdoor overhead lines compared to older, rigid epoxy resins.
A: Yes, they offer direct interchangeability with traditional units. Their lighter weight provides a significant advantage. It reduces the mechanical strain on existing wooden crossarms and aging utility poles, extending the infrastructure's usable life.
A: Primary failure modes include moisture ingress at the metal end fittings. This moisture reacts with electrical stress to cause brittle fracture of the core. Severe electrical tracking and erosion of the silicone housing can also lead to failure.
A: No. Unlike porcelain, the self-cleaning and hydrophobic nature of silicone rubber generally eliminates the need for periodic washing. This provides a massive operational advantage in highly polluted or coastal regions.
A: Line crews conduct visual inspections for chalking or crazing. They use hydrophobicity spray testing to check water repellency. Engineers also utilize daytime corona cameras to detect invisible electrical discharges at the hardware interface.
