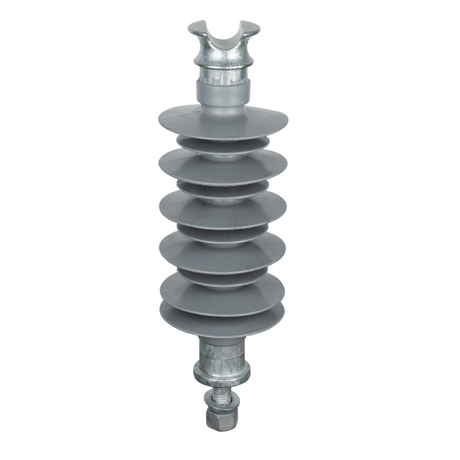

Selecting the correct voltage rating for overhead line insulators goes far beyond a simple matching exercise. Under-specifying risks catastrophic flashovers and network outages. Over-specifying inflates capital expenditure and introduces unnecessary mechanical strain on support structures. Engineers and procurement teams must balance nominal system voltages against transient overvoltages. You also need to account for environmental pollution severity and mechanical load limits specific to pin-type geometries. This guide provides a technical evaluation framework. It helps determine the precise voltage requirements, creepage specifications, and mechanical thresholds required to specify a reliable Composite Pin Insulator for your network. We cover everything from baseline operating limits to advanced environmental sizing, ensuring your overhead distribution lines remain secure under extreme electrical and mechanical stress.
Optimal Application Range: Composite pin insulators are highly effective for medium voltage networks, typically optimized for 11kV to 33kV (up to 36kV maximum operating voltage).
Dielectric vs. Environmental Sizing: Nominal voltage dictates the baseline, but site-specific pollution levels dictate the required composite pin insulator creepage distance, often necessitating a higher-rated insulator housing for lower-voltage lines in coastal or industrial areas.
Mechanical Limitations: Unlike post insulators, pin insulators are designed primarily for lateral stresses; scaling up voltage ratings increases the physical size and alters the cantilever stress dynamics on the pin thread.
Safety Ratio Imperative: A technically sound specification demands a high ratio of puncture strength to flashover voltage to ensure transient surges cause external flashovers rather than internal, unrecoverable material punctures.
Establishing the fundamental electrical boundaries is your first step. You must know where pin-type polymer insulators are the most viable technical and economic choice. The geometry of a pin insulator dictates its electrical and mechanical boundaries. Understanding these limits prevents structural failures on the crossarm. Field crews rely on these limits to ensure safe installation and long-term reliability across various terrain types.
Distribution networks operate within a standard operational sweet spot. This typically includes 11kV, 15kV, 24kV, and 33kV systems. These voltage levels perfectly match the structural capabilities of pin insulators. The 36kV mark is generally the upper limit for a standard distribution component. Pushing beyond 36kV makes the structural geometry inefficient. The insulator becomes too tall to maintain stability. This height creates excessive leverage on the base pin. When the lever arm becomes too long, lateral wind loads and conductor tension exert massive force on the forged steel pin. This often leads to bending or thread stripping. Linemen frequently observe this when heavy ACSR conductors are installed on undersized pins during winter storms.

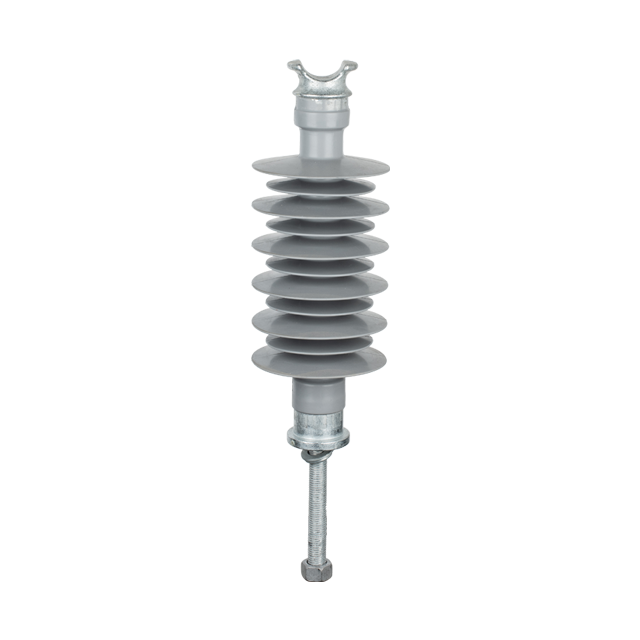

Engineers calculate the wind span and weight span to determine the exact forces acting on the insulator head. A standard 33kV pin insulator might stand 300mm tall. If a 150mm² conductor experiences high transverse wind loading, the bending moment at the base of the pin is substantial. Keeping the application within the 11kV to 33kV range ensures the forged steel pin and the composite core can handle these forces without yielding.

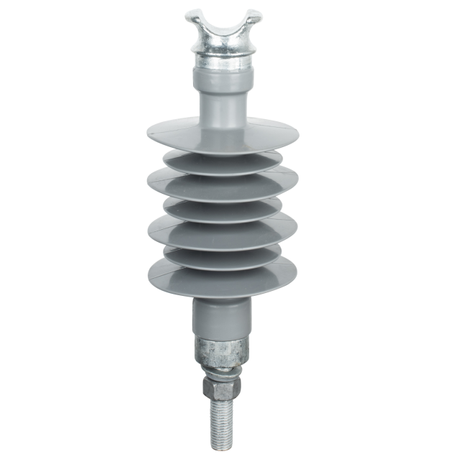

Knowing when to transition from a pin insulator to a line post or suspension insulator prevents mechanical failures. A Medium Voltage Polymer Pin Insulator handles lateral loads beautifully on straight line sections. However, a High Voltage Pin Insulator rated above 36kV is rarely specified. The required cantilever strength increases exponentially at higher voltages. This raises the risk of pin bending under heavy conductor loads.
Single-unit pin designs contrast sharply with suspension strings. Higher voltage transmission lines utilize suspension strings. These strings often consist of multiple lower-voltage discs. Long-rod composites are also used to manage electrical and mechanical loads safely. Suspension insulators hang vertically, transforming lateral conductor tension into vertical tensile stress. Pin insulators must resist these forces laterally. This fundamental difference explains why pin insulators are strictly limited to distribution voltages. You will rarely see a pin insulator on a 66kV or 132kV line. The mechanical physics simply do not support it.
Proper Composite Pin Insulator Voltage Selection requires analyzing several distinct electrical parameters. You cannot rely on the nominal system voltage alone. Transient surges and continuous AC stress dictate the true dielectric requirements.
Nominal line voltage is just the starting point. A 33kV system experiences daily fluctuations. Therefore, you must design for the maximum continuous operating voltage (Um). For a 33kV line, the Um is typically 36kV. The insulator must withstand this maximum voltage indefinitely without degrading. Selecting an insulator based purely on the 33kV nominal rating leaves zero margin for normal grid voltage regulation. Always verify the Um rating on the manufacturer specification sheet. For an 11kV system, the Um is usually 12kV. Designing to the Um ensures the silicone housing does not experience premature tracking under sustained high-voltage conditions.
Lightning strikes and switching surges introduce massive transient overvoltages. You must evaluate the required lightning impulse withstand voltage (LIWV). This is tested using a standard 1.2/50 microsecond waveform. Match the insulator BIL rating to your network overvoltage protection coordination strategy. This ensures surge arresters operate before the insulator flashes over. If the insulator BIL is too low, transient surges will bypass the arresters. This causes immediate flashovers across the insulator sheds, leading to breaker trips and localized outages. A standard 33kV system typically requires a BIL of 170kV, though areas with high lightning activity might specify 200kV.
Continuous AC stress tests the insulator daily endurance. You must assess performance in both optimal dry conditions and compromised wet conditions. Rain alters the surface dielectric properties. The insulator must prevent flashovers during heavy downpours. Standard tests apply power frequency voltage for one minute under simulated rain. The water conductivity is strictly controlled during testing, usually around 100 µS/cm. The wet withstand voltage is always lower than the dry withstand voltage. Your selection must guarantee that the wet withstand voltage comfortably exceeds the maximum continuous operating voltage of your specific grid section.
This is a critical design requirement. The flashover voltage must be significantly lower than the puncture voltage. A high safety ratio ensures transient surges cause external flashovers. External flashovers allow the line to trip and auto-reclose without permanent damage. Internal punctures cause unrecoverable material breakdown. Composite materials inherently resist puncture better than traditional porcelain. The solid Fiberglass Reinforced Plastic (FRP) core and silicone housing provide excellent dielectric strength. This holds true provided the end-fitting seals remain intact. If moisture breaches the seal, the core can track internally, destroying the puncture resistance.
The quality of the FRP core directly correlates to cantilever strength. A dense, void-free core handles mechanical stress better. Specific end-fitting designs impact overall longevity. Crimped fittings often provide superior mechanical grip compared to glued alternatives. Manufacturers use acoustic emission monitoring during the crimping process. This ensures the metal fitting compresses the FRP core without fracturing the glass fibers. Proper crimping maintains integrity under continuous voltage stress and thermal cycling.
Nominal System Voltage (kV) | Maximum Operating Voltage Um (kV) | Typical BIL (kV) | Wet Power Frequency Withstand (kV) | Minimum Creepage - Heavy Pollution (mm) |
|---|---|---|---|---|
11 | 12 | 75 - 95 | 28 | 300 |
24 | 24 or 25.8 | 125 - 150 | 50 | 600 |
33 | 36 | 170 - 200 | 70 | 900 |
Electrical parameters define the baseline, but the environment dictates the surface geometry. Airborne contaminants drastically alter how an insulator performs under voltage stress. You must evaluate the specific atmospheric conditions of the installation site to prevent surface tracking and dry-band arcing.
Airborne contaminants compromise surface dielectric strength. Salt spray, industrial dust, and agricultural chemicals accumulate on the sheds. Moisture turns this layer into a conductive path. You must use IEC 60815 guidelines. These guidelines help select the specific Composite Pin Insulator Creepage Distance. Ratings are based on light, medium, heavy, or very heavy pollution environments. High pollution often requires an insulator rated for a higher voltage class. For example, a 24kV line in a heavy coastal pollution zone might require an insulator with the creepage distance typically found on a 33kV unit. Engineers measure Equivalent Salt Deposit Density (ESDD) and Non-Soluble Deposit Density (NSDD) to quantify this pollution and adjust the creepage requirements accordingly.
Silicone rubber housings offer inherent hydrophobic recovery. They force water to bead up rather than form a continuous conductive film. Low molecular weight siloxanes migrate from the bulk material to the surface. This encapsulates dirt particles, maintaining the water-repellent properties even when heavily polluted. This superior pollution resistance sometimes allows for a reduction in overall creepage. You can often use a shorter insulator compared to porcelain equivalents. This reduces the mechanical leverage on the pin, improving the overall structural integrity of the crossarm assembly. High Temperature Vulcanized (HTV) silicone generally provides the best long-term tracking and erosion resistance in these harsh environments.
Air density drops at higher altitudes. This reduction lowers the external dielectric strength of the insulator. Installations above 1000 meters require altitude corrections based on Paschen's Law. You must apply correction factors to the flashover voltage. This frequently requires selecting an insulator rated for the next voltage class up. For example, you might use a 33kV insulator on a 24kV line at high elevations. Failing to account for altitude will result in unexpected flashovers during normal switching operations or minor lightning events. The thinner air simply cannot insulate the gap between the conductor and the grounded crossarm as effectively as it does at sea level.
Upgrading voltage ratings is not just an electrical decision. It fundamentally changes the mechanical behavior of the insulator on the pole. You must evaluate how the physical dimensions of the insulator interact with the support structure.
Pin insulators are optimized for lateral and transverse loads. Post insulators handle vertical and compressive loads better. Increasing the voltage rating increases the insulator height. A taller insulator amplifies the bending moment on the forged steel pin. This cantilever stress is the primary mechanical constraint. The bending moment is calculated by multiplying the lateral force of the conductor by the height of the insulator. A 33kV insulator acts as a much longer lever arm than an 11kV insulator. You must ensure the forged steel pin can handle this increased torque without yielding. If the line angle exceeds the safe working load of the pin, you must transition to a tension assembly or a line post insulator.

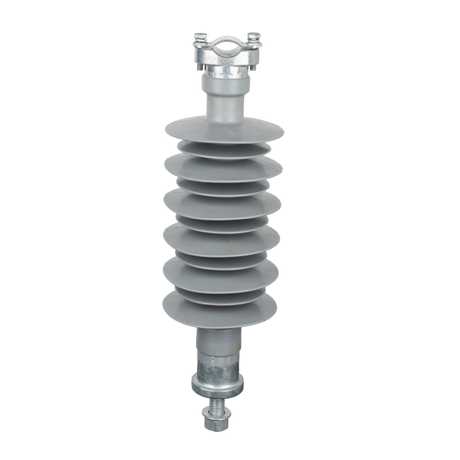

Specifying heavier, higher-voltage pin insulators introduces thread risks. Extreme mechanical stress can cause the rigid steel pin to harm the internal threads. Mismatched thermal expansion between the steel and the composite material exacerbates this issue. You must assess the integration of the FRP core with the metal end fittings. Proper integration prevents mechanical pull-out. It also stops moisture ingress under high wind or ice loads. A reliable Distribution Pin Insulator relies on a perfectly matched pin and thread profile. Using an ANSI standard pin in a BS standard insulator thread will cause point-loading, leading to premature mechanical failure. Some designs use a zinc thimble or a nylon thread insert to provide a softer interface between the rigid steel pin and the composite core, reducing the risk of thread damage during installation.
Field failures rarely stem from a single miscalculation. They usually result from a combination of electrical, environmental, and mechanical oversights. Review the table below to understand common risks and how to mitigate them during the specification phase.
Risk Category | Operational Impact | Mitigation Strategy |
|---|---|---|
Over-Specifying Voltage Ratings | Unnecessary increase in unit cost, heavier infrastructure requirements, and potential clearance issues on existing crossarms. | Strictly align specifications with documented SPS levels and BIL requirements rather than defaulting to the highest available rating. |
Under-Specifying Creepage | Increased leakage currents, dry-band arcing, and accelerated degradation of the silicone housing (tracking and erosion). | Conduct localized environmental testing; specify alternating shed profiles to maximize creepage without increasing insulator height. |
Extreme Mechanical Stress | Composite insulators might struggle under severe ice loading or hurricane-force winds, leading to core snapping or pin bending. | Always evaluate operational environments; consider transitioning to line post insulators if lateral loads exceed safe cantilever strength. |
Improper Pin Matching | Mechanical failure at the spindle/thread interface due to mismatched threading standards (e.g., BS vs. ANSI). | Mandate procurement of the distribution pin insulator and the corresponding forged steel pin as a tested, matched assembly. |
Applying these mitigation strategies requires cross-departmental communication. Procurement teams must understand that buying the highest voltage rating available is not a universal solution. Engineering teams must provide accurate environmental data to justify specific creepage requirements. Maintenance crews must be trained to identify thread mismatches before installation. A mismatched thread might feel tight during installation but will loosen under continuous wind vibration, eventually causing the insulator to fail mechanically.
Selecting the correct voltage rating requires a tri-fold evaluation. You must balance electrical system parameters, localized environmental pollution, and mechanical limitations. Ignoring any of these three pillars guarantees premature failure. A systematic approach ensures you deploy components that survive both daily operational stress and extreme transient events.
Audit your current network failure rates to distinguish between electrical flashover events and mechanical breakages at the pin thread.
Consult IEC 61109 standards for composite insulator testing protocols before finalizing your procurement specifications.
Request type-test certificates from manufacturers matching your specific environmental pollution levels and altitude requirements.
Standardize your pin and insulator procurement to ensure thread compatibility across all maintenance depots and contractor teams.
A: Typically 33kV nominal, 36kV maximum. Beyond this, the mechanical leverage on the pin becomes inefficient, and line post or suspension insulators are recommended.
A: Creepage distance prevents surface tracking under polluted conditions. High pollution may require an insulator with a higher physical voltage rating or creepage length even on a lower voltage line.
A: Polymer insulators offer superior hydrophobicity, lighter weight for easier installation, higher resistance to vandalism, and better performance in polluted environments.
A: Post insulators must withstand vertical stresses more effectively and typically have integrated metal bases. Pin insulators are optimized for lateral stresses and use a separate threaded pin.
A: No. Pin insulators are strictly distribution-class components up to 36kV. Transmission lines require suspension strings or long-rod composite insulators due to high voltage and mechanical load requirements.
A: The safety ratio is the puncture strength divided by the flashover voltage. A high ratio ensures the insulator will flash over externally before it suffers internal dielectric breakdown.
A: Yes. Above 1000 meters, the lower air density reduces the external dielectric strength, often requiring an insulator with a higher BIL and flashover rating to compensate.
