Composite Insulator Vs Porcelain Insulator: Which Is Better For Power Lines?

Transmission and distribution infrastructure design carries incredible stakes. A single material failure often triggers catastrophic downtime and severe safety risks. Grid operators cannot afford weak links in their overhead lines. Extreme weather, pollution, and mechanical stress constantly test these critical components. Designing a resilient grid requires precise engineering and a thorough understanding of material limitations.

For many decades, porcelain served as the default choice for grid insulation. It built the foundation of our modern electrical networks. Today, the composite insulator dominates most new installations and grid retrofits worldwide. However, it is not a universal silver bullet for every environment. Different climates demand different material properties. Engineers must carefully weigh the strengths and weaknesses of each option.

This article provides a strict technical evaluation of both materials. You will discover how to match the right insulator to specific grid environments. We will explore mechanical handling, pollution resistance, and unique failure modes. By understanding these technical dimensions, you can ensure long-term grid reliability and prevent unexpected outages.

Key Takeaways

• Weight & Logistics: Composite insulators weigh 70-90% less than porcelain, drastically reducing installation labor, transport costs, and tower structural load.

• Pollution Resistance: The natural hydrophobicity of silicone rubber makes composites superior in coastal or heavy industrial zones, eliminating the need for periodic washing.

• Failure Profiles: Porcelain fails visibly (shattering/puncture), whereas composites often fail invisibly (brittle fracture/core tracking), requiring different inspection protocols (UV/IR).

• Lifecycle Cost (TCO): Composites offer lower upfront and maintenance costs, but high-quality porcelain still holds the edge in proven, multi-generational longevity (50+ years).

Material Science & Baseline Architectures

Understanding the fundamental chemistry and physical construction of these insulators is crucial. The structural differences directly dictate how they perform under electrical stress. Let us examine the base materials and manufacturing processes.

Porcelain Insulators

Porcelain represents the traditional standard for electrical insulation. Manufacturers blend alumina, silica, and clay into a highly uniform mixture. They extrude this mixture, shape it into the desired shed profile, and fire it in kilns at temperatures exceeding 1300°C. This intense heat creates a dense, non-porous ceramic body.

Following the firing process, factories apply a specialized glaze to the ceramic surface. This glaze improves surface smoothness and enhances mechanical strength. Finally, technicians cement galvanized cast iron or forged steel fittings directly to the ceramic body. This architecture delivers immense rigidity. It provides excellent resistance against compression loads. Utilities trust porcelain because it boasts a proven, century-long track record in diverse climates.

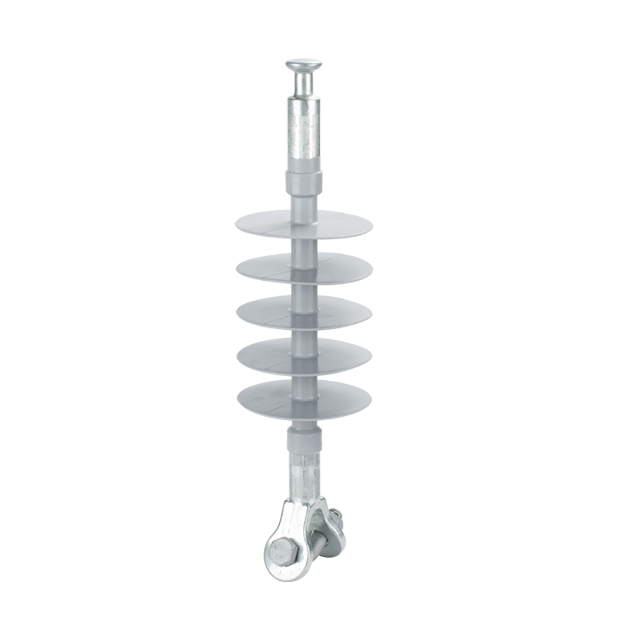

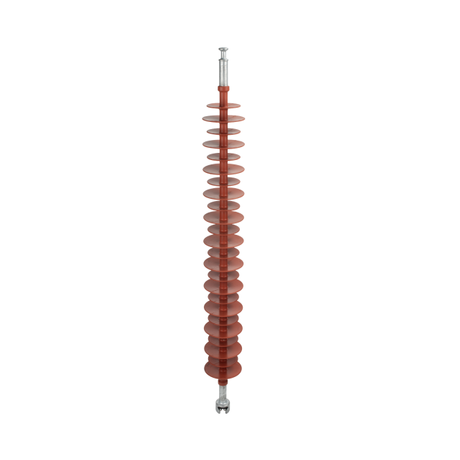

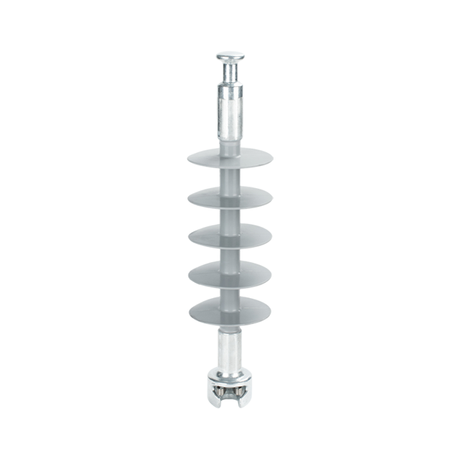

Composite Insulators

Modern composite designs take a completely different engineering approach. They separate the mechanical load-bearing function from the electrical shielding function. The core consists of Fiberglass Reinforced Plastic (FRP). This pultruded rod provides exceptional tensile strength. It handles the immense physical pull of heavy conductors.

Manufacturers then encapsulate this FRP core in a polymeric housing. They typically use High-Temperature Vulcanized (HTV) silicone rubber. This rubber forms the outer weathersheds. It protects the sensitive fiberglass core from moisture, ultraviolet light, and electrical tracking. The end fittings are mechanically crimped onto the fiberglass rod under immense pressure. This dual-material design provides unique flexibility and dynamic load tolerance.

Form Factor Alignment

Both material types adapt to standard transmission and distribution roles. You will find them manufactured in pin, post, and string configurations. However, modern grid designs frequently leverage specific composite strengths. Composites excel specifically when deployed as a composite suspension insulator or a polymer tension insulator. These specific roles require high tensile strength-to-weight ratios. The fiberglass core handles string tension effortlessly, while the lightweight rubber prevents tower overloading.

Core Evaluation Dimensions for Grid Deployment

Selecting the right insulator requires evaluating how it will survive physical deployment and environmental exposure. Engineers must move beyond catalog specifications. They must consider real-world operational challenges.

Handling, Weight, and Installation

Weight plays a massive role in line construction logistics. Porcelain is exceptionally heavy. A large transmission string can weigh hundreds of kilograms. This extreme weight introduces severe logistical bottlenecks. Utilities must transport porcelain in heavy wooden crates. They must deploy large cranes to hoist the units onto towers. In remote or mountainous terrain, moving porcelain requires specialized heavy-lift helicopters.

Furthermore, porcelain is brittle. Rough handling during transit frequently causes micro-cracking. A dropped porcelain unit must be discarded immediately.

Composites solve these physical logistical issues completely. They reduce the unit weight by 70 to 90 percent. Line crews can easily carry these units by hand. You can pack them tightly in lightweight crates. Smaller, more affordable equipment can lift them into place. They resist impact damage during shipping. This cascading weight reduction simplifies the entire installation workflow.

Dielectric Performance in Polluted Environments

Pollution triggers major grid failures. Airborne contaminants like coastal salt, industrial sulfur, or desert dust settle on the insulator surface. When light rain or morning fog introduces moisture, this pollution layer becomes highly conductive. A continuous water film forms across the surface. This film allows leakage currents to flow, eventually causing a massive electrical flashover.

Silicone rubber features natural hydrophobicity. It actively repels water. Instead of forming a continuous conductive film, water beads up into isolated, non-conductive droplets. This physical reaction prevents leakage currents from crossing the surface.

More importantly, silicone rubber demonstrates "hydrophobicity transfer." Low molecular weight (LMW) siloxanes constantly migrate from the interior of the rubber to the outer surface. They encapsulate dirt and salt particles, rendering the pollution layer itself hydrophobic. This self-healing chemical process prevents flashovers in extreme environments.

Porcelain lacks this property. It is completely hydrophilic. Water sheets across its surface easily. To prevent flashovers in polluted areas, utilities must regularly wash porcelain units using specialized trucks. Alternatively, they must manually apply Room Temperature Vulcanizing (RTV) silicone coatings. Both mitigation strategies demand significant ongoing labor.

Mechanical Strength & Vandalism Resistance

Overhead lines endure violent physical forces. High winds, ice accumulation, and conductor galloping create severe dynamic loads. Porcelain is rigid. It handles static compression beautifully. However, it struggles with sudden, violent dynamic shock. Extreme bending forces can snap the ceramic body.

Conversely, a polymer unit flexes under stress. It absorbs dynamic shock loads seamlessly. The fiberglass core bends without fracturing, maintaining the integrity of the line.

Vandalism also plagues specific transmission routes. Hunters and vandals frequently shoot at overhead lines. When a bullet strikes a porcelain shed, the brittle ceramic shatters instantly. The entire unit fails structurally and electrically. When a bullet strikes a composite unit, it typically passes cleanly through the soft rubber sheds. The core usually remains intact. The line remains operational, preventing an immediate localized blackout.

Best Practices for Handling Insulators

• Porcelain: Always keep units in original factory crating until arriving at the installation tower base. Never drag units across the ground.

• Composite: Do not lift the unit by tearing or pulling on the weather sheds. Always attach lifting rigging directly to the metal end-fittings.

Analyzing Failure Modes and Inspection Realities

Neither material is invincible. They simply fail differently. Field engineers must understand these failure signatures. Recognizing early degradation signs prevents catastrophic system collapse.

Porcelain Failure Modes

Porcelain failures generally result from mechanical stress or severe electrical puncture. You can easily spot these issues during standard visual patrols.

1. Cement Growth: The cement binding the metal hardware to the ceramic can absorb moisture over decades. It expands gradually. This thermal expansion mismatch exerts massive radial stress on the ceramic head, eventually causing deep radial cracking.

2. Electrical Puncture: Steep-front lightning surges can exceed the dielectric strength of the ceramic wall. The current punches directly through the material, destroying the unit internally.

3. Pin Corrosion: In polluted environments, continuous leakage currents concentrate at the metal pin. This causes electrolytic corrosion, thinning the pin until it snaps under the conductor's weight.

Most porcelain failures manifest as visible shattered sheds or separated hardware. Drone cameras and helicopter patrols easily identify these physical breaks.

Composite Failure Modes

Composite failures pose a unique challenge. They often occur internally. The outer rubber may look pristine while the inner core disintegrates.

1. Brittle Fracture: This is the most dangerous failure mode. If moisture bypasses the metal end-fitting seal, it enters the fiberglass core. Electrical corona discharge creates localized nitric acid. This acid attacks the epoxy resin holding the fiberglass together. The rod snaps suddenly with no external warning.

2. Tracking and Erosion: Severe, continuous corona activity can physically erode the silicone rubber. The rubber carbonizes, leaving conductive tracks across the surface. This ruins the insulating properties.

3. Biological Damage: Birds frequently peck at the soft silicone rubber. Rodents chew through the sheds. This exposes the vulnerable fiberglass core to raw weather and moisture ingress.

Inspection Shift

This reality requires utilities to shift their inspection methodologies. Visual checks fail to detect internal core rot or early-stage corona degradation. Utilities must invest in specialized diagnostic technology.

Inspectors now utilize solar-blind UV cameras (coroCAM) to detect invisible corona discharge occurring near the end-fittings. They deploy Infrared (IR) thermography cameras to identify localized hot spots caused by internal current tracking. Modern grid maintenance demands advanced sensor deployment rather than simple visual observation.

Common Mistakes in Grid Inspection

Relying solely on visual drone photographs to certify composite line health. A polymer unit can look physically perfect on camera while suffering from severe internal nitric acid attack. Always pair visual inspections with active UV and IR scanning.

Shortlisting Framework: Making the Final Decision

Selecting the right material requires cross-referencing environmental hazards against material strengths. Engineers should avoid universal mandates. They must evaluate each project independently. The following framework clarifies the decision-making process.

When to Specify Composite Insulators

You should specify modern polymeric structures when the environment actively threatens line stability. High-pollution areas represent the strongest use case. Coastal salt fog, severe industrial emissions, and harsh desert dust storms rapidly overwhelm standard ceramic glazes. The self-cleaning nature of silicone rubber dictates its usage here.

Remote terrain also demands this material. If you must build lines across rugged mountains or deep swamplands, heavy transport becomes impossible. The lightweight nature of the polymer units allows teams to build lines using manual labor and light vehicles.

Finally, utilize composites when upgrading existing line voltages. If you need to increase line capacity but cannot afford to replace existing transmission towers, weight matters. Swapping heavy ceramic strings for lightweight polymeric ones frees up critical structural load capacity. You can then string heavier, high-capacity conductors on the same legacy towers.

When to Stick with Porcelain Insulators

Despite modern advancements, legacy ceramics remain superior in several crucial applications. Environments with severe avian or rodent interference require hard ceramics. Crows and cockatoos can tear a silicone shed to pieces in days. Porcelain ignores biological attacks completely.

Substation environments also favor ceramics. Disconnect switches and heavy busbars require absolute mechanical rigidity. They must not flex during high-amperage switching operations. Porcelain post units provide unyielding physical support for these massive mechanical components.

Lastly, extremely conservative regulatory frameworks often mandate ceramics. Some grid operators require strict guarantees of 50-year lifespans. While high-quality modern polymers perform brilliantly, they lack the multi-generational, real-world field data that ceramics possess. When mandates strictly prioritize proven half-century longevity, engineers default to porcelain.

Conclusion

The "better" choice depends strictly on your application environment. Neither material solves every grid challenge. Choosing incorrectly leads to early failure, safety hazards, and grid instability. You must analyze your specific operational reality before drafting procurement specifications.

Composites represent the modern standard for overhead lines. Their operational efficiencies, pollution resistance, and rapid installation speed make them incredibly attractive. However, porcelain remains a highly viable legacy choice. It continues to dominate mechanical substation roles and environments suffering from severe biological interference.

Take action before your next line upgrade. Review the latest IEC standard technical specifications for your region. Request a localized environmental risk assessment to map out specific pollution profiles and wildlife threats. Finally, consult with an application engineer to select the exact creepage rating and material chemistry that will keep your specific grid running safely for decades.

FAQ

Q: Can a composite suspension insulator replace a porcelain string 1:1?

A: Yes, you can replace a porcelain string directly. This swap provides a massive weight reduction. However, you must carefully match the exact overall length and the specific creepage distance to satisfy the line voltage and local pollution severity requirements.

Q: Do composite insulators degrade under UV light?

A: Early generations suffered from UV degradation. However, modern HTV silicone formulations incorporate advanced UV inhibitors and specialized fillers like alumina trihydrate (ATH). These additives actively prevent severe surface chalking, crazing, and cracking under intense sunlight.

Q: How do you test a polymer tension insulator in the field?

A: You cannot rely on simple visual checks. Field testing requires measuring the electric field distribution along the unit to find internal shorts. Inspectors also utilize UV/Corona cameras to detect invisible surface tracking, alongside detailed checks for end-fitting seal degradation.
