How To Choose The Right Composite Insulator For Overhead Transmission Lines

Upgrading or building overhead transmission lines demands a careful balance. You must weigh upfront capital expenditure against long-term grid reliability. Material failure is simply not an option. A dropped line creates massive safety hazards and severe service interruptions. Legacy porcelain and glass insulators have a solid historical track record. However, the industry is shifting rapidly toward lighter, pollution-resistant materials. This shift makes your selection process absolutely critical. Choosing the wrong specification can lead to catastrophic hardware drops or costly power outages. Proper material selection ensures grid stability under extreme environmental conditions. This guide breaks down the essential technical criteria you need. We explore strict compliance standards and effective risk-mitigation strategies. You will learn how to match mechanical loads, evaluate silicone housing formulations, and audit manufacturers safely. You need these actionable tools to specify the correct composite insulator for your high-voltage applications.

Key Takeaways

• Choosing a composite insulator requires precise matching of Specified Mechanical Load (SML) to actual line tension and wind loads.

• Silicone rubber formulation directly dictates hydrophobicity and pollution resistance; not all polymer housings perform equally over a 20-year lifespan.

• Proper selection of composite suspension insulators and polymer tension insulators reduces tower weight and installation costs, but demands strict adherence to IEC/ANSI testing standards.

• The most common point of failure is the core-to-end-fitting seal; evaluating manufacturer crimping and sealing techniques is mandatory during procurement.

Defining the Operational Baseline: Assessing Grid Requirements

Start by framing the business problem accurately. You must establish the specific environmental and electrical realities of your transmission route. Do this before evaluating any specific products. Each geographic region presents unique physical stresses. A generic approach often leads to premature component failure.

Define the voltage and overvoltage profile carefully. Identify the nominal system voltage first. Next, determine the maximum continuous operating voltage (MCOV). Finally, specify the switching and lightning impulse withstand requirements. Grid components must handle sudden transient spikes without experiencing flashover. Accurate voltage profiling prevents electrical breakdown during severe storm events.

Next, classify the Site Pollution Severity (SPS). You should categorize the environment based on IEC 60815 guidelines. Examples include coastal salt fog, heavy industrial emissions, or arid desert dust. The SPS level directly dictates your required minimum creepage distance. High pollution zones require a significantly longer creepage path. This extra length prevents dangerous leakage currents from tracking across the polymer surface.

Finally, calculate your mechanical load realities comprehensively. You must understand peak tension forces, heavy ice loads, and dynamic wind spans. Extreme weather pushes physical limits constantly. Avoid over-specifying your operational loads. Over-specification wastes valuable project budget unnecessarily. Conversely, under-specifying risks catastrophic mechanical failure. Establish precise Specified Mechanical Load (SML) targets based on structural engineering data.

Solution Categories: Matching Insulator Types to Tower Configurations

Matching insulator types to specific tower configurations ensures total network reliability. Each structural application demands vastly different mechanical properties.

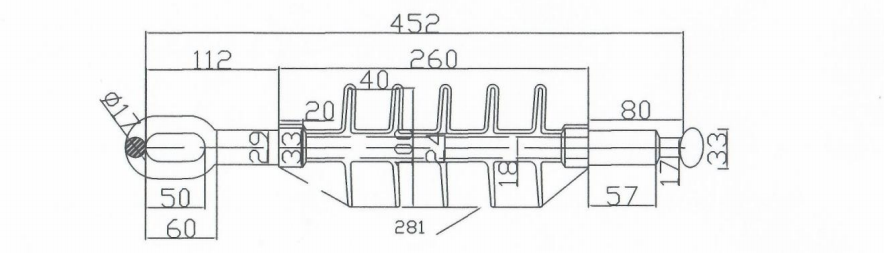

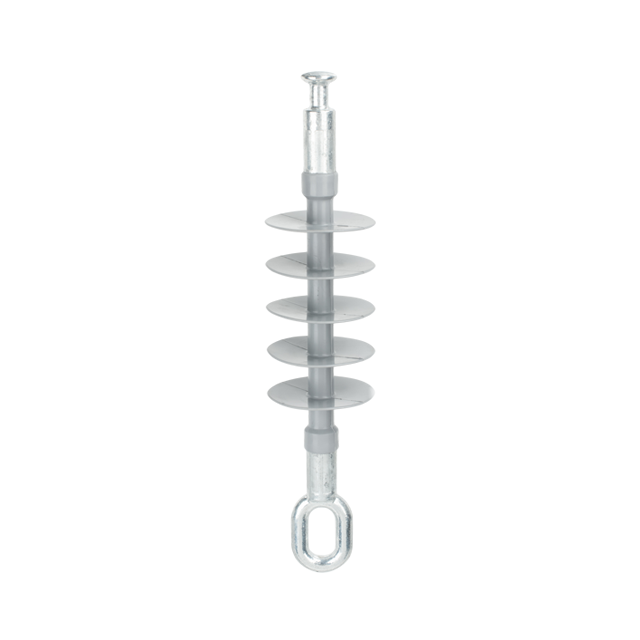

The composite suspension unit plays a critical vertical role. Engineers use them primarily for the vertical support of heavy conductors. They hang straight downward from the tower crossarm. The key performance metric here is vertical load capacity. A composite suspension insulator must withstand the conductor's massive vertical weight. It also handles dynamic wind uplift and sudden ice shedding. If ice drops off suddenly, the unit absorbs extreme physical shock. We recommend verifying the dynamic load ratings strictly for these units.

Strain towers and dead-end structures require a fundamentally different approach. Here, you deploy the polymer tension unit. Construction crews install these at dead-end towers, sharp route turns, or substation entries. They pull the high-voltage conductor horizontally. The core metric changes drastically in this application. A polymer tension insulator requires significantly higher continuous mechanical tension ratings. It must sustain heavy horizontal pulling forces constantly. These units typically feature thicker fiberglass cores to prevent bending or snapping under sustained stress.

Line post composite insulators serve narrow corridor configurations. Utilities use them frequently for compact line upgrades. They effectively restrict conductor swing in tight right-of-way zones. The key metrics here are cantilever strength and maximum bending loads. They project horizontally or at an upward angle directly from the utility pole.

Core Evaluation Dimensions for Procurement

Procurement teams must evaluate intrinsic material quality rigorously. Surface-level visual checks remain completely insufficient for modern grid reliability.

• Fiberglass Reinforced Plastic (FRP) Core Quality: The core carries the entire mechanical load. Evaluate the core's resistance to brittle fracture actively. Acid-induced degradation causes sudden line drops. Superior pultrusion processes ensure void-free epoxy resin matrices.

• Housing and Shed Material: Assess the High-Temperature Vulcanized (HTV) silicone rubber carefully. Look for verifiable laboratory data on UV resistance. Request track and erosion resistance reports. Analyze hydrophobicity transfer and recovery rates. Excellent silicone pushes water into isolated droplets quickly.

• End Fitting and Sealing Integrity: The triple-point seal acts as the most critical vulnerability. This is exactly where air, the metal fitting, and the polymer meet. Require concrete evidence of acoustic emission testing. Manufacturers must conduct this during the crimping process. It flags internal micro-cracks instantly.

• Corona Ring Sizing and Placement: Transmission lines operating at 115kV and above require specialized corona rings. Outline how the manufacturer calculates exact corona ring dimensions. Proper ring sizing prevents dangerous dry-band arcing. It stops premature polymer degradation near highly stressed metal end fittings.

Do not skip any of these evaluation steps. Ignoring FRP core quality invites catastrophic brittle fracture. Overlooking the triple-point seal guarantees moisture ingress. You must audit these dimensions thoroughly.

Verifying Manufacturer E-E-A-T: Standards, Testing, and Compliance

Trusting manufacturer claims requires rigorous independent validation. You must demand objective, standardized proof of performance.

Prioritize IEC and IEEE/ANSI standards strictly. Shortlisted vendors must provide independent, third-party type test reports. Look specifically for IEC 61109 and IEC 62217 compliance documents. In-house laboratory testing is insufficient for decision-stage validation. Independent laboratories guarantee unbiased performance results. You should look for certifications from internationally recognized testing authorities like KEMA or STRI.

Clarify routine versus sample testing protocols immediately. You need to understand the manufacturer's total quality assurance consistency. Ask exactly what percentage of the production batch undergoes Routine Test Load (RTL) verification. Premium suppliers test every single manufactured unit mechanically before shipping. Lower-tier manufacturers only test a random statistical sample. This sample testing leaves your project vulnerable to hidden defects.

Demand total material transparency from your vendors. Ask for detailed technical datasheets. You must know the exact filler content within the silicone matrix. Manufacturers often use Alumina Trihydrate (ATH) fillers to prevent severe electrical tracking. However, ATH can impact material flexibility negatively if poorly mixed. Ensure they optimize the filler ratio perfectly.

Implementation Realities and Lifecycle Risks

Even the highest-quality components fail if field crews handle them improperly. Real-world implementation introduces numerous unexpected mechanical risks.

Address handling and installation vulnerabilities immediately. Composite materials behave differently than legacy glass variants. They can suffer invisible micro-cracks in the internal FRP core. This damage happens easily if workers drop them on rocks. It also occurs if crew members step on the sheds during installation. You must mandate specialized field crew training. Workers cannot drag polymer units across rough terrain under any circumstances.

Understand visual inspection limitations thoroughly. Internal faults in composite units are notoriously difficult to detect. You cannot easily spot them visually from the ground level. Shattered glass insulators show obvious, catastrophic damage. Polymers do not shatter visibly. Emphasize the vital need for daylight UV and corona cameras. Field teams use these specialized tools to detect invisible surface tracking. They also reveal early-stage internal electrical discharges.

Briefly note avian and rodent interaction risks. Wildlife interactions cause unexpected and frustrating power outages. Large birds often peck aggressively on the soft silicone sheds. Rodents may chew the lower housing material near poles. Specific housing formulations mitigate this biological damage. Some manufacturers mix non-toxic deterrents into the raw silicone batch. Consider these custom formulations for highly rural line routes.

The Shortlisting Logic: Next Steps for Engineers and Procurement

Structuring your procurement process eliminates dangerous guesswork. Follow a highly disciplined technical workflow to secure grid reliability.

1. Step 1: Data Gathering. Compile the exact geographic route data thoroughly. You need the specific SPS level, maximum mechanical loads, and the exact voltage class. Gather historical weather data regarding ice and wind. Incomplete baseline data ruins the entire specification process.

2. Step 2: Technical RFP Issuance. Draft a comprehensive, unforgiving technical RFP. Issue specifications demanding specific minimum creepage factors. Specify the required end-fitting metal galvanization thickness. Demand 5000-hour multi-stress aging test reports explicitly. These specialized documents prove long-term environmental reliability.

3. Step 3: Factory Audit and Track Record Check. Conduct rigorous on-site factory audits. Prioritize vendors boasting 10 or more years of proven operational history. Their products must survive successfully in similar climatic zones. A flawless track record in coastal humidity does not guarantee performance in sub-zero alpine environments. Validate their specific regional experience.

Executing these three steps isolates premium manufacturers from substandard ones. It builds a solid, defensible engineering baseline for your project.

Conclusion

Selecting the right composite insulator bridges a crucial infrastructure gap. It perfectly aligns rugged mechanical durability with advanced electrical performance. Your high-voltage grid relies entirely on maintaining this delicate engineering balance. Accurate load calculations and material verification prevent catastrophic line failures. We highly recommend auditing vendor test reports independently.

Remember one vital final caveat. Do not compromise on strict standard compliance or sealing integrity to save on unit costs. Weak triple-point seals always fail prematurely, leading to severe system outages. You must demand acoustic emission testing data.

Contact our dedicated engineering team today for a customized evaluation of your transmission line parameters. Alternatively, request a detailed technical datasheet for our tension and suspension composite insulators to begin your project planning immediately.

FAQ

Q: What is the expected lifespan of a high-voltage composite insulator?

A: A high-quality composite insulator typically lasts between 15 to 25 years. This lifespan depends heavily on environmental severity and silicone quality. Severe pollution, extreme UV exposure, and frequent ice loading can reduce operational life. Premium HTV silicone formulations maintain hydrophobicity longer, ensuring maximum longevity.

Q: How does a polymer tension insulator differ mechanically from a suspension insulator?

A: A polymer tension insulator withstands constant horizontal pulling forces at dead-end structures. It features a thicker fiberglass core rod diameter compared to suspension units. Additionally, manufacturers utilize deeper end-fitting crimp depths to safely handle these sustained horizontal mechanical loads without slipping.

Q: Why is hydrophobicity critical in composite insulators?

A: Hydrophobicity forces moisture to bead into isolated droplets rather than forming a continuous wet film. This unique surface property prevents dangerous continuous leakage currents. It effectively stops dry-band arcing and surface tracking, especially in highly polluted or coastal environments.

Q: Can composite insulators be washed like porcelain?

A: They rarely require washing due to their natural hydrophobicity. However, if extreme contamination necessitates cleaning, crews must strictly limit water pressure. High-pressure washing can easily tear or degrade the soft silicone sheds. You should always follow the manufacturer's specific pressure guidelines.
