| Quantity: | |
|---|---|
| Type | Conductor Cross-section(mm²） | Bolt | |
 | APG-A1 | AL16-70 | 1*M8*40 |
APG-A2 | AL25-150 | 1*M8*45 | |
 | APG-B1 | AL6-35 | 2*M6*35 |
APG-B2 | AL16-70 | 2*M8*45 | |
APG-B3 | AL25-150 | 2*M8*50 | |
APG-B4 | AL25-240 | 2*M10*60 | |
APG-B5 | AL35-300 | 2*M10*70 | |
 | APG-C1 | AL16-70 | 3*M8*45 |
APG-C2 | AL25-150 | 3*M8*50 | |
APG-C3 | AL25-240 | 3*M10*60 | |
| APG-C4 | AL35-300 | 3*M10*70 |

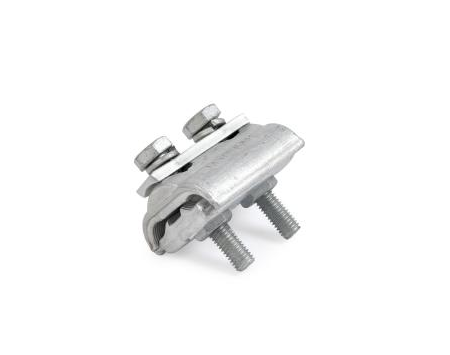

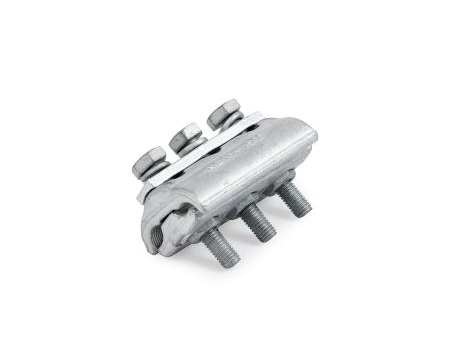

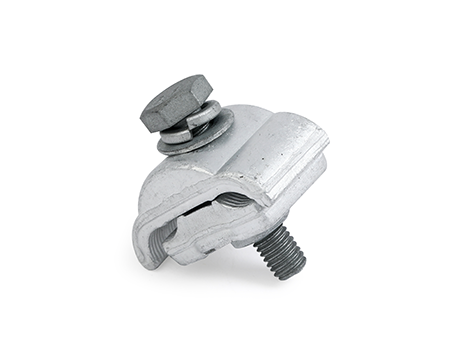

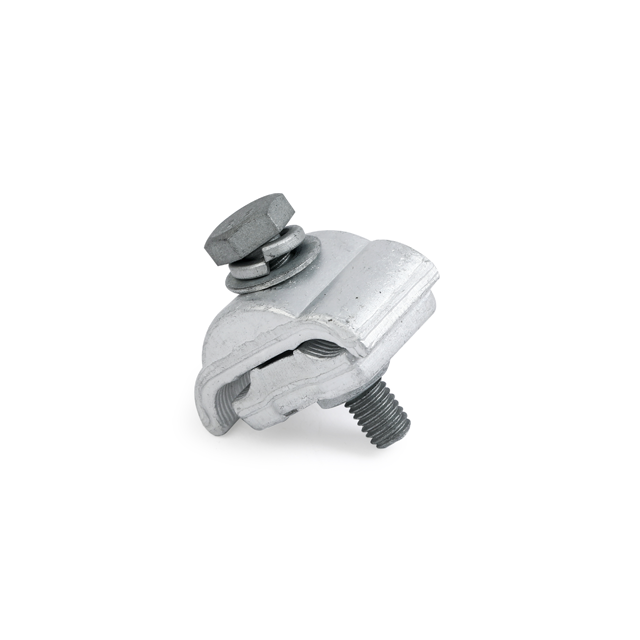

The APG series Aluminium Parallel Groove Cable Clamp is a forged electrical connector dedicated to parallel splicing of bare aluminium conductors. Made from 99.5% high-purity aluminium, it balances low electrical resistance and strong corrosion resistance, serving as a key component in overhead power distribution systems. It covers a wide conductor cross-section range, from AL6 mm² (for low-current branch lines) to AL300 mm² (for heavy-load main lines), with models like APG-A1, APG-B1-B5, and APG-C1-C4 to adapt to diverse installation scenarios.
High-Purity Aluminium Material: 99.5% pure aluminium ensures excellent electrical conductivity, reducing power loss during current transmission. Its corrosion-resistant property maintains stable performance in humid, rainy, or industrial dusty environments.
Serrated Transverse Groove Design: The integrated serrated structure increases the conductor contact area by 30% compared to smooth clamps, preventing conductor slippage and lowering contact resistance. It also enhances mechanical grip to withstand wind-induced conductor sway.
Integrated Part Assembly: All components (bolts, washers) are pre-installed with the clamp body, eliminating part loss risks during on-site installation and cutting down installation time by half.
Arc-Shaped Conductor Wrapping: The arc-shaped housing fully embraces the conductor, ensuring uniform pressure distribution and avoiding localized damage to the conductor surface.
Low-Voltage Urban Distribution Lines: For 0.4kV urban residential area grids, the APG-A1 (AL16-70 mm²) connects branch conductors to main lines, ensuring stable power supply for households and small commercial stores.
Rural Electrification Projects: In remote rural areas with complex terrain, the APG-B2 (AL16-70 mm²) with 2*M8 bolts enables reliable connection without professional heavy tools, adapting to uneven ground installations.
Industrial Plant Wiring: For manufacturing facilities with high current loads (e.g., automobile factories, electronics plants), the APG-C4 (AL35-300 mm²) with 3*M10 bolts handles large cross-section conductors, resisting vibration and temperature fluctuations from production equipment.
Emergency Power Restoration: During natural disasters or grid failures, the APG clamp’s quick-assembly design speeds up conductor connection, shortening power outage time for hospitals, schools, and other critical facilities.
Parameter Customization: We offer tailor-made clamps based on specific conductor cross-sections, bolt sizes, or material thicknesses for non-standard projects.
Installation Guidance: A detailed English manual (including bolt torque values) and video tutorials are provided to avoid connection failures caused by improper installation.
Quality Assurance: All clamps pass tensile and conductivity tests, complying with IEC standards, and come with a 2-year warranty against material or manufacturing defects.
After-Sales Response: Our technical team replies to inquiries within 24 hours and provides on-site troubleshooting for large-scale projects.
