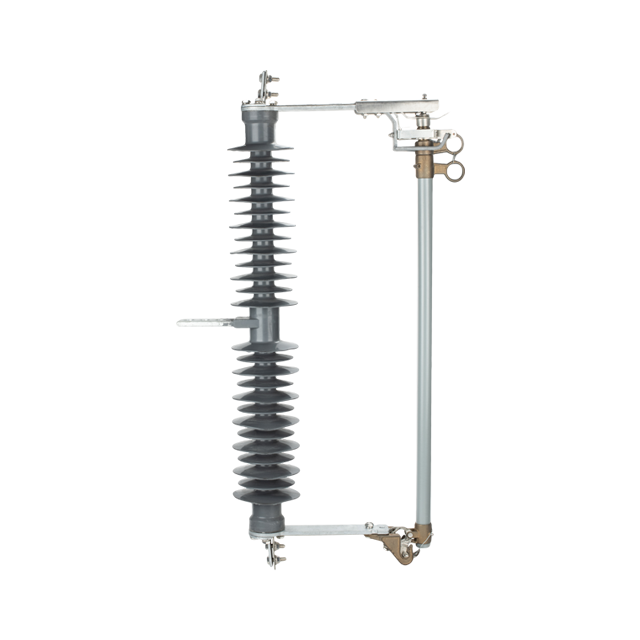

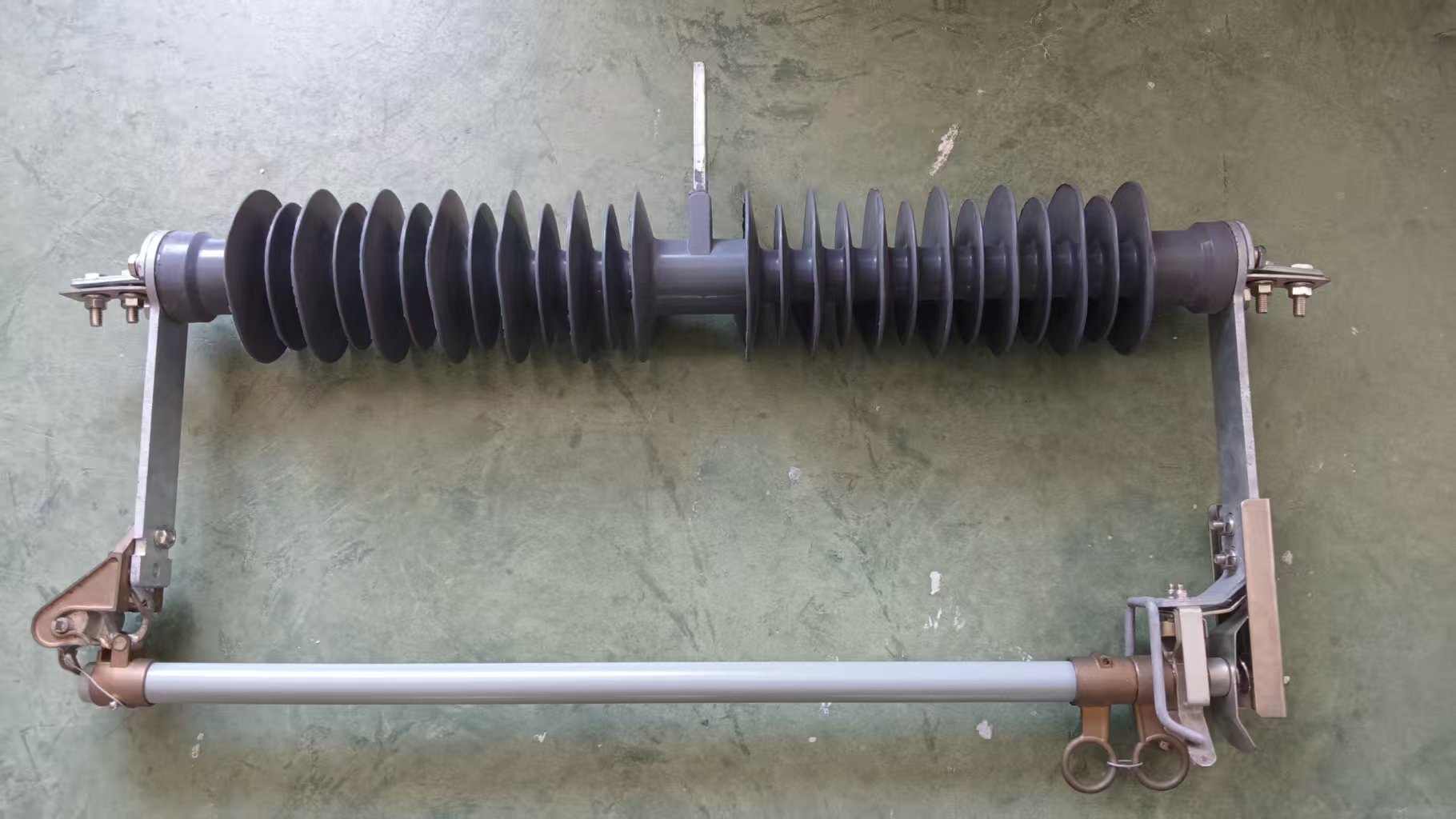

The 40.5kV Silicone Rubber Drop Out Fuse Cutout (Model: FDGW-40.5-200A) protects 35kV-class high-voltage distribution systems (accounting for overvoltage). It guards transformers and feeders against overloads and short-circuits, with a 200A rated current and 12.5kA breaking current. The silicone rubber housing ensures insulation and environmental resistance, with a 1280mm creepage distance for high-pollution areas. Its “drop-out” mechanism indicates fuse rupture, and at 680x390x135mm and 8kgs, it is easy to install on poles or substation structures.
High-Voltage Insulation: 40.5kV rating, 85kV power frequency withstand voltage, and 195kV BIL prevent insulation breakdown in HV systems.
Environmental Resistance: Hydrophobic silicone rubber resists UV, corrosion, and -40°C to +80°C temperatures, outperforming porcelain in harsh conditions.
1280mm Creepage Distance: Complies with IEC 60815 (Pollution Class IV), suitable for industrial, coastal, or desert areas.
Visual Fault Indication: Fuse tube drops when ruptured, enabling quick fault location and replacement, reducing downtime.
Lightweight & Impact-Resistant: 50% lighter than porcelain, easing installation. It withstands impacts (e.g., falling branches) without cracking.
Standard Compliance: Meets IEC 60282-1 and ANSI/IEEE C37.41 standards for global compatibility.
Substation Transformer Protection: Installed at the 35kV side of 35kV/10kV transformers, it prevents damage from short-circuits, with visual indication speeding up fault resolution.
Renewable Energy Grids: In wind/solar parks, it protects 35kV collection lines, resisting weather and salt fog (offshore wind farms).
Rural Mountainous HV Lines: In remote areas with limited maintenance, its low-maintenance design reduces inspections. Lightweight design eases installation in hard-to-reach areas.
Industrial HV Intakes: In mining or cement plants, it resists conductive dust/chemicals, preventing pollution-induced flashovers for plant power intake equipment.
Urban HV Networks: In dense cities, its quick fault isolation shortens outages for residents and businesses. Impact resistance withstands urban construction damage.
Fuse Link Customization: Fuse links with different current ratings and breaking characteristics are offered to match system protection needs.
On-Site Installation Support: Technical teams guide mounting, conductor connection, and fuse replacement for large projects.
Testing & Certifications: Factory tests (insulation resistance, mechanical operation) are conducted, with compliance certificates provided.
Maintenance Training: Training covers inspection, fuse replacement, and fault diagnosis to extend service life.
Warranty & Replacement: A 5-year warranty for the housing and 1-year for fuse links is offered. Global inventory ensures quick emergency replacements.
 |  |
 |  |
