Product Size:
Technology Parameter:

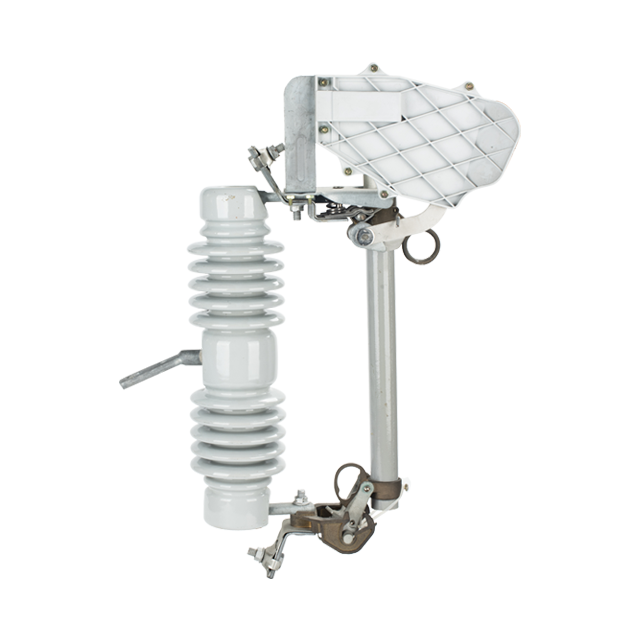

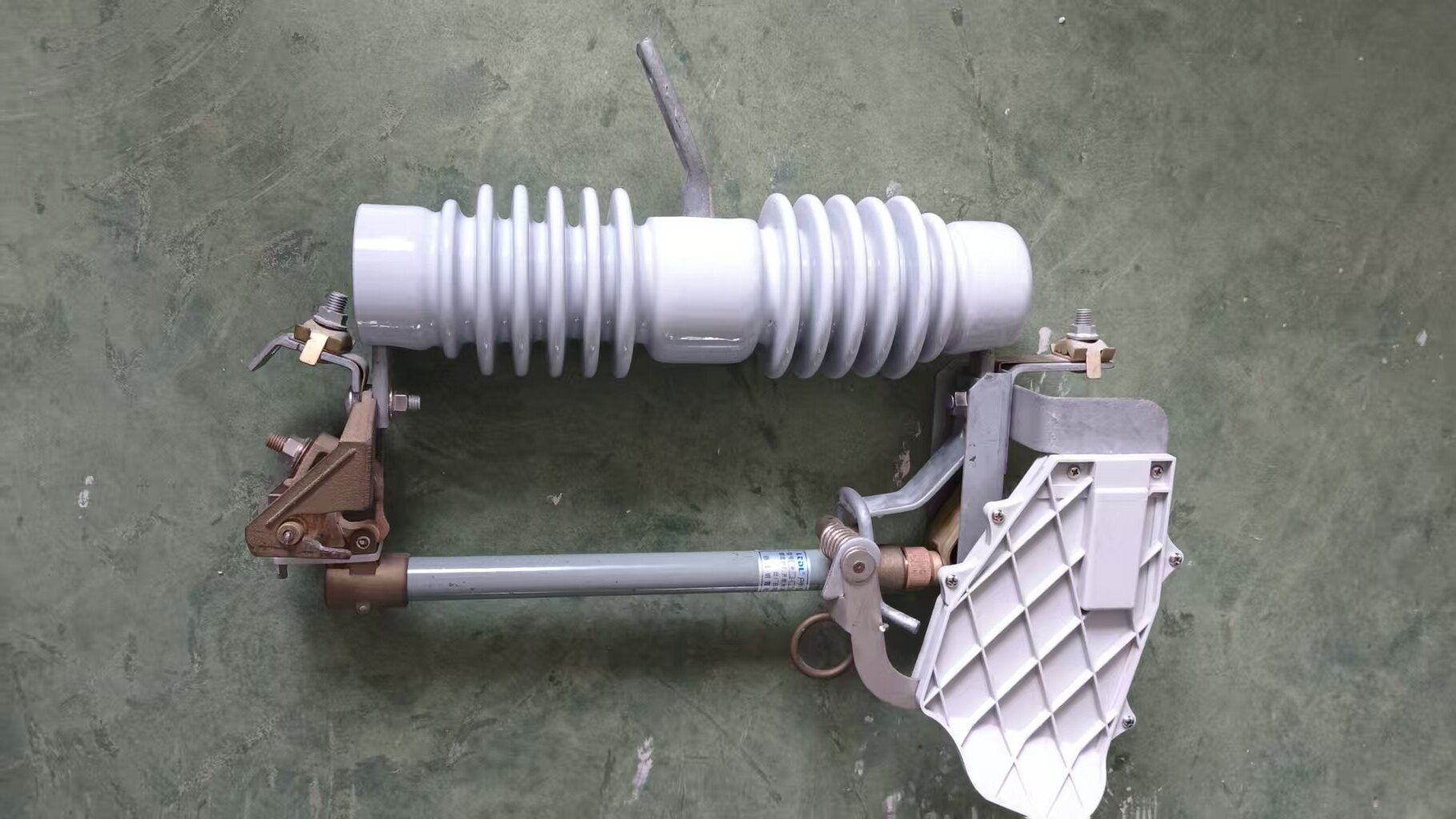

Product Name: Porcelain Fuse Cutout ( is also named Ceramic Drop Out Fuse, Ceramic Fuse Cutout)
Product Type: RW10-11F-100A
Body - porcelain
Maximum Design Voltage: 17.5KV
Rated voltage: 11kv
Rated current: 100A
Interrupt Capacity(Breaking current): 10kA
Impulse voltage (BIL): 110kV
Power frequency withstand voltage: 42kV
Leakage distance: 372mm
Weight: 8.5kgs

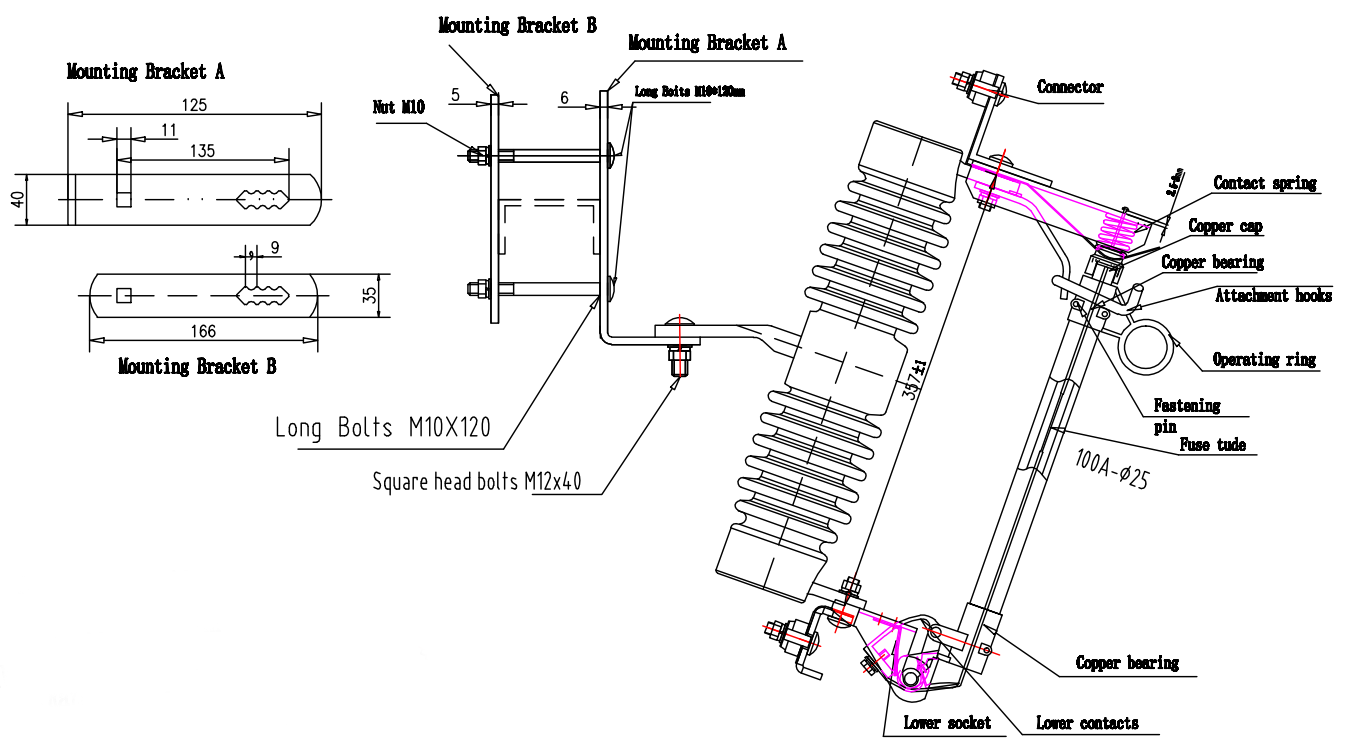

Dimensions: 520x370x135mm
1. Product Overview:
This 11kV, 100A Drop Out Fuse is a critical overcurrent protection device designed for medium-voltage distribution networks. Featuring a porcelain insulator, a creepage distance of 372mm, and an integrated arc quenching chamber, it ensures reliable interruption of fault currents while enhancing safety and durability in outdoor environments.
2. Construction
Fuse Base:
Mounted on a crossarm or pole structure, equipped with robust porcelain insulators.

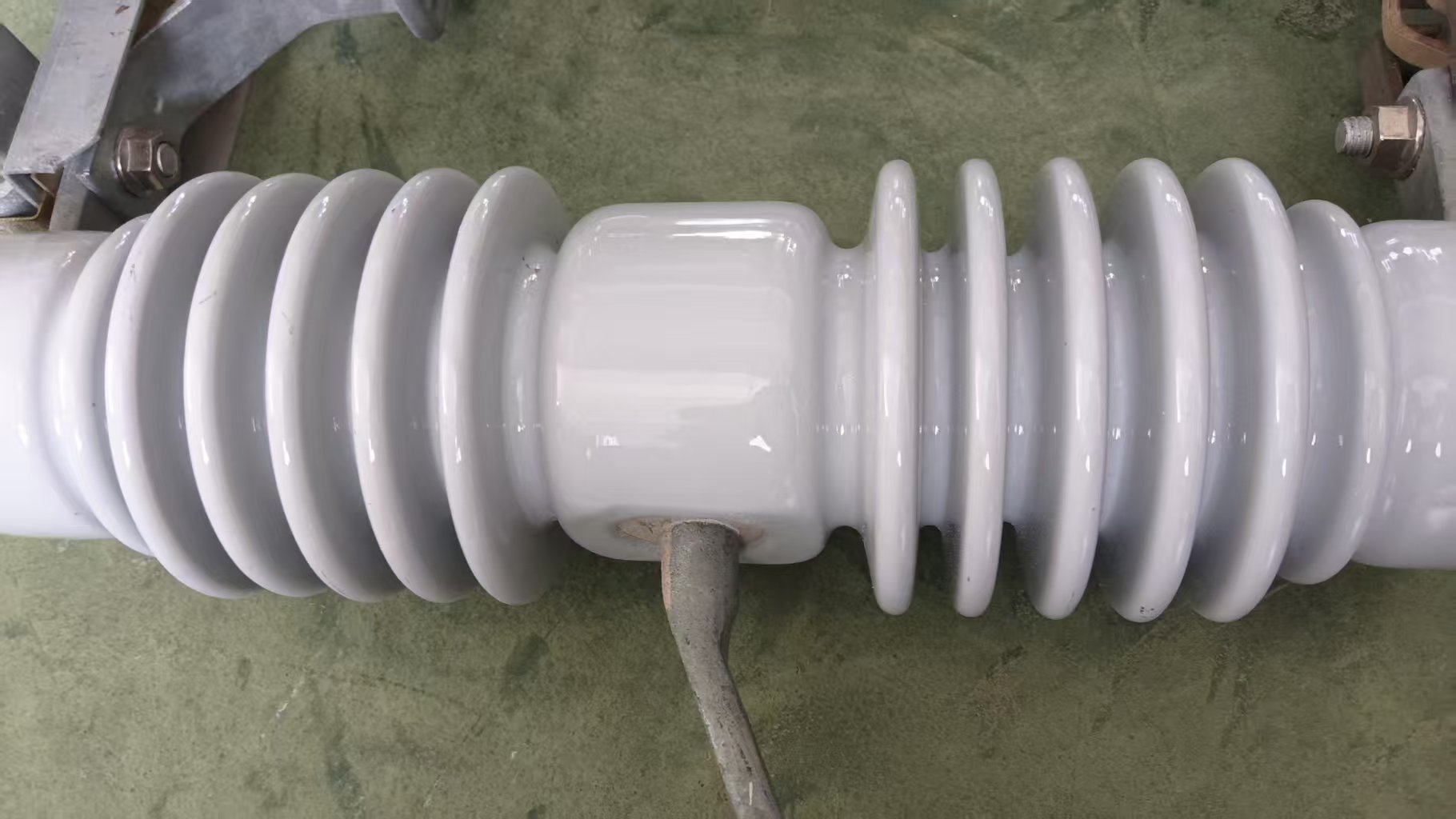

Porcelain Insulator:
Provides high mechanical strength, weather resistance, and electrical insulation. The 372mm creepage distance prevents surface leakage currents in polluted or humid conditions (e.g., coastal/industrial areas).

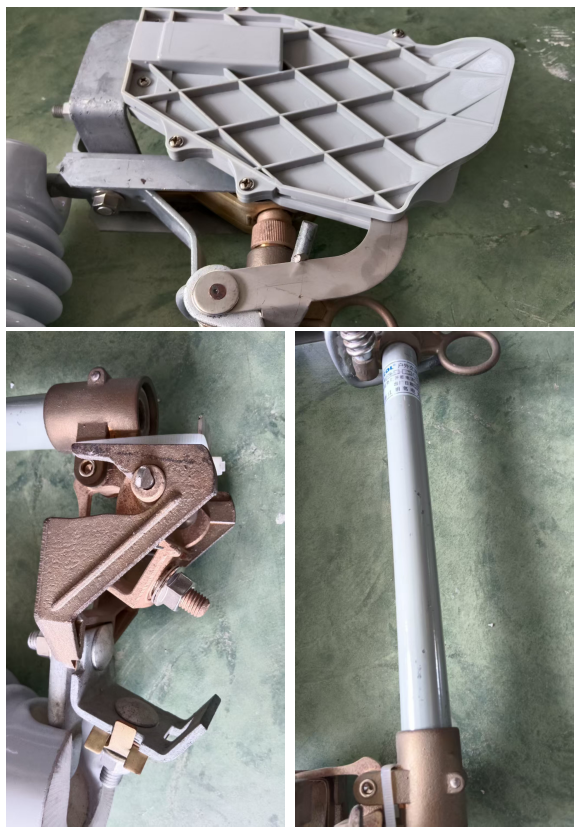

Fuse Carrier (Housing):
Holds the fuse element and arc quenching chamber. Pivots downward ("drops out") upon operation for visual fault indication.
Fuse Element:
A calibrated alloy wire/tube designed to melt at specific overcurrent thresholds.
Arc Quenching Chamber (Mounted on Carrier):
Key Component:A cylindrical enclosure lined with high gas-generation materials (e.g., fiberglass-reinforced polymer) surrounding the fuse element.
3. Function & Operation
Normal Conditions:
Current flows uninterrupted through the fuse element.
Overcurrent/Fault:
The fuse element melts, creating an electric arc.
Arc Interruption Process:
1. Arc Initiation: The arc forms within the quenching chamber.
2. Gas Generation: Chamber lining vaporizes, releasing deionizing gases (H₂, CO) under high pressure.
3. Arc Extinction: Gases cool and split the arc into segments, rapidly increasing resistance to quench it within milliseconds.
4. Drop-Out:The carrier releases, visibly disconnecting the circuit.
4. Key Features & Advantages
Arc Quenching Chamber:
-Critical Role:
- Rapid Arc Suppression: Limits arc duration to <10ms, preventing equipment damage.
- Containment: Prevents arc plasma from escaping, protecting nearby components.
- Voltage Withstand:Prevents restrikes by cooling gases, ensuring full interruption.
- Enhanced Safety: Reduces risk of fires or insulator flashovers.
- Performance: Enables reliable interruption up to the rated 100A fault current.
Overall Design Advantages:
- High Creepage (372mm): Exceeds standard requirements (e.g., IEC 60273) for polluted environments.
- Porcelain Insulator: Resists UV, thermal cycling, and mechanical stress.
- Drop-Out Mechanism: Clear visual fault indication for quick maintenance.
- Maintenance-Friendly: Simple replacement of fuse carrier.
5. Applications
- Primary Protection:
Transformers (11kV/400V), capacitor banks, feeders in rural/urban distribution networks.
- Isolation:
Sectionalizing overhead lines or isolating faulted branches.
- Environments:
Ideal for coastal, industrial, or high-humidity zones due to extended creepage distance.
- Renewable Integration:
Protecting solar/wind step-up transformers.
6. Why the Arc Quenching Chamber is Indispensable
Without the chamber, arcs could:
- Sustain for 100ms+, causing insulator cracking or wildfires.
- Trigger phase-to-phase faults via plasma expansion.
- Fail to interrupt inductive currents (e.g., transformer magnetizing currents).
The chamber ensures safe, reliable operation at the full 100A rating, especially vital for 11kV systems with high fault levels.
